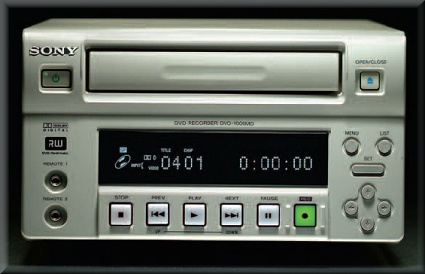

| Sony's DVD Recorder For Medical Imaging. |
 |
Put it to work in your imaging lab or operating roomBuilding on Sony’s proven track record in product design and innovation, Sony introduces a medical DVD recorder unlike any other – the DVO- 1000MD model designed specifically for medical videorecording. Combining user-friendly operation with highly intelligent DVORECOVERY™ and DVOFAST™ features, this recorder is the DVD authority you’ll want to put to work in your imaging lab or operating room. DVORECOVERY Feature – Built-in for reliable video recovery A built-in 80 Gig hard drive enables the DVO-1000MD model to record video simultaneously on the hard drive and on the DVD+RW disc. The DVORECOVERY feature allows you to recapture video from the hard drive in the event of unexpected power failure or if you forgot to print the images before you shut down your printer. In addition, if you need to make a referral copy, you can simply duplicate a video session from the hard drive. With the DVORECOVERY feature on your side, your video is kept safe and intact. DVOFAST Feature – Faster work speed for faster workflow To help keep the workflow moving, the recorder’s unique DVOFAST feature makes it possible to eject the DVD in less than two minutes after recording, requiring no disc finalization. Compared to the industry standard 5 to 15 minute wait time, this less than two-minute turn-around is a dramatic time saver for imaging technicians. Advanced sounds and images for medical applications Capturing images with the utmost picture clarity is an essential criteria of medical image recording. To achieve that high level image quality, the DVO-1000MD recorder employs MPEG-2 video compression, and for excellent |
| sound reproduction, records audio signals in the Dolby® Digital Stereo
format. What mode are you in? The DVO-1000MD recorder provides ample recording time – up to three hours on a single disc. Three recording modes are available, depending on the picture quality and recording duration required: * In HQ Mode, CBR (Constant Bit Rate) encoding is used DVD+RW Media Format The DVO-1000MD model adopts the DVD+RW format, which is approved by the DICOM Media Interchange Committee, and is an established DVD format offering re-write capability on affordable DVD+RW media. This feature provides playback compatibility with many DVD players, including standard consumer models. Find it fast For the ultimate convenience, the DVO recorder offers +/- 3 times playback from the front panel. Using an optional wired remote control (SVRM-100A), +/-10 times normal speed playback is available with an easy-to-use Jog/Shuttle operation. An additional +/- 30 times normal speed playback is possible when the recorder is connected to medical equipment via RS232C protocol, which Sony provides at no additional charge to software developers. Multiple playback modes make the DVO recorder ideal in a teaching application when video clips need to be viewed repeatedly. The recorder offers: |  |

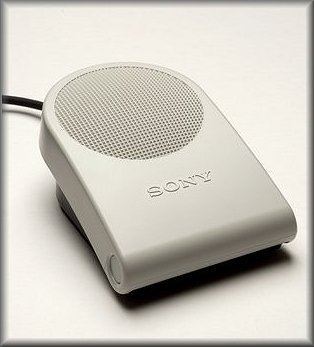

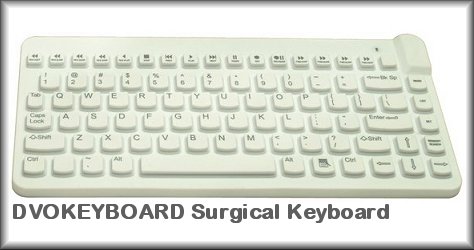

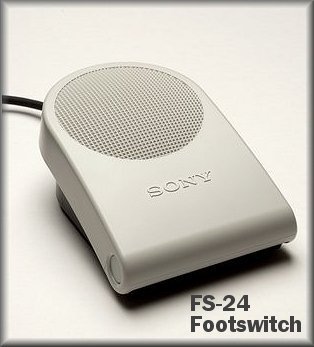

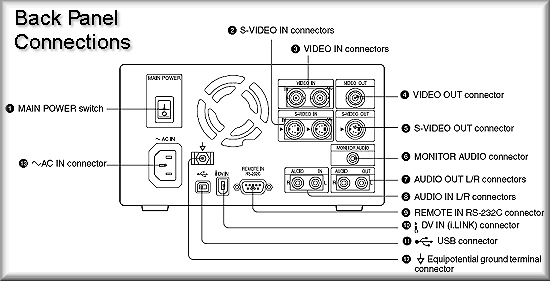

 | Index recording allows you to set “indexes” to images of interest by pressing the pause button during recording or enable automatic indexing with pre-determined intervals. With this feature, information can be quickly accessed by title or chapter. Legacy remote controls supported: The DVO recorder utilizes all remotes that were compatible with the SVO-9500MD S-VHS medical grade recorder. SVRM-100A and FS-20 models are fully supported. Patient Data Recording: Using an optional keyboard connected to the RS232C port, patient data up to 2KB per title can be recorded on the DVD+RW disk. Speed and Reliability are Built-in The many interfaces of DVO The DVO-1000MD recorder is equipped with a wide range of interfaces including analog composite, S-Video and analog audio I/Os, and an audio monitor output. An i.LINK® (DV) input is also provided to achieve high quality digital video recording with minimal signal degradation. Speed and reliability at work Put the DVO-1000MD medical DVD recorder to work in your imaging center or operating room and discover the speed and reliability you’ve been missing in a medical DVD recorder. |
|

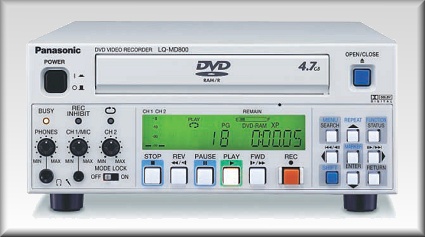

| Panasonic DVD Recorder For Medical Imaging. |
 |
Digital Video Recorder Using DVD-RAM/R...Easy Operation and Fast Searching This product complies to the medical electrical equipment standard with respect to electric shock, fire and mechanical hazards in accordance with IEC 60601-1, IEC60601-1-2 (EN 60601-1, EN 60601-1-2): (LQ-MD800P/LQ-MD800E) This product is also classified by Underwriters Laboratories Inc. as to medical electrical equipment with respect to electric shock, fire and mechanical hazards only in accordance with UL 2602-1. Control number 76KA. (LQ-MD800P only) High-quality images,High-quality audio recording The Hybrid VBR MPEG2 encoder means High-quality images. Dolby Digital means High-quality audio. By recording in the XP or SP modes, you can record in Linear PCM (stereo) for even higher quality audio. Maximum 8 hours recording You can record a maximum of 8 hours on one double-sided 9.4 GB DVD-RAM disc. (4 hours maximum continuous recording) Progressive output (NTSC only) Connect to a Progressive signal compatible monitor for even higher quality images. Remote control features This unit comes standard with USB, RS-232C, PAUSE REMOTE for control. Remote control the unit from a PC. NTSC/PAL switchable Select the signal type (NTSC/PAL) to play or record either type. Program search Press the SEARCH button to bring up a list of programs. Then Select the program to start play. Menu screens for simple operation |
| The menu screens offer easy-to-use icons for set-up and operation. Program Editing [RAM] You can divide and delete programs. Create play list of just those scenes you need and play them in succession. DVD-Video disc creation By finalizing a DVD-R, you can create a disc that complies with DVDVideo standards and then play it on compatible DVD players. Reliability Industrial grade electronic parts. Key features Direct recording into available space You do not have to find a place to start as you do with tapes. There is also no fear of recording over previous recordings. Send text data such as title You can use the RS-232C/USB cables to send text information to use as program titles. Auto-protect function Recorded images can be protected automatically. Repeat play, play list editing Just decide a length of time to repeat, then specify the end point during play to play a section repeatedly. You can also edit together the images you need into a play list. Play and edit on a PC Use PC application to edit and create backup discs. Small and light, power compatible between 100V and 240V Compact so you have freedom in placement. |  |
 | DVD-RAM disc features High reliability High capacity, removable SPECIFICATIONS General Power supply: AC 100-240 V, 50/60 Hz Current consumption: 0.51-0.28 A Recording System: DVD Video Recording Standards (DVD-RAM) - DVD Video Standards (DVD-R) Recordable discs: DVD-RAM 12cm (4.7 GB/9.4 GB) - DVD-R 12cm (4.7 GB) for General Ver.2.0 - DVD-R 12cm (4.7 GB) for General Ver.2.0 - 4x-SPEED DVD-R Revision 1.0 Recording Time: Maximum 4 hours (with 4.7 GB disc) - XP: Approx. 1 hour, SP: Approx. 2 hours, - LP: Approx. 4 hours Playable discs: DVD-RAM 12cm (4.7 GB/9.4 GB) - DVD-R 12cm (4.7 GB) for General Ver.2.0 - DVD-R 12cm (4.7 GB) for General Ver.2.0 - 4x-SPEED DVD-R Revision 1.0 Operating Temperature: 41 F-104 F (5 C-40 C) Operating Humidity: 10 %-80 % RH (no condensation) Dimensions: 8-7/16 (W) x 4-1/32 (H) x 14-3/8 (D) inch (214 W x 102 H x 365 D mm) Weight: 10.14 lbs (4.6 kg) |

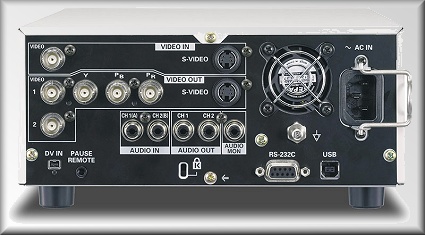

| Video Video System: NTSC color signal, 525 Lines, 60 Fields - PAL color signal, 625 Lines,50 Fields Recording system: MPEG2 (Hybrid VBR) Video In: BNC x 1 1.0 Vp-p 75, unbalanced - S-Video In (4P) x 1 - Y: 1.0 Vp-p 75, unbalanced - C: 0.286 Vp-p, burst level 75, unbalanced (NTSC) - C: 0.3 Vp-p, burst level 75, unbalanced (PAL) - DV-Input x 1 IEEE1394 Standard, 4pin (PAL/NTSC) Video Out: BNC x 2 1.0 Vp-p 75, unbalanced S-Video In (4P) x 1 - Y: 1.0 Vp-p 75, unbalanced - C: 0.286 Vp-p, burst level 75,unbalanced (NTSC) - C: 0.3 Vp-p, burst level 75, unbalanced (PAL) Component video output (BNC) (NTSC 480P/480I) (PAL 576I) - Y: 1.0 Vp-p 75, unbalanced - PB: 0.7 Vp-p 75, unbalanced - PR: 0.7 Vp-p 75 , unbalanced Audio Recording System: Dolby Digital 2ch, Linear PCM 2ch (XP/SP mode) Audio In: PHONO x 2, Reference Level, -10 dBv, 47k unbalanced - MIC In (mini jack) x 1 - 50 dBv, 3k unbalanced Audio Out: PHONO x 2,Reference Level, -10 dBv, 600 unbalanced - MONITOR Out (PHONO) x 1, -10 dBv, 600 unbalanced - Headphones Out (Stereo mini jack) x 1, Variable Level, Maximum, - 28 dBv, 8 unbalanced Remote: USB (Type-B connector) - USB Ver.1.1 (cable length: max. 3 m) - RS-232C (D-sub 9 pin) - PAUSE REMOTE (Stereo mini jack) Weight and dimensions shown are approximate. |
 |
|
