Pacific Northwest X-Ray Inc.

Color LCD Video Monitors.


       Tatung Value Series 15" Color TFT-LCD Monitor.


Stock #
Description
Your Price
TLM-1505
15" Value LCD Display.
$500.00
TWM-155
Wall Mount Kit.
$71.43
TRK-1703C
Rack Mount Kit.
$78.57
TPM-155
Pole Mount Kit.
$71.43


Tatung Corporation of America! MODEL: TLM-1505
Panel Type: 15" TFT color LCD panel
Viewable Size: 304.1mm (H) x 228.1mm(V)
Dot Pitch: 0.297mm x 0.297mm
View Angle: (h/v), -70°, +70° / -65°, +65°
Contrast Ratio: 500:1
Brightness: 250 cd/m²
Resolution: 1024x768 (XGA)
Response Time: 16ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: N/A
Composite Video: 1RCA input
S-video: 1 S-video input
DVI: N/A
VGA: 1 analog in (D-sub 15 pin)

AUDIO
Input: 1X Stereo
Output: N/A
Speaker: 1w x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 13.5"(w) x 11.7" (h) x 2.0"(d) (w/o base), 13.5"(w) x 13.2" (h) x 7.8"(d) (w/base)
Net weight: 8.0 lbs. w/base
Shipping weight: 10 lbs.
Power supply: 100-240 VAC




       Tatung Professional Series 15" Color TFT-LCD Monitor.


Stock #
Description
Your Price
TLM-1503
15" Professional LCD Display.
$657.14
TLM-1503W
15" Display w/Wall Mount Kit.
$657.14
TLM-1503R
15" Display w/Rack Mount Kit.
$657.14
TLM-1503P
15" Display w/Pole Mount Kit.
$657.14


Tatung Corporation of America! MODEL: TLM-1503
Panel Type: 15" TFT color LCD panel
Viewable Size: 304mm (H) x 228mm(V)
Dot Pitch: 0.297mm x 0.297mm
View Angle: (h/v), -70°, +70° / -60°, +65°
Contrast Ratio: 500:1
Brightness: 400 cd/m²
Resolution: 1024 x 768 (XGA)
Response Time: 16ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: N/A
Composite Video: 1 BNC input, 1BNC output
S-video: 1 S-video input, 1 S-Video output
DVI: N/A
VGA: 1 analog in (D-sub 15 pin)

AUDIO
- Input: 2 RCA inputs
- Output: 2 RCA loop through outputs
- Speaker: 1w x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 15.8"(w) x 13.0" (h) x 2.5"(d) (w/o base), 15.8"(w) x 16.1" (h) x 7.3"(d) (w/base)
Net weight: 11 lbs. w/base
Shipping weight: 14.0 lbs.
Power supply: 100-240 VAC

NOTE: Wall, Pole or Rack mounts now included!

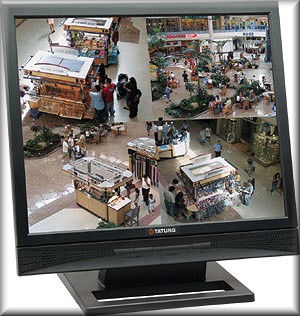

       Tatung Value Series 17" Color TFT-LCD Monitor.
Tatung Corporation of America! MODEL: TLM-1705
Panel Type: 17" TFT color LCD panel
Viewable Size: 338mm (H) x 270mm(V)
Dot Pitch: 0.264mm x 0.264mm
View Angle (h/v): -70°, +70° / -65°, +65°
Contrast Ratio: 500:1
Brightness: 300 cd/m²
Resolution: 1280x1024 (SXGA)
Response Time: 12ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: N/A
Composite Video: 1RCA input
S-video: 1 S-video input
DVI: N/A
VGA: 1 analog in (D-sub 15 pin)

AUDIO
Input: 1X Stereo
Output: N/A
Speaker: 1w x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 14.6"(w) x 13.5" (h) x 2.3"(d) (w/o base), 14.6"(w) x 15" (h) x 8.2"(d) (w/base)
Net weight: 11.0 lbs. w/base
Shipping weight: 14.3 lbs.
Power supply: 100-240 VAC




Stock #
Description
Your Price
TLM-1705
17" Value LCD Display.
$571.43
TWM-155
Wall Mount Kit.
$71.43
TRK-1703C
Rack Mount Kit.
$78.57
TPM-155
Pole Mount Kit.
$71.43




       Tatung Professional Series 17" Color TFT-LCD Monitor.
Tatung Corporation of America! MODEL: TLM-1703
Panel Type: 17" TFT color LCD panel
Viewable Size: 338mm (H) x 270mm(V)
Dot Pitch: 0.264mm x 0.264mm
View Angle: (h/v) -70°, +70° / -65°, +65°
Contrast Ratio: 500:1
Brightness: 430 cd/m²
Resolution: 1280 x 1024 (SXGA)
Response Time: 12ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: N/A
Composite Video: 1 BNC input, 2 BNC output
S-video: 1 S-video input, 1 S-Video output
DVI: N/A
VGA: 1 analog in (D-sub 15 pin)

AUDIO
Input: 2 RCA inputs
Output: 2 RCA loop through outputs
Speaker: 1w x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 15.8"(w) x 13.0" (h) x 2.5"(d) (w/o base), 15.8"(w) x 16.1" (h) x 7.3"(d) (w/base)
Net weight: 12.0 lbs. w/base
Shipping weight: 15.0 lbs.
Power supply: 100-240 VAC

NOTE: Wall, Pole or Rack mounts now included!




Stock #
Description
Your Price
TLM-1703
17" Professional LCD Display.
$842.86
TLM-1703W
17" Display w/Wall Mount Kit.
$842.86
TLM-1703R
17" Display w/Rack Mount Kit.
$842.86
TLM-1703P
17" Display w/Pole Mount Kit.
$842.86




       Tatung Value Series 19" Color TFT-LCD Monitor.


Stock #
Description
Your Price
TLM-1905
19" Value LCD Display.
$714.29
TWM-231
Wall Mount Kit.
$71.43
TRK-1903
Rack Mount Kit.
$78.57
TPM-231
Pole Mount Kit.
$71.43


Tatung Corporation of America! MODEL: TLM-1905
Panel Type: 19" TFT color LCD panel
Viewable Size: 376mm (H) x 301mm(V)
Dot Pitch: 0.294mm x 0.294mm
View Angle: (h/v), -80°, +80° / -60°, +75°
Contrast Ratio: 700:1
Brightness: 250 cd/m²
Resolution: 1280x1024 (SXGA)
Response Time: 8ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: N/A
Composite Video: 1RCA input
S-video: 1 S-video input
DVI: 1 digital input (TMDS 30 pin)
VGA: 1 analog in (D-sub 15 pin)

AUDIO
Input: 1X Stereo
Output: N/A
Speaker: 1w x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 16.5"(w) x 15.0" (h) x 2.4"(d) (w/o base), 16.5"(w) x 16.7" (h) x 8.6"(d) (w/base)
Net weight: 14.0 lbs. w/base
Shipping weight: 18.5 lbs.
Power supply: 100-240 VAC




       Tatung Professional Series 19" Color TFT-LCD Monitor.
Tatung Corporation of America! MODEL: TLM-1903
Panel Type: 19" TFT color LCD panel
Viewable Size: 376mm (H) x 301mm(V)
Dot Pitch: 0.294mm x 0.294mm
View Angle: (h/v), -80°, +80° / -60°, +75°
Contrast Ratio: 700:1
Brightness: 380 cd/m²
Resolution: 1280 x 1024 (SXGA)
Response Time: 8ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: N/A
Composite Video: 2 BNC input, 2 BNC output
S-video: 1 S-video input
DVI: 1 Digital input (TMDS 30 pin)
VGA: 1 analog in (D-sub 15 pin)

AUDIO
Input: 2 RCA inputs
Output: 2 RCA loop through outputs
Speaker: 1w x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 17.1"(w) x 15.4" (h) x 3.3"(d) (w/o base), 17.1"(w) x 16.9" (h) x 9.6"(d) (w/base)
Net weight: 18.0 lbs. w/base
Shipping weight: 22.4 lbs.
Power supply: 100-240 VAC

NOTE: Wall, Pole or Rack mounts now included!




Stock #
Description
Your Price
TLM-1903
19" Professional TFT-LCD Display.
$1,071.47
TLM-1903W
Wall Mount Kit.
$1,071.47
TLM-1903R
Rack Mount Kit.
$1,071.43
TLM-1903P
Pole Mount Kit.
$1,071.47

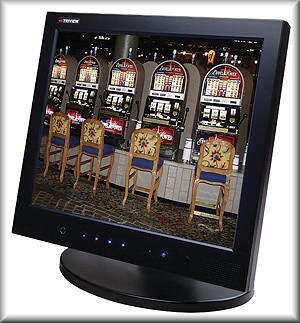

       Tatung Premium Series 19" Color TFT-LCD Monitor.


Stock #
Description
Your Price
TLM-1907
19" Premium LCD Display.
$1,178.57
TLM-1907W
Wall Mount Kit.
$1,178.57
TLM-1907R
Rack Mount Kit.
$1,178.57
TLM-1907P
Pole Mount Kit.
$1,178.57


Tatung Corporation of America! MODEL: TLM-1907
Panel Type: 19" TFT color LCD panel
Viewable Size: 376mm (H) x 301mm(V)
Dot Pitch: 0.294mm x 0.294mm
View Angle: (h/v) -80°, +80° / -60°, +75°
Contrast Ratio: 700:1
Brightness: 450 cd/m²
Resolution: 1280 x 1024 (SXGA)
Response Time: 8ms
Display Colors: 16.2 million

VIDEO INPUT/OUTPUT
Component Video: Y-Cr/Pr - Cb/Pb (480i & 480P)
Composite Video: 2 BNC input, 2 BNC output
S-video: 1 S-video input, 1 S-Video output
DVI: 1 digital input (TMDS 30 pin)
VGA: 1 analog input (D-sub 15 pin)

AUDIO
-Input: 2 RCA inputs
-Output: 2 RCA loop through outputs
-Speaker: 1W x 2 embedded
Scanning frequency: NTSC: 15,750 Hz +/- 500Hz / 60Hz, PAL: 15,625Hz +/- 500Hz/ 50Hz
Operating temperature: 0° -40°C
Storage temperature: -20° -60°C
Dimensions: 17.2"(w) x 15.4" (h) x 3.3"(d) (w/o base), 17.2"(w) x 16.9" (h) x 9.7"(d) (w/base)
Net weight: 13.6 lbs. (w/o base) | 18 lbs. (w/base)
Shipping weight: 23 lbs.
Power supply: 12VDC power adaptor (100-240 VAC for adaptor)

Additional benefits:
- 3D comb filter/de-interlace/CTI
- Noise reduction/edge smoothing/PIP
- 4:3 aspect ratio for video
- 5:4 aspect ratio for VGA

NOTE: Wall, Pole or Rack mounts now included!
