Monochrome Video Printers.

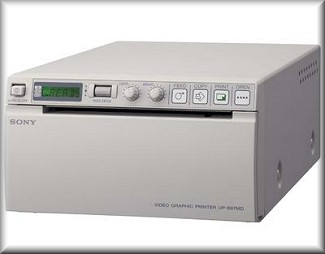

Sony Model UP-897MD Monochrome Video Printer.

The Sony UP-897MD black and white video graphic printer is designed specifically for use with medical diagnostic equipment, such as ultrasound systems. The UP-897MD packs power in a small chassis. High quality, photo-like prints are output in just approximately 2.0 seconds. The UP-897MD is extrememly small and light weight. For additional convenience the UP-897MD adds a jog dial to the front panel for easy operation. Ideal for: Ultrasound printing Smaller and lighter by 12% compared to the 895 series printer User-friendly controls on front panel with addition of jog dial High quality, photo-like prints in approximately 2 seconds Uses the same media as the UP-895 series printers: UPP-110S/5, UPP-110HD, UPP-110HG Printing Method: Direct Thermal Printing Thermal Head: Thin film thermal 1280 dots Resolution: 325 DPI Gradations: True 256 gray balance Effective Pixels: EIA 1280 dot x 508 lines, CCIR: 1280 dot x 608 lines

Memory: 10 Frames Print Speed: Approximately 2.0 seconds (High Speed Mode) Input/Output: Video In: BNC, CCIR or EIA composite video signal, 1.0, Vp-p, 75½ / high impedance selectable Video Out: BNC, Loop-through or E to E selectable Remote terminal: Stereo Mini-jack Power Requirements: 100 to 240 V AC, 50/60Hz, 1.5A to 0.8A Dimensions: 154mm x 88mm x 240mm (WHD) ( 6 1/8 x 3 1/2 x 9 1/2 inches – WHD) Weight: Approximately 2.6kg (5lb. 12 oz) Safety Standards: UL60950-1 Listed + CSA C22.2 No. 60950-1 + UL60601-1 Listed + CSA No. 60601-1 Supplied Accessories: AC Power Cord, Operation Manual(CD ROM), BNC Video Connecting Cable, Thermal Head Cleaning Sheet UPP-110HG Media (1Roll) Media: (Not Included:) UPP-110HG High Gloss Paper, UPP-110HD High Density Paper, UPP-110S/5 Standard Paper Optional Accessories: FS-20 Wired foot switch, RM-91 Remote thumb button

Stock # Description Your Price UP-897MD Black & White A6 Video Graphic Printer Replaces UP-D895 $878.57

Sony Model UP-895MD Monochrome Video Printer.

PRINTER, BLACK AND WHITE VIDEO GRAPHIC The UP-895MD black and white video graphic printer is designed specifically for use with medical diagnostic equpment, such as ultrasound systems; to provide high quality black and white images in less than four seconds. The UP-895MD prints in both standard and sides modes, features a worldwide power supply (100-240V) and provides compatibility with both NTSC and PAL signals. Features 1280 dot density for high-resolution black and white prints

International compatibility for EIA (525 lines) and CCIR (625 lines) Worldwide power supply (100-240V) Multiple print modes for both standard and side printing High gloss "monitor-like" quality prints with the UPP-110HG media (one roll included) Hard copy prints in less than four seconds Media choices include Standard, High Density and Glossy New compact and lightweight design EN60601-1 & UL-2601-1 listed Conveniently located function switches

Stock # Description Your Price UP-D895 B/W Digital Printer DISCONTINUED. Model UP-897MD replaces this unit. See above. $Call RM-91 Optional Remote Control $41.66 UPP-110S/5 Box, High Quality Printing Paper, 10 rolls per box. $83.29 UPP-110HD Box, High Density Printing Paper, 5 rolls per box. $86.43 UPP-110HG Box, High Glossy Printing Paper, 5 rolls per box. $87.21

Sony Model UP-960 Monochrome Video Printer.

VIDEO GRAPHIC PRINTER, SONY, BLACK & WHITE The UP-960 is a full page black and white video graphic printer that produces high resolution, hard copy images in 10 seconds. The printer's features make it ideal for medical black and white applications such as ultrasound, mobile c-arm, and cardiac cath lab. Features: Excellent print quality and contrast due to true 256 gray scale gradations UL2601-1 listed for integration into medical environments Worldwide power and video signal compatibility built into one model 10 second print speed Use in traditional video or X-ray applications with the user selectable aspect ratio of 3:4 or 1:1 Specifications: Printing Method: Thermal Graphic printing Thermal Head: 1280 elements Gradation: 256 gradations of gray scale Printing Paper Size: 210mm width (Roll)

Stock # Description Your Price UP-960 High Resolution B/W Video Printer $2,675.66 UPP-210HD High Density Printing Paper (Box of 5 rolls) $226.43 UPP-210SE High Quality Printing Paper (Box of 5 rolls) $143.57

Printing Time: 10sec/150mm(NTSC) Inputs: Composite video (BNC) Outputs: Composite video (BNC loop through) External Control: Remote 2 (Stereo mini) for optional remote control unit RM-91 or foot switch FS-20 Power Requirements: 100V to 240V, 50/60Hz (Worldwide) Dimensions: (WxHxD): 316mm x 132.5mm x 305mm (12.4" x 5.2" x 12.0") Weight: 23 lb. Safety Standards:UL1950 Listed, CSA C22.2 No. 950 LTL2601-1, CSA C22.2 No. 601.1 GS, GM Supplied Accessories: UPP-210HD AC Power Cable Operation Manual BNC Cable Cleaning Sheet Optional Accessories: RM-91 Remote Control Unit FS-20 Foot Switch UPP-210HD High Density Printing Paper (Box of 5 rolls) UPP-210SE High Quality Printing Paper (Box of 5 rolls)

Sony Model UP-980 Monochrome Video Printer.

PRINTER, BLACK & WHITE DUAL SCAN VIDEO GRAPHIC The UP-980 is a full page black and white dual scan video graphic printer that produces high quality hard copy images in 10 seconds. The Dual Scan feature allows the printer to sync up to any 15.75kHz or 31.5kHz composite signal. The UP-980's new optional blue transparency media produces high quality film-like transparencies. These and other printer features make the UP-980 ideal for medical black and white applications such as ultrasound, mobile c-arm, and cardiac cath lab. Features

New optional Blue Transparency media for high quality cost effective film type prints. Dual Scan feature allows printer to sync up to 15.75kHz or 31.5kHz composite signal. Excellent print quality and contrast due to true 256 gray scale gradations. Front panel LCD display allows easy adjustment of unit without monitor. Multiple pictures on one sheet capability (one, two, four, six) UL2601-1 for integration into medical environments. Worldwide power and video signal compatibility built into one model. Fast 10 second print speed.

Stock # Description Your Price UP-980 B/W Multiscan Video Graphic Printer $4,223.86

---
