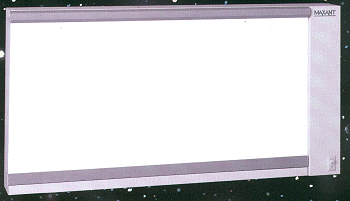

       Maxant Mini-Techline Viewboxes.


Maxant Technologies! Flexible Viewing Area.
  • The illuminator designed for small film formats including podiatry and ultrasound.
  • Uniquely designed viewing area handles three 8 x 10 or two 10 x 12 film formats.
  • Continuous viewing area provides an even light distribution throughout viewing box.

  • Safety.
  • Units are UL and CSA Listed and meet all hospital, clinic, and other construction safety requirements and standards.

  • Light Source.
  • Light placement, coupled with reflective interior, provides optimum light distribution throughout entire viewing area.
  • The Mini-Techline light output is designed for numerous modalities except Mammography. For further information concerning Mammography illuminators, see our Mammo-Lume webpage.

  • Baked Enamel Inner Finish.
  • Provides even top-to-bottom, side-to-side reflective surface illumination.
  • Eliminates "hot spots" and minimizes eye strain.

  • TECH-GRIP, Roller Gravity film holding system.
  • Engineered design provides maintenance free reliability and performance.
  • Accommodates all film thickness' and requires no field adjustment.
  • The TECH-GRIP is medium GRAY in color on a white illuminator background to conform to most medical facility decor's.


  • Acrylic Viewing Panel.
  • Shatterproof translucent panel provides even light distribution.
  • Panel provides a smooth uniform and flawless surface for clear reading.
  • Panel's sanitary surface is easily cleaned.

  • Slim, Steel Body Construction.
  • Slim 3-1/8" depth is visually unobtrusive, clean and simple.
  • Recessed units mount flush into walls of standard thickness.
  • Durable steel construction is resistant to damage.
  • No exposed screws, hardware or sharp edges.

  • Baked Enamel Outer Finish.
  • Sanitary, easy to clean surface resists harsh cleaning materials frequently used in hospital environments.
  • Chip and wear resistant.
  • Standard hospital white color provides cosmetic compatibility with hospital facility decor.

  • Engineered and designed to be easily serviced!
  • Both surface and recessed mounted fixtures can be serviced without removing them from their installed position.
  • Plexiglas panels are easily removed for cleaning and lamp replacement without the requirement of tools.
  • Each unit has a side wireway panel which is easily removed for access to internal components.

  • Handles and Non-Skid feet (optional)
  • Provides added portability, versatility and convenience.





  • Stock #
    Mounting
    Viewing Area
    Length
    Height
    Shipping Wt.
    Your Price
    MTS-01
    Surface
    24"x12"
    27"
    14"
    23
    $190.15
    MTS-11
    Surface
    2x24"x12"
    27"
    28"
    44
    $377.54
    MTR-01
    Recessed
    24"x12"
    27.75"
    14.75"
    26
    $229.85
    MTR-11
    Recessed
    2x24"x12"
    27.75"
    28.75"
    49
    $449.54


    Stock #
    Description
    Your Price
    MaxantHGP
    Hospital Grade Plug
    $26.69
    HF
    Handle & Non-Skid Feet
    $40.00


    Specifications:

    Physical...

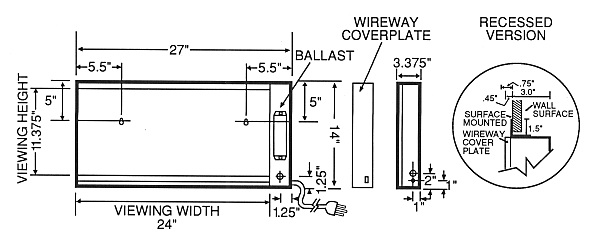

  • Cut Sheets / Dimensional specifications for the MTR models (recessed) are available for both the single tier, as well as the two-tier models.

  • Electrical...
  • 110-124 Volt - 60Hz - 0.8 Amps/Per Panel.
  • Grounded chassis with 3-wire, 7ft cord and NEMA 5-15, 2-pole, 3 wire grounded plug.
  • No hazardous electrical parts are exposed when the diffusing panel is removed for lamp replacement
  • Each MINI-TECH panel contains (2) F20T12/D or Equivalent lamps.
  • Rapid start ballast which does not require an external starter.
  • UL and CSA approved.
  • Thermal protected - the ballast will disconnect from the powerline in the event of an over temperature condition!
  • Low leakage.
  • Stelf start reliability in excess of 10,000 cycles.
  • Anticipated 50,000 hours of operating life.
  • Supression of conducted radio frequency transmission into power lines.

  • Construction...
    Each unit consists of all welded steel construction. Multi-panel units are manufactured as an integral assembly. Roller gravity film holding system accommodates all film thickness variations. Will not scratch or tear film. Requires no field adjustment. Open sides facilitate the viewing of oversized film. The diffusing panel is shatter resistant, U.L. recognized translucent thermoplastic. A two-position rocker switch which provides ON/OFF lighting for each panel. The switches are located on the right side of the illuminator.
