Pacific Northwest X-Ray Inc.

       Clear Lead® Mobile Radiation Shields.


Wolf! X-Ray Corporation
Clear Lead® Mobile Radiation Shield
Wolf's Clear Lead® Mobile X-Ray Barriers provide a full-body shield for the doctor or radiologic technologist. The optically clear, lead-plastic panel provides exceptional visibility. The shatter resistance and durability of Clear Lead® ensures long life under heavy use. The Clear Lead window rests on an opaque lower panel and smooth-rolling casters allow the barrier to be easily positioned or moved from room to room.

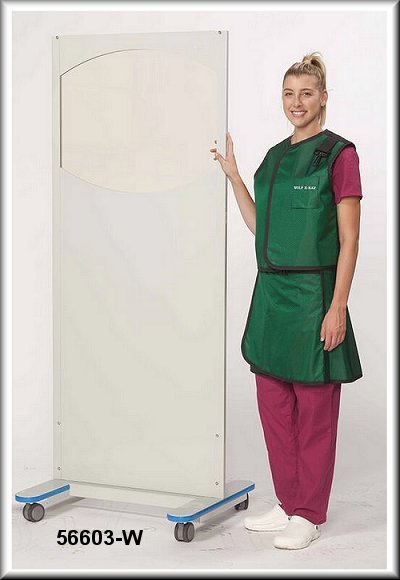

30 Inch Wide Clear Lead® Barriers
The 30 inch Clear Lead® barrier can safely protect one or two people. The upper Clear Lead section provides 0.5mm lead equivalency protection. The lower opaque panel provides 0.8mm LEP.

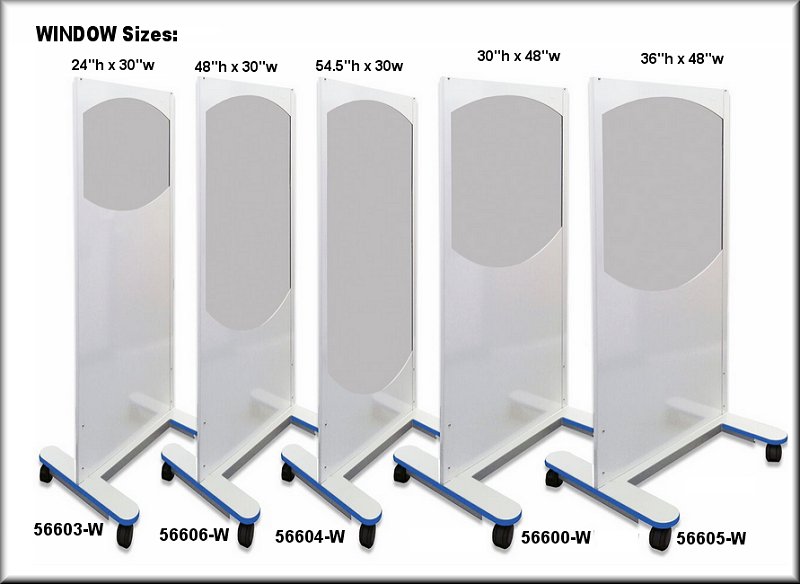

The 30 inch barriers are offered in 3 window heights: 24", 48" and 54.5".

30 Inch Barrier Specifications:
Overall Size: 75"H x 31"W x 25" D.
  • 56603-W: Lead Plastic Panel is 24"H x 30"W
  • 56606-W: Lead Plastic Panel is 48"H x 30"W
  • 56604-W: Lead Plastic Panel is 54.5"H x 30"W

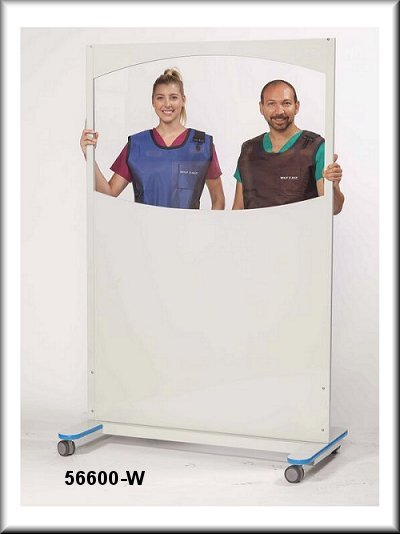

  • 48 Inch Wide Clear Lead® Barriers
    The 48 inch Clear Lead® barrier can safely protect two or three people.
    The 56600-W Barrier has a 30"H x 48"W Clear Lead plastic panel that provides 0.5mm LEP and an opaque lower panel that provides 0.8mm LEP.
    The 56605-W Deluxe Barrier has a 36"H x 48"W Clear Lead plastic panel that provides 1.0mm LEP and a lower opaque panel that provides 1.5mm LEP.

    48 Inch Barrier Specifications:
    Overall Size: 75"H x 49"W x 25" D
  • 56600-W: Lead Plastic Panel is 30"H x 48"W
  • 56605-W: Lead Plastic Panel is 36"H x 48"W


  • Stock #
    Description
    Overall
    Size
    Window Size /
    Window Lead Equiv.
    Lower Opaque
    Panel Lead Equiv.
    Your Price
    56603-W
    30" Wide Clear Lead
    Plastic Barrier
    75"H x 31"W x 25" D
    24"h x 30"w / 0.5mm
    0.8mm
    $4,201.62
    56606-W
    30" Wide Clear Lead
    Plastic Barrier
    75"H x 31"W x 25" D
    48"h x 30"w / 0.5mm
    0.8mm
    $6,834.85
    56604-W
    30" Wide Clear Lead
    Plastic Barrier
    75"H x 31"W x 25" D
    54.5"h x 30"w / 0.5mm
    0.8mm
    $7,854.00
    56600-W
    48" Wide Clear Lead
    Plastic Deluxe Barrier
    75"H x 49"W x 25" D
    30"h x 48"w / 0.5mm
    0.8mm
    $8,430.69
    56605-W
    48" Wide Clear Lead
    Plastic Deluxe Barrier
    75"H x 49"W x 25" D
    36"h x 48"w / 1.0mm
    1.5mm
    $10,105.08

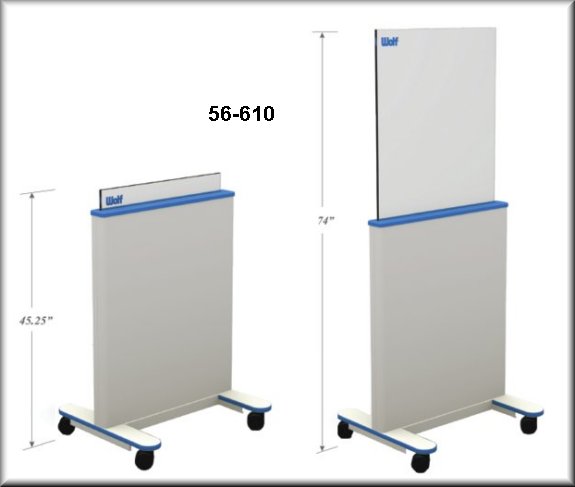

           Mobile Adjustable Height Clear Lead Acrylic Barrier.
    Wolf! X-Ray Corporation
    Mobile Adjustable Height Clear Lead Acrylic Barrier

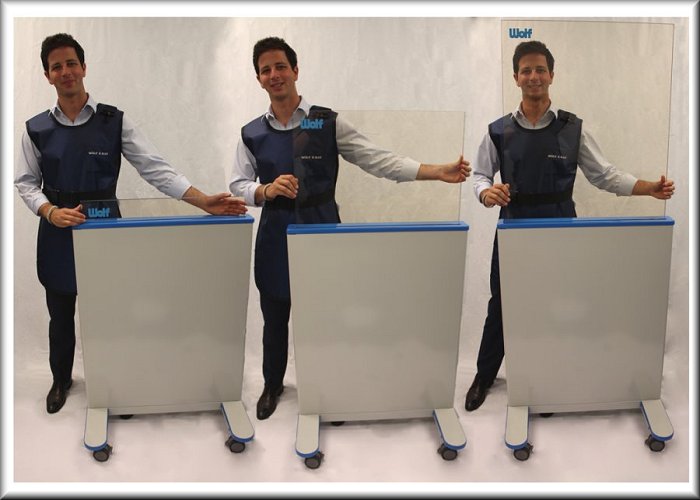

    The Adjustable Height Barrier allows the user to position the clear Pb at any level between 45 1/2" and 68". By use of an internal counter balancing mechanism, the clear pb can be moved up or down with minimum effort.

    The overall width of the base is 31" and provides 1.0mm Pb equivalent protection.
    The upper 28" wide clear Pb provides 0.5mm lead equivalent protection.

    Strong yet lightweight, this barrier is convenient to use for dozens of applications and the 7" legs and casters facilitate easy transport ensuring you will get maximum usage.

    When completely closed the barrier is easy to store.


    Stock #
    Adjustable
    Height
    Overall
    Base Width
    Clear Acrylic
    Width
    Lead Equiv.
    Protection
    Your Price
    80-610
    45 1/2" to 68"
    31"
    28"
    Clear Upper is 0.50mm
    Lower is 1.0mm
    $7,764.29

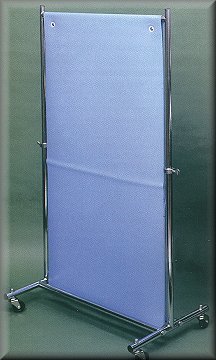

           Wolf's Adjustable Mobile Shield.


    Wolf! X-Ray Corporation
    Designed to protect the patient against scattered radiation, the Wolf Mobile Shield is ideal for chest, skull and spine radiography. The Screen is made of lead vinyl with a .50mm lead protection and is attractively covered on both sides by easy to maintain vinyl. It is 24" (60cm) wide and is adjustable with a minimum height of 24" (60cm) and a maximum height of 48" (122cm). It's mounted on a durable chrome finished frame and rolls easily on 4 conductive casters.

    Specifications: 48"H (open) x 30"H (closed) x 26"W x 18"D (at base).
    Approx. shipping weight: 30 lbs.


    Stock #
    Description
    Your Price
    23111
    Mobile Frame w/"Apron" Shield
    $855.15
    23112
    Replacement "Apron" Only
    $541.00
