Pacific Northwest X-Ray Inc.

       Powerful Rare-Earth Handheld Magnet.


Stock #
Your Price
MBM-LG
$720.00


Techno-Aide!
Screening Magnet

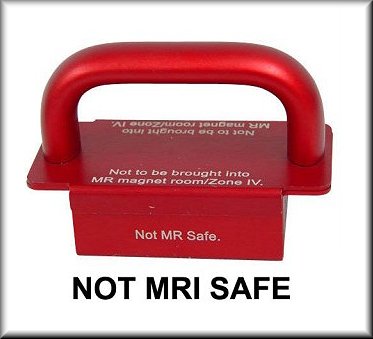

This Powerful Rare-Earth Handheld Magnet is ideal for Magnetic Resonance Screening/Sites to screen patients and devices for possible ferromagnetic properties prior to entering MRI environments Zones III and IV.

Magnetic Resonance (MR) professionals must be able to screen patients, devices, and implants for possible ferromagnetic properties prior to allowing them to enter clinical and research magnetic resonance imaging (MRI) environments and magnet rooms (so-called, "Zone III and IV" regions). It has also been proposed that all MR sites have ready access to powerful, more than 1,000 gauss hand held magnets that they can use for such testing purposes. This magnet has been specially designed by experienced clinical and research MR practitioners and leaders in the field of MR safety to meet the needs of busy MR sites.

The more than 3,200 gauss magnetic field of the magnet exerts a sufficiently powerful magnetic field to sensitively test even weakly ferromagnetic objects. The magnet itself is composed of a neodymium - a so-called rare earth magnet - that permits it to lose its strength extremely slowly, at a rate of a 1% loss every 100 years. Product is Red with Silver lettering. Magnetic Field Strength: Surface strength greater than 3,200 gauss, while remaining at 1,200 gauss approximately 2cm distance from the surface.

Dimensions: 3.5" height by 3" width by 5.5" length

NOT MRI SAFE. Not to be used in an MRI Room!
SHIPS at 2#.




       MRI SuperWand Metal Detector.
Techno-Aide!

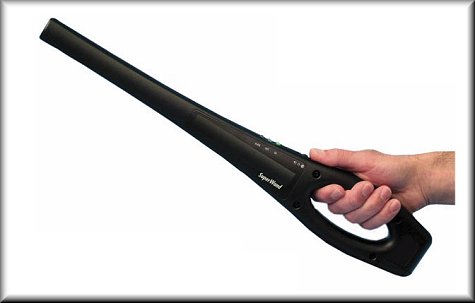

MRI Super Wand Metal Detector
This metal detector gives radiologists and patients opportunity to make sure they are free of any metallic objects.

The SuperWand's exclusive 360 degree detection field provides uniform sensitivity and tip pinpointing to detect weapons and other metal objects with extreme accuracy.

From U.S. airports to sporting events, the SuperWand is the hand-held of choice for today's security screener.
  • Optimum sensitivity with automatic retuning - never needs adjusting Pre Screening MR Patients
  • Accurate detection of all ferrous, non-ferrous and stainless steel weapons, contraband and other metallic objects
  • Elongated profile offers 360 degree detection coverage plus tip pinpointing for easy scanning from head to foot
  • Easy and convenient to use with one-touch button and three-color LED lights
  • Clear audible or Silent / Vibrate LED alarm signal
  • Rugged injection molded construction including structurally isolated coil for added impact absorption
  • Large 9.5" scan area allows thorough scanning with minimum passes
  • Ergonomically designed grip fits comfortably in virtually every hand
  • Easy ON / OFF battery cover
  • 9V battery (included) operation
  • Power switch and LEDs positioned for easy access and high visibility

  • NOT MRI SAFE. Not to be used in an MRI Room!




    Stock #
    Your Price
    MBM-SW
    $383.00

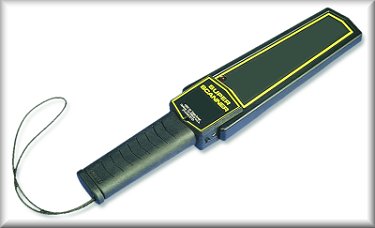

           MRI Safety Metal Detector.


    Stock #
    Your Price
    MBM-MD
    $325.00


    Techno-Aide!

    Save patients and staff from embarrassing and hazardous situations. Features large scan surface w/sensitivity reduction switch.

  • Operating Temperatures: -35°F (-37°C) to 158°F (70°C)
  • Humidity: To 95% non-condensing
  • Operating Frequency: 93 kHz
  • Audio Frequency: 2kHz Warble
  • Tuning: Automatic
  • Indicators Audible Speaker
  • LED Alert Lights:
  • Green: Power ON
    Amber: Battery LOW
    Red: ALARM condition
  • Controls:
  • Power switch (ON / OFF)
    Interference Elimination Momentary Switch
  • Battery: Single 9 volt battery provides up to 60 hours of normal operation. Optional NiMH rechargeable battery provides up to 20 hours on each 12-hour recharge
  • Dimensions:
  • Width: 3.25" (8.3 cm)
    Thickness: 1.625" (4.13 cm)
    Length: 16.5" (42 cm)
  • Unit Weight: 17.6 oz. (500 g)
  • Shipping Box: 19" x 15" x 14" (3 lbs.)

  • NOT MRI SAFE. Not to be used in an MRI Room!
