Pacific Northwest X-Ray Inc.

       PNWX X-Ray Patient Step / Ankle Board.
pnwx!
A "Patient step" used for a wide variety of x-ray exams where the technician needs to elevate their patient to produce the needed x-ray exam.

Features...

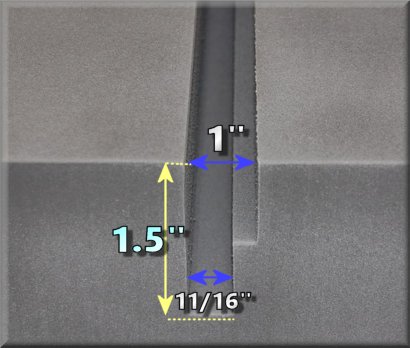

  • Slot in center of the top surface allows for either film or CR cassette support in the vertical direction. (Can be custom sized to work with DR Plates as well.
  • Heavy-duty support surfaces will support patients up to 500lbs.
  • Easy to keep clean and sanitary - entire surface is covered with white colored Formica® brand laminate. (Custom colors/designs available!)
  • Available in 1, 2, or 3 step models. Each step raises your patient 9". Choose the height that works best with your x-ray equipment!
  • Your choice of no, 1, or 2 handrails in either fixed or adjustable height versions.

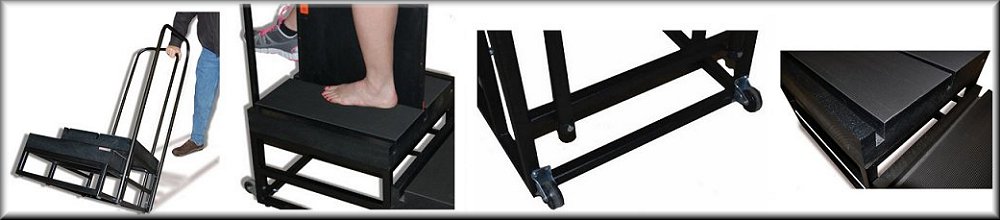

    • - Single hand rail models feature the handrail at the back side (opposite the steps) and are designed to not only be used as a patient support, but also to tip the unit onto a pair of fixed wheels and moved easily about much like a hand-truck. (See Photos)
    - Adjustable/Removable hand-rail and No-handrail models can be tipped onto their backside (with removable handrails removed) onto the set of four articulating wheels make for easy storage and movement. (See photos)
  • Sturdy steel support railings with optional adjustable railing height.
  • Anti-skid surface on top and step surfaces.
  • Top surface is 20" X 24". Each Step is 9" High and 9" Deep. Total surface height is determined by the number of steps. Single Step is 9" high, Two-Step is 18" high, Three-Step is 27" high.
  • Current product delivery lead time: 4-6 weeks.
  • Warranty: One year parts/labor. Customer is responsible for shipping to/from pnwx for warranty service.




    • Additional Images


    Stock #
    Number of Steps
    Total Height
    (Patient Elevation above floor)
    Type of Hand Rails
    Number of Hand Rails
    Position of Hand Rail(s)
    Castors/Type/Location/Usage & Operation
    Overall Dimensions
    (Less Handrails)
    Length X Width X Height
    Ships VIA?
    Your Price
    0903-11
    1
    9"
    None
    0

    None
    20" X 24" X 9"
    UPS
    $583.00
    0903-12
    1
    9"
    Fixed Height/Removable
    1
    Back
    None
    20" X 24" X 9"
    UPS
    $783.00
    0903-20
    2
    18"
    None
    0

    4 Swivel/Backside/Tip-Up Wheel Away
    29" X 24" X 18"
    Truck
    $1,083.00

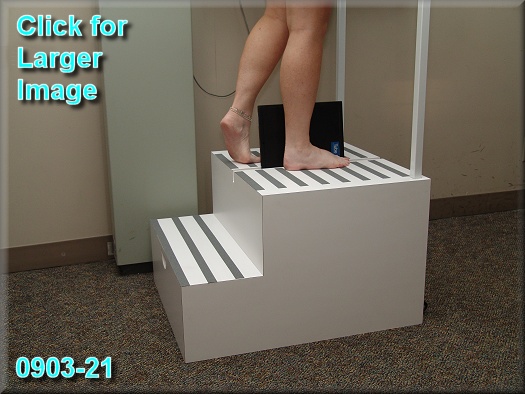

    0903-21
    2
    18"
    Fixed Height/Removable
    1
    Back
    2 Fixed/Backside/Hand-Truck Operation
    29" X 24" X 18"
    Truck
    $1,283.00
    0903-22
    2
    18"
    Adjustable Height/Removable
    1
    Back
    4 Swivel/Backside/Tip-Up Wheel Away
    29" X 24" X 18"
    Truck
    $1,533.00
    0903-23
    2
    18"
    Fixed Height/Removable
    2
    Sides (Left & Right)
    None
    29" X 24" X 18"
    Truck
    $1,483.00

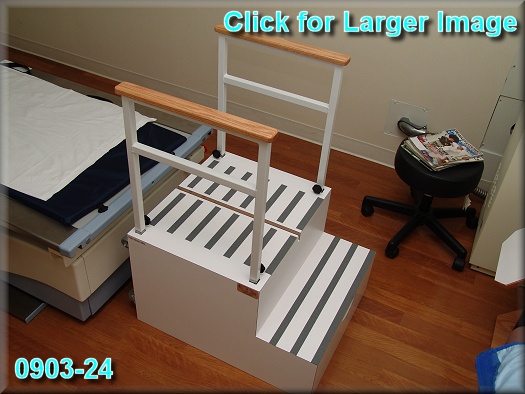

    0903-24
    2
    18"
    Adjustable Height/Removable
    2
    Sides (Left & Right)
    4 Swivel/Backside/Tip-Up Wheel Away
    29" X 24" X 18"
    Truck
    $1,983.00
    0903-30
    3
    27"
    None
    0

    4 Swivel/Backside
    38" X 24" X 27"
    Truck
    $1,833.00
    0903-31
    3
    27"
    Fixed Height/Removable
    1
    Back
    2 Fixed/Backside/Hand-Truck Operation
    38" X 24" X 27"
    Truck
    $2,033.00
    0903-32
    3
    27"
    Adjustable Height/Removable
    1
    Back
    4 Swivel/Backside/Tip-Up Wheel Away
    38" X 24" X 27"
    Truck
    $2,283.00
    0903-33
    3
    27"
    Fixed Height/Removable
    2
    Sides (Left & Right)
    None
    38" X 24" X 27"
    Truck
    $2,233.00
    0903-34
    3
    27"
    Adjustable Height/Removable
    2
    Sides (Left & Right)
    4 Swivel/Backside/Tip-Up Wheel Away
    38" X 24" X 27"
    Truck
    $2,733.00
