Pacific Northwest X-Ray Inc.

       Pro-Project Pro-Dent CT 161 Phantom.


Pro-Project! Pro-Dent CT 161 - for testing CBCT and DVT units according to DIN 6868-161.

Phantom for acceptance and constancy testing of 3D function of dental Cone-Beam CT, Dental Volume Tomography (DVT) and 3D imaging devices according to DIN 6868-161 and QS-RL.

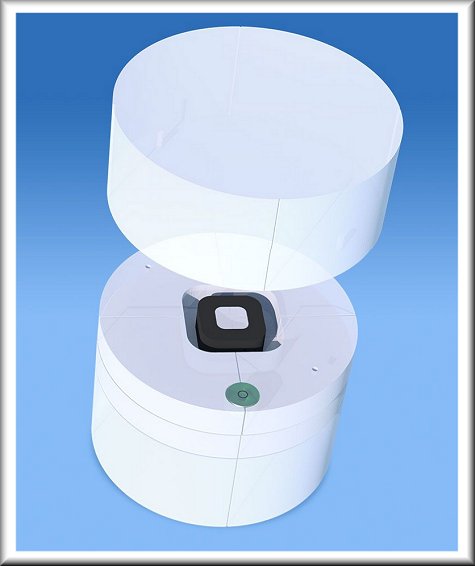

Technical data: (can be modified to customer specifications):
  • diameter: 160mm
  • 20mm thick main module containing:
    – test object containing equivalents of air, soft tissue and bone
    – positioning markers
    – bubble level
  • 20mm, 50mm and 60mm thick PMMA modules with positioning aids
  • test stand with a table for placing the phantom in the test position
  • folding base for test stand positioning on the X-ray unit’s chair
  • convenient, portable case for storing and transporting the phantom

    • Product features: Complies with: – DIN 6868-161, – QS-RL, CE certified, Manual provides detailed guidelines for carrying out each test, results assessment and registration.

    Click to view larger graphic:


    Stock #
    Your Price
    01-401
    $1,518.00




           Pro-Project Pro-Dent CT mk II 3D Phantom.


    		Pro-Project! Pro-Dent CT mk II

    The new Pro-Dent CT mk II Phantom is a versatile quality control tool of dental Cone-Beam CT, Dental Volume Tomography (DVT) and other 3D imaging devices according to the Radiation Protection Report no 172 by SEDENTEXCT.

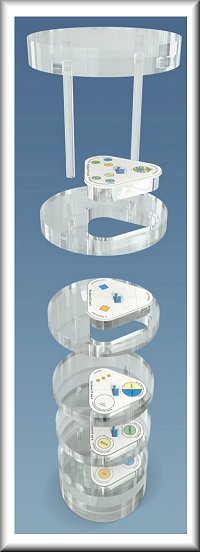

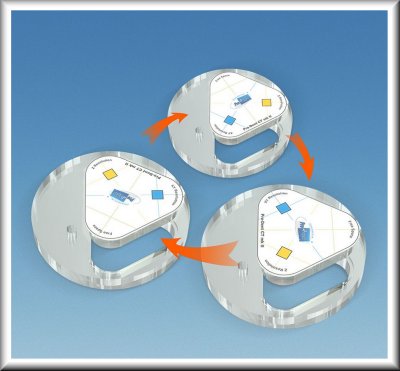

    The phantom consists of a main PMMA cylinder that houses modules with different test objects. Thanks to this design, you can perform tests with devices with a small FOV at different positions in the 160mm phantom.

    Technical data (can also be modified to customer specifications):
  • diameter: 160mm
  • made of PMMA (1.19 g/cm3)
  • total length: 170mm
  • noise / uniformity section:
  • uniform PMMA part of the phantom
  • geometric distortion section:
    - an array of 2.0 mm diameter, 3.0 mm long holes uniformly pitched at 10.0 mm intervals

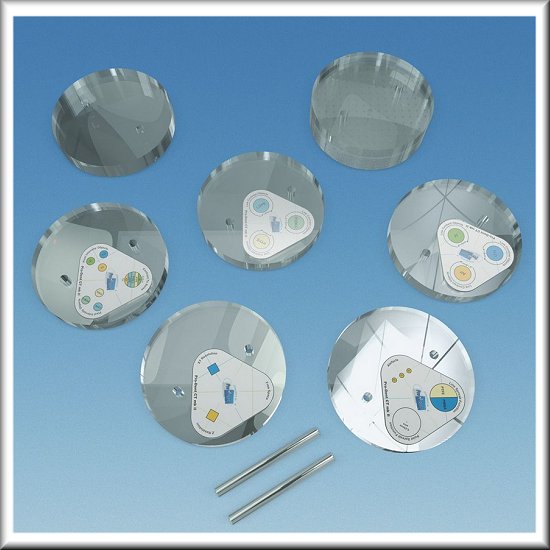

  • 5 layer modules section with modules containing:
    - Linear Spread Function (LSF) PTFE / PMMA interface
    - Point Spread Function (PSF) - 0.25 mm stainless steel wire in air
    - XY high contrast resolution (aluminum/polymer) - 1.0, 1.7, 2.0, 2.5, 2.8, 4.0, 5.0 LP/mm


    • - Z high contrast resolution (aluminum/polymer) - 1.0, 1.7, 2.0, 2.5, 2.8, 4.0, 5.0 LP/mm

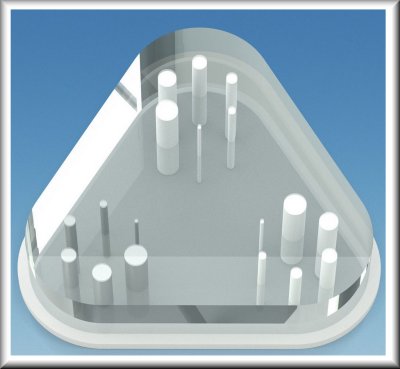

    - 6 low-contrast groups of 1.0, 2.0, 3.0, 4.0, 5.0, 6.0 mm rods made of: aluminum, PTFE, POM-C (delrin), PE-300, air and water emulating epoxy; background made of PMMA
    - 10 mm rods made of aluminum, PTFE, POM-C (delrin), PE-300, air and water emulating epoxy suspended in PMMA - pixel intensity / HU values samples
    - stacked 20mm diameter contrast-to-noise discs made of aluminum, PTFE, POM-C (delrin), PE-300 and air suspended in PMMA
    - three 5.0 mm diameter titanium rods embedded in PMMA - beam hardening artifacts
  • positioning aids on the outside surface of the phantom

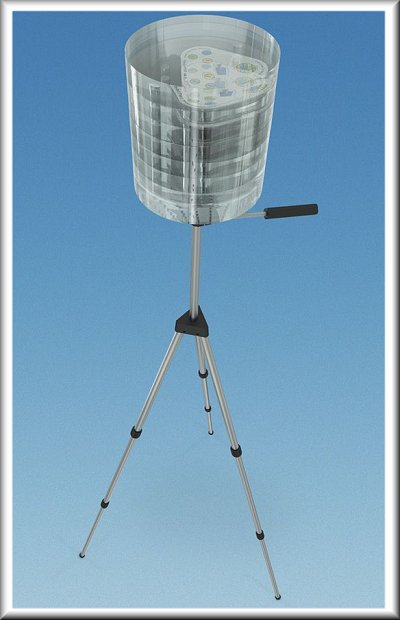

  • test stand with spirit level for accurate placing of the phantom in the test position
  • folding base for test stand positioning on the X-ray unit’s chair
  • convenient, portable case for storing and transporting the phantom


    • Product features:
    Complies with: – Radiation Protection #172 report by the SEDENTEXCT, – IEC 61223-3-4 and IEC 61223-3-5, CE certified, -the Manual provides detailed guidelines for carrying out each test, results assessment and registration.



    Stock #
    Your Price
    01-501
    $6,436.36
