Pacific Northwest X-Ray Inc.

       Comprehensive MRI Phantom.

Pro-Project! Pro-MRI - Versatile Phantom for QC according to ACR, AAPM and IPEM guidelines.

Phantom for comprehensive evaluation of critical imaging parameters of magnetic resonance imaging (MRI) in a time efficient manner. The phantom can be used for the measurement of absolute values for calibration purposes. However, its design is optimized for time efficient daily quality assurance too.

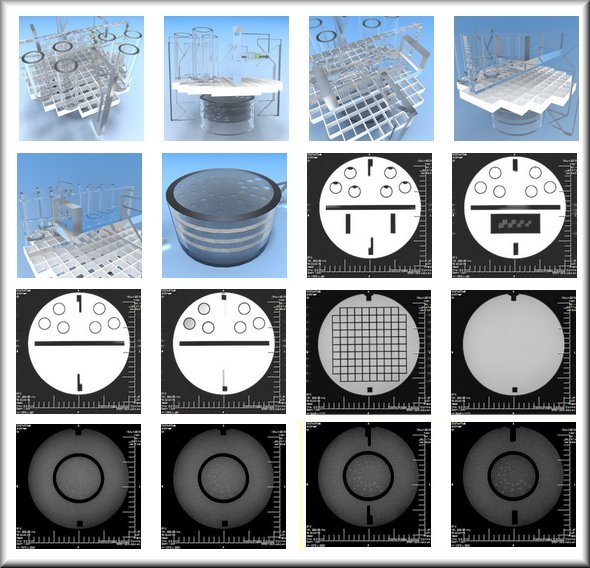

It can be used to measure:
  • Geometric Distortion
  • Spatial Resolution
  • Slice thickness and position
  • Interslice Gap
  • T1 and T2 values
  • Estimate of Image Bandwidth
  • Low Contrast Detectability
  • Image Uniformity
  • Signal-to-Noise Ratio (SNR)
  • Physical and Electronic Slice Offset
  • Point of reference
  • Bandwidth: water-fat shift

  • Click on each to see details:

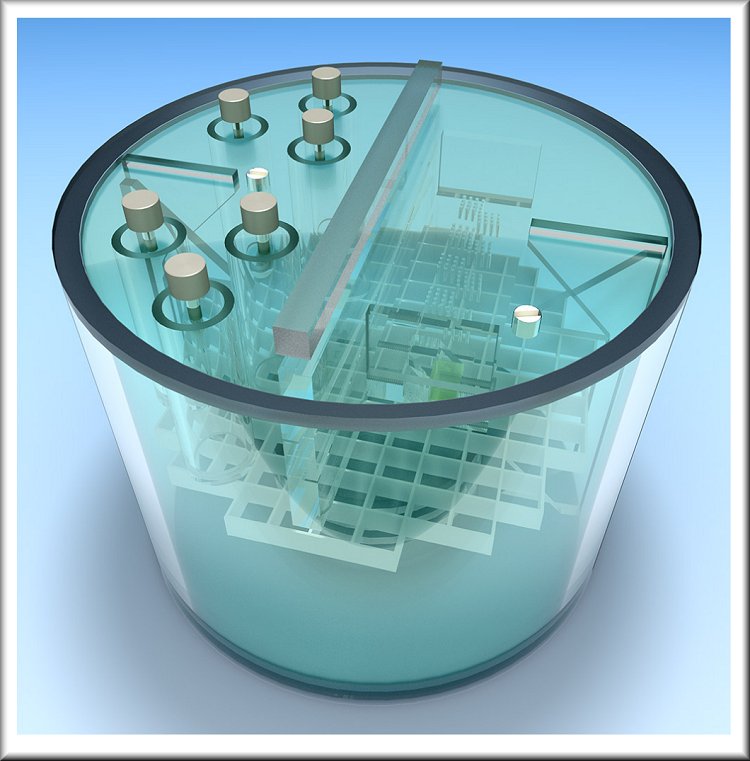

  • Outside cylinder diameter: 220mm (180mm)
  • Outside cylinder height: 150mm
  • Inside cylinder diameter: 204mm (173mm)
  • Inside cylinder height: 130mm
  • Filled with 10 mmol nickel chloride solution containing
  • Sodium chloride 45 mmol
  • T1 and T2 sample vials:
  • -6 cylindrical vials Ø19 x 41mm, refillable from outside, by default filled with 20 mmol nickel chloride and 15 mmol sodium chloride solution.
  • Resolution insert:
  • -Four matrices of holes, diameters: 0.8, 0.9, 1.0 and 1.1 mm, Spaces between the holes are equal to hole diameters, 2 small containers with water and fat for water-fat shift evaluation.
  • Slice Thickness Insert:
  • -180 x 46 x 10mm PMMA plate, 1mm wide and 5mm deep counter-descending slits on both sides, Slits form two ramps descending at 1:10 geometric distortion insert: 10 x 10 array of squares, 148mm on a side, 10mm thick
  • Low Contrast Insert:
  • -4 polycarbonate discs 0.05, 0.1, 0.15 and 0.2mm in thickness.
    -partial volume contribution of these sheets and filling solution produce contrasts: 1.4, 2.5, 3.6 and 5.1%.
    -each disc contains 12 groups of 3 holes arranged in spokes.
    -each spoke has the same diameter.
    -diameters range from 7.0 to 1.5mm (0.5mm step)
  • Four sets of paired 45° wedges are located on both sides of the phantom. The lower pairs are 30 x 30mm and the upper ones are 40 x 40mm. The distance between intersection points of the lower and upper pairs is 90mm

  • Available Optional Accessories: Heavy Duty Carrying Case.

    Click to see details:
    Complies with:
    –ACR MRI Accreditation Program.
    –IPEM Report 80 “Quality Control in MRI”, 1998.
    –AAPM Rep. 28 “Quality Assurance methods & phantoms for MRI”, 1990.
    –AAPM Rep. 34 “Acceptance testing of MRI systems”, 1992.
    –AAPM Rep. 100 “Acceptance & Quality Assurance procedures for MRI facilities”, 2010 CE certified the Manual provides detailed guidelines for carrying out each test, results assessment and registration.

    Stock #
    Your Price
    Pro-MRI - Versatile Phantom for QC-Outer Diam= 180mm
    according to ACR, AAPM and IPEM guidelines
    Optional Carrying Case. See 09-102
    Pro-MRI - Versatile Phantom for QC-Outer Diam= 220mm
    according to ACR, AAPM and IPEM guidelines
    Optional Carrying Case. See 09-102
    Pro-MRI-KIT, and 12 months Basic Software Subscription.
    6 removable vials option, with 6 extra vials (12 in total)
    Optional Heavy Duty Carrying Case for 09-101
