Pacific Northwest X-Ray Inc.

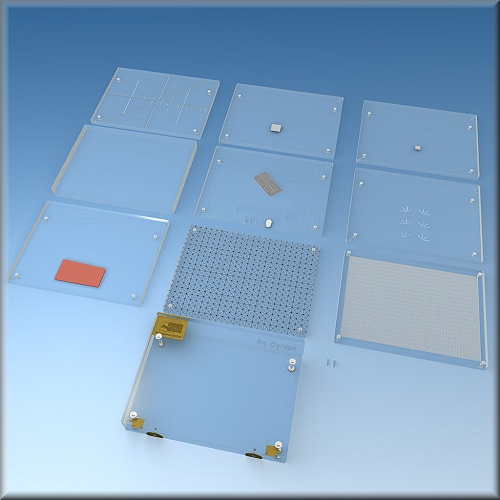

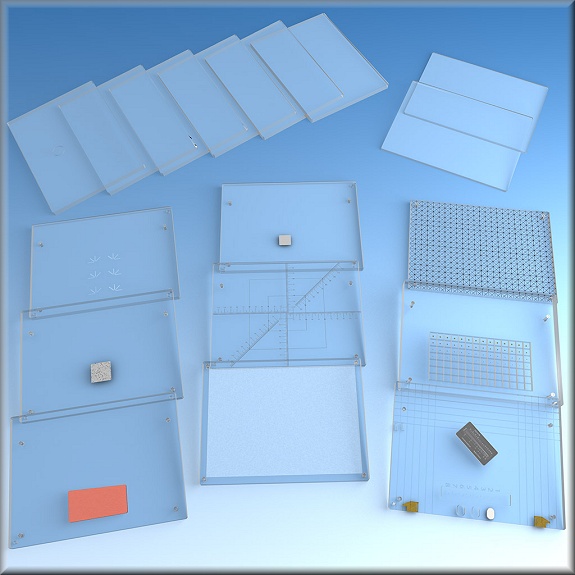

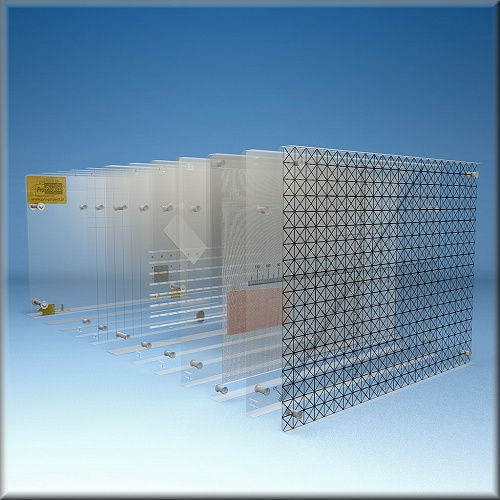

       Pro-DigiMAM Digital Mammography Test Phantom.


Pro-Project! This versatile phantom can be used for monitoring technical parameters of digital mammography imaging systems according to the requirements of the ”European Guidelines for Quality Assurance in Mammography Screening” and IEC 61223-3-2:
  • Optical density / luminance in the reference point.
  • Spatial resolution.
  • Threshold contrast visibility.
  • Contrast.
  • Effective radiation field.
  • Automatic exposure timer.
  • CNR, SNR
  • NPS
  • MTF
  • ghostingw
  • filaments
  • Artifacts Evaluation.
  • Geometric distortion check.
  • Contrast details.



  • Technical Data (can be customized to customers needs!)
  • Dimensions: 240 x 180 mm or 300 x 240 mm
  • Modular construction – different modules can be firmly placed on the main module.
  • Carrying case.

  • Product Features:
  • Complies with:
  • -IEC 61223-3-2
    -”European Guidelines for Quality Assurance in Mammography Screening”
  • Plus supplement
  • CE certified
  • Manual provides detailed guidelines for carrying out each test, results assessment and registration.

  • Main module: set of PMMA attenuation plates: 6x10mm thick and 2x5mm thick; one plate contains marking of the reference point.






    Stock #
    Description
    Your Price
    03-301
    Pro-DigiMAM: Main Module, set of homogeneous PMMA plates:
    6x 10mm thick and 2x 5mm thick; reference point marked
    $2,792.31
    03-304
    Pro-DigiMAM: Ghosting Module
    $500.00
    03-305
    Pro-DigiMAM: MTF module
    $535.00
    03-306
    Pro-DigiMAM: Filaments Module
    $550.00
    03-307
    Pro-DigiMAM: Artifact Mesh
    $550.00
    03-308
    Pro-DigiMAM: Distortion Module (mesh)
    $550.00
    03-309
    Pro-DigiMAM: Contrast Details module (with 7x14 gold discs matrix)
    $2,423.08
    03-310
    Pro-DigiMAM: resolution module (up to 20 LP/mm)
    $1,590.00
    03-311
    Pro-DigiMAM: CNR module
    $550.00
    03-312
    Pro-DigiMAM: distortion module (scales)
    $550.00
    03-313
    Pro-DigiMAM: Phantom (for digital mammography)
    contrast details gold discs - standalone kit
    $2,953.85
    03-314
    Pro-DigiMAM: spacers set
    $570.00
    03-315
    Pro-DigiMAM: noise evaluation module - aluminum plate
    $415.00
    03-316
    Pro-DigiMAM: compensation module
    $445.00
    03-317
    Pro-DigiMAM: Accreditation FF module
    $910.00
    03-318
    Pro-DigiMAM: Tomosynthesis modules
    $2,261.54
    03-319
    Pro-DigiMAM: Accreditation module
    $775.00
    03-320
    Pro-DigiMAM: Dynamic range module
    $560.00
    03-321
    Pro-DigiMAM: upgrade to 30x24cm
    $490.00







    Available Optional Modules


    Main Module: Set of PMMA attenuation plates: 6x10mm thick and 2x5mm thick; one plate contains marking of the reference point.
    CNR Module: 10mm thick module containing a 20 x 20 x 0.2mm aluminium filter, located 6 cm from the chest side.
    Contrast Detail Module: 20mm thick module containing gold (99.99%) discs organized in a 7x14 matrix (diameter x thickness). Discs have following diameters: 0.1, 0.25, 0.5, 0.75, 1.0, 1.5, 2.0mm and 14 thicknesses ranging from 0.03 to 2.0µm. Thickness accuracy: 1nm (0.001 µm), diameter accuracy 0.001mm (1µm)
    Ghosting Module: 10mm thick module containing a 30 x 30 x 0.1mm aluminum filter for a ghost test.
    Resolution and Geometry Module: 10mm thick module containing:
  • pattern for the line pair resolution evaluation (from 1,5 to 20,0 LP/mm) rotated 45°
  • 8 low contrast objects (ø 5.5mm and depth from 0.1mm to 0.45mm)
  • 3 objects of a different absorption level.
  • pattern for evaluation of the effective radiation field.
  • MTF Module: 10mm thick module containing a straight stainless steel edge accurate to ±2µm at a 3° angle.
    Artifact Evaluation Module: 10mm thick module containing a mesh for artifact evaluation.
    Filaments Module: 10mm thick module containing 6 groups of multi-directional filaments 0.40mm to 0.20mm in diameter.
    Dynamic Range Module: 10mm thick module containing Al step wedge with 14 steps from 0.0 to 5.2mm
    Geometry Distortion Module (scales): 10mm thick module containing a grid with scales.
    Geometric Distortion Module (mesh): 10mm thick module containing a wire mesh of horizontal, vertical and diagonal lines (45°)
    ACR Accreditation Module: 14mm thick module containing a wax insert like in Pro-MAM Accreditation (when used with 3x10mm plates from main module simulates 42 mm compressed breast of average glandular/adipose composition.)
    Full Field ACR Accreditation Module: 14mm thick module containing a wax insert like in Pro-MAM Accreditation FF (when used with 3x10mm plates from main module simulates 42 mm compressed breast of average glandular/adipose composition.)
    Noise Evaluation Module: 2mm thick aluminum plate 200x200mm.
    Spacers Sets: 180x15 or 240x15mm PMMA plates:

  • 4 pieces 10 mm thick,
  • 2 pieces 8 mm thick,
  • 2 pieces 5 mm thick,
  • 2 pieces 2 mm thick.
  • Compensation Module: set of 10 PMMA plates 40x20x2mm
