       Pro-Euro Comprehensive Mammography Test Phantom.

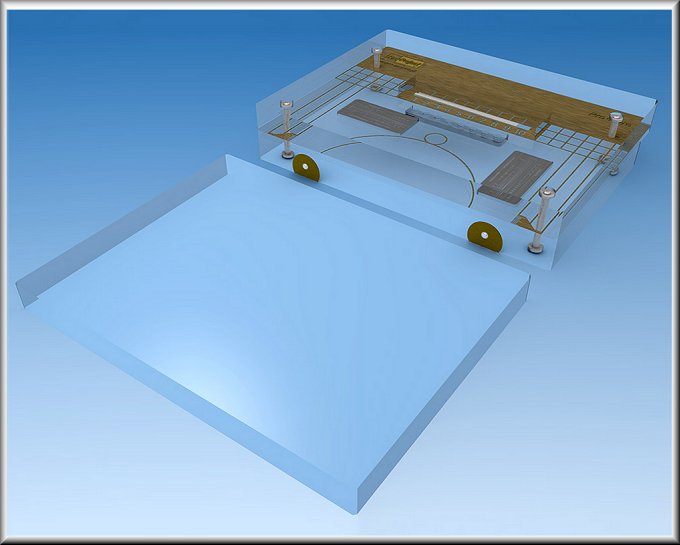

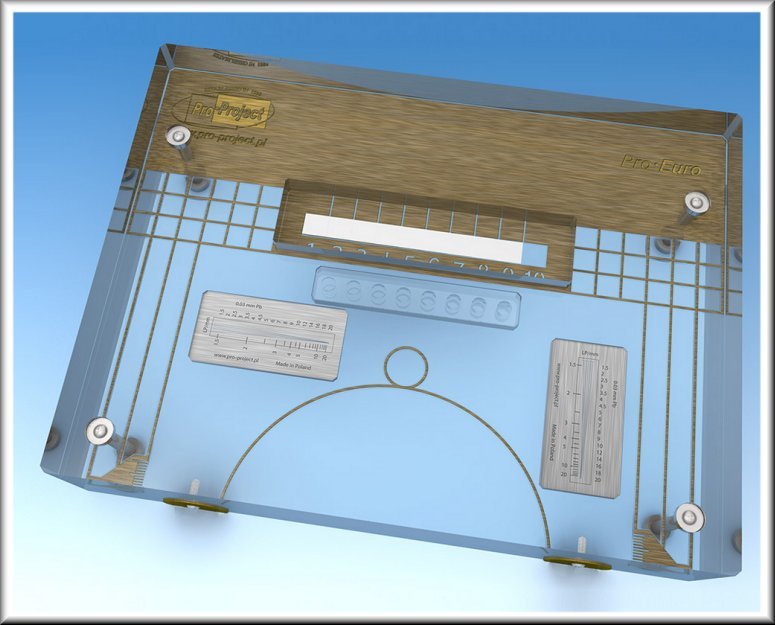

Pro-Project! The Pro-Euro Phantom (03-101) is used for monitoring technical parameters of mammography imaging systems according to the requirements of the European Guidelines for Quality Assurance in Mammography Screening and IEC 61223-3-2.

  • Optical density in the reference point
  • Spatial resolution
  • Dynamic range - image contrast
  • Threshold contrast visibility
  • Effective radiation field
  • Film Processing
  • Automatic Exposure Control


  • TECHNICAL DATA:
    Can be modified to customer specifications
  • Dimensions: 240mm x 180mm x 45mm (9.45" x 7.08" x 1.78")
  • Weight: 3kg (6.6#)
  • Additional 20mm PMMA Plate
  • Reference point (60mm from the thorax side)


  • Pattern for line pair resolution evaluation (from 1.5mm to 20.0LP/mm) perpendicular & Parallel to the thorax side
  • 10-step aluminum wedge
  • 8 Low contrast objects
  • Markings (Graduations) for assessment of the effective radiation field
  • Space covered with brass for sensitometric measurements
  • Area for the measuring chamber of the automatic exposure timer

  • PRODUCT FEATURES:
    Complies with:
  • IEC 61223-3-2
  • European Guidelines for Quality Assurance in Mammography Screening
  • CE Certified
  • Manual provides detailed guidelines for carrying out each test, results assessment & registration.

  • Click here to view details:

    Weight: 3kg (6.6#)


    Stock #
    Your Price
    03-101
    $2,700.00
