Pacific Northwest X-Ray Inc.

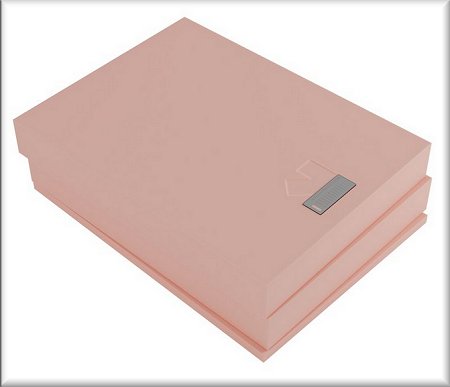

       Pro-MAM High Contrast Resolution Pattern.


Pro-Project! The Pro-MAM HCRP contains resolution pattern 5.0 - 20.0 LP/mm (13 groups).
This bar pattern can be positioned at 0, 90 and 45 degrees to allow assessment of resolution even with digital devices. The resolution pattern is embedded between the polycarbonate shielding (Model: Pro-Res MAM BarType1) to protect it from wear or damage. The phantom body consists of breast equivalent materials and features a cavity for the resolution pattern. This design enables consistent, reproducible positioning of the bar pattern at 4.5 cm above the breast support plate and 1 cm from the chest wall, centered laterally (as recommended by the American College of Radiology).

Technical data (can be modified to customer specifications):
  • dimensions: 6” x 4.5”
  • thickness: 2x 20 mm, 1x 5 mm
  • target: Pro-Res MAM BarType1 - resolution pattern 5.0 - 20.0 LP/mm (13 groups)

  • Other sizes upon request. Request pricing.

  • This phantom is designed as a combination of CIRS's 016A-BR12 and 016AW. It can also be placed at a 45 degree angle to help reduce interference between bar pattern and detector’s pixel array.


  • Product features: CE certified
    The manual provides detailed guidelines for carrying out each test, results assessment and registration.


    Stock #
    Description
    Your Price
    03-207
    Pro-MAM HCRP – High Contrast Resolution Phantom
    (adipose / gland tissues slabs and resolution pattern from 5 to 20 Lp/mm)
    $1,895.00

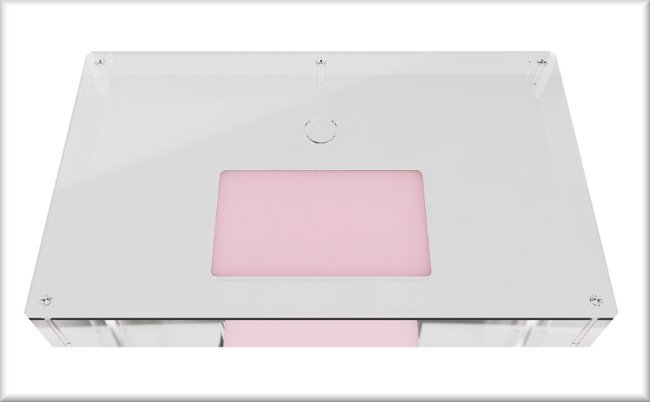

           Pro-MAM Accreditation Full Field Phantom.


    Pro-Project! Pro-MAM Accreditation FF – ACR accredited full field phantom for digital devices.

    This ACR accredited Full Field phantom was designed to test the performance of a digital mammographic system by evaluating the system’s ability to image small structures similar to those found clinically: micro-calcifications, fibrous structures in ducts and tumor-like masses. It is similar to the Pro-MAM Accreditation phantom, the main difference being the size: the FF (Full Field) version is larger and covers the entire image detector, thus eliminating scatter.

    Technical data (can be modified to customer specifications):
  • dimensions: 311.2 x 190.5 x 41.3 mm
  • simulates 42 mm compressed breast of average glandular / adipose composition (50% / 50%)
  • wax insert:
    – nylon fibrils diameters: 0.89, 0.75, 0.61, 0.54, 0.40 and 0.30 mm
    – microcalcifications: 0.32, 0.28, 0.23, 0.20, 0.17 and 0.14 mm Al₂O₃ specks
    – tumor-like masses: 1.00, 0.75, 0.50, 0.38, 0.25 and 0.20 mm thick

    Comes with comfortable carrying case.


  • Stock #
    Description
    Your Price
    03-502
    Pro-MAM Full Field Mammo Accreditation Phantom– ACR Compliant
    Comes with case.
    $1,485.00

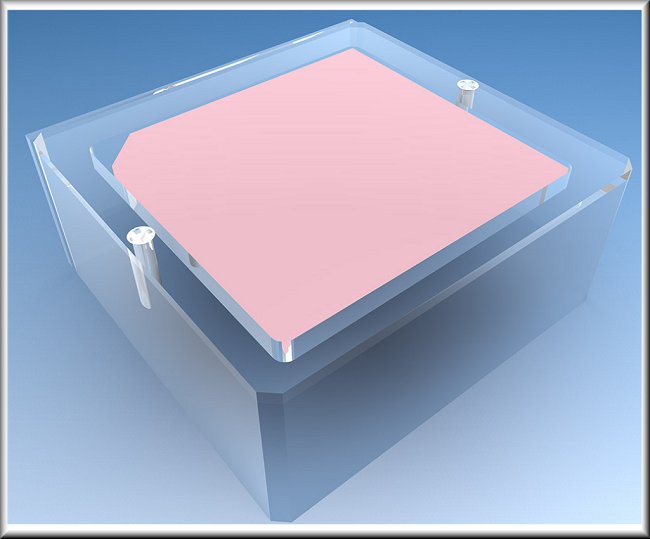

           Pro-MAM Accreditation Phantom.


    Pro-Project! Pro-MAM Accreditation Phantom.
    Now accredited and meeting requirements determined by the American College of Radiology (ACR), this phantom also meets requirements for Mammography Quality Standards Act (MQSA) of 1992. Phantom can test the performance of a mammographic system and its ability to image small structures similar to those found clinically: calcifications, fibrous calcifications in ducts and tumor masses.

    TECHNICAL DATA:
  • Dimensions: 102.0mm x 108.0mm x 44.0mm (4.01" x 4.25" x 1.73")
  • Simulates 42 mm compressed breast of average glandular/adipose composition
  • Total PMMA thickness: 36.75 mm (1.45")
  • Wax Insert:
    Thickness: 7.25MM
    Nylon fibrils diameters: 1.56, 1.12, 0.89, 0.75, 0.54 and 0.40mm
    Micro-calcifications: 0.54, 0.40, 0.32, 0.24 and 0.16 mm Al2O3 specks
    Tumor-like Masses: 2.00, l.00, 0.75, 0.50 and 0.25 mm thick
  • 4mm thick PMMA contrast disc
  • Rotating support plate (optional)
    PRODUCT FEATURES:
  • Complies with: IEC 61223-3-2
  • Meets ACR Mammography Accreditation Program Requirements
  • CE Certified
  • Comes with case.
  • Manual includes detailed guidelines for carrying out each test, results assessment & registration.



  • Stock #
    Description
    Your Price
    03-501
    Pro-MAM Accreditation Phantom
    comes with case.
    $1,245.00
