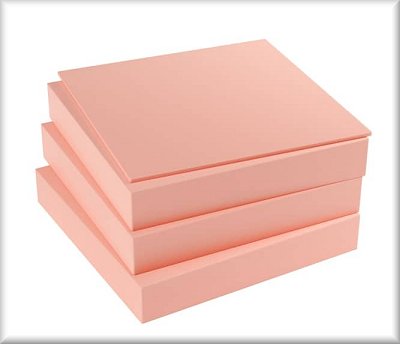

Pro-MAM BR – Set of 4 Adipose / Gland Tissues Slabs
(3 pieces: 120mm x 120mm x 20mm, 1 piece:
120mm x 120mm x 2mm)
Phantom Pro-MAM BR is designed for precise assessment of AEC system performance in accordance with American College
of Radiology and MQSA recommendations. Unlike acrylic, these testing slabs are manufactured with very tight thickness
tolerances and more accurately simulate real breast tissue over the range of energies used in mammography.
Pro-MAM BR(50% glandular / 50% adipose is most commonly used and is default ordered if none specified.
Each slab consists of two tissue-equivalent materials mimicking 100% adipose and 100% gland tissues “swirled” together
in an approximate 50/50 ratio by weight or 30/70 and 70/30 Because each slab has a unique swirl pattern, the phantom can
be arranged to create multiple backgrounds.
***SPECIFY one of these three at time of order: ( #1 is most commonly required. )
1. 50% glandular / 50% adipose
DEFAULT. If none specified.
2. 70% glandular / 30% adipose
3. 30% glandular / 70% adipose
|
