Pacific Northwest X-Ray Inc.

       RSVP Phantom Head.


The Phantom Laboratory! Radiosurgery Verification Phantom

The RSVP Phantom™ was developed to provide stereotactic localization and dose verification for radiosurgery machines.

Charles W. Coffey, II, Ph.D. established the design criteria that The Phantom Laboratory used in constructing the RSVP Phantom™. The phantom may be used for a variety of radiosurgery applications, including periodic quality assurance evaluations and acceptance testing. The RSVP Phantom™ may also be used to re-evaluate radiosurgery systems after equipment or software upgrades.

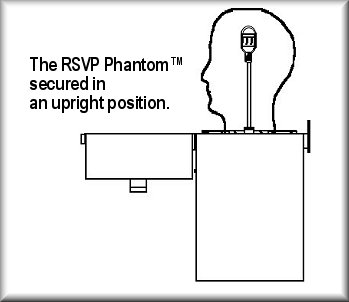

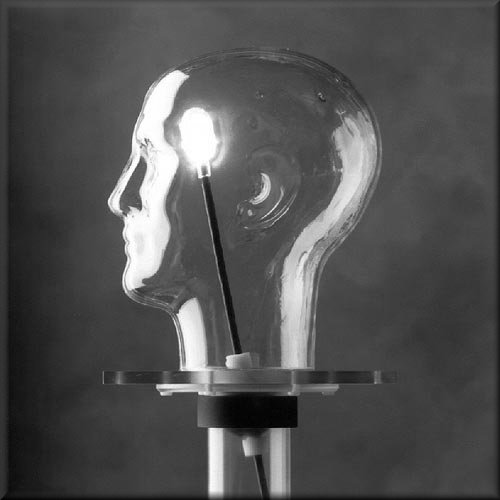

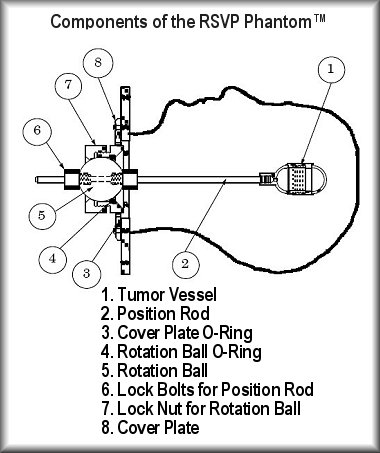

The RSVP Head Phantom™ includes a liquid fillable lifesize head form. The form is filled with water to simulate the

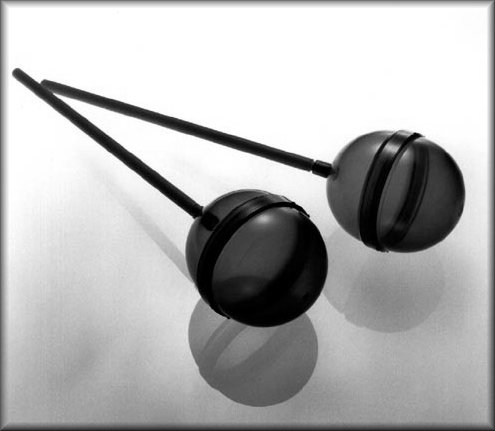

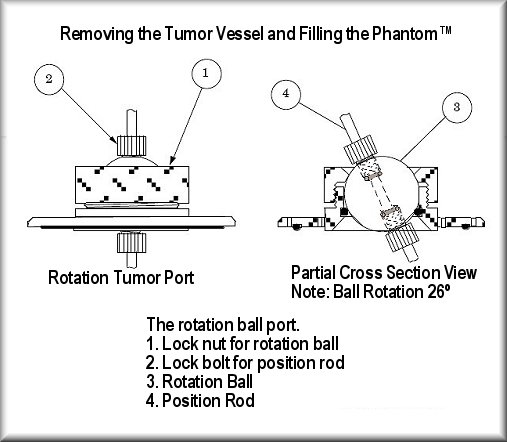

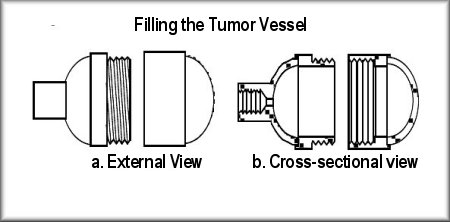

radiation absorption and scatter of human soft tissue. An internal container, called a tumor vessel, may be positioned anywhere within the form by manipulating an external position rod. This cylinder may be filled with either a radiation sensitive gel for alignment evaluations or with radiation dosimeters for quantitative dose measurements.

The Phantom Laboratory has developed optional holders that allow positioning of TLD and film dosimeters in the tumor vessel. To measure dose, a dosimeter is placed inside the tumor vessel. As in the localization evaluation, standard protocols are used to locate the tumor and irradiate the target area. The dosimeter is then removed from the phantom and read. The phantom can also accommodate specially designed chambers.

Click here to open Instruction Manual for this Product.












Stock #
Description
Your Price
TLP250
RSVP Head Phantom Head
Radiosurgery Verification Phantom including head form, three 2cm x 4cm threaded ovoid tumor vessels and permanent storage case.
$5,208.46
TLP290
RSVP Head II Phantom with Bite Feature.
Radiosurgery Verification Phantom including head form with bite feature, three 2cm x 4cm threaded ovoid tumor vessels and permanent storage case.
$6,736.85


Stock #
Optional Tumor Vessel Inserts
Your Price
TLP211
5mm Plug Holder, holds the 5mm plugs that
are designed for use with TLD chips, rods
and powder. Five RAN235 plugs included.
$75.43
TLP227
Two Plane Film Holder, has two 1mm channels
for holding dosimetry film. Note: this part
does not enable the elimination of air gaps
between the film and holder.
$62.62
TLP226
Additional 2cm x 4cm tumor vessel
and support post
$199.23
TLP280
PTW Pinpoint Chamber Adapter
$1,047.38




       RSVP Phantom Pelvis.


The Phantom Laboratory! Liquid fillable phantom for IMRT dose distribution measurements

The RSVP Phantom™ was developed to provide localization and dose verification for IMRT machines.

Charles W. Coffey, II, Ph.D. established the design criteria that The Phantom Laboratory used in constructing the RSVP Phantom™ Pelvis. The phantom may be used for a variety of therapy applications, including periodic quality assurance evaluations and acceptance testing. The RSVP Phantom™ may also be used to re-evaluate systems after equipment or software upgrades.

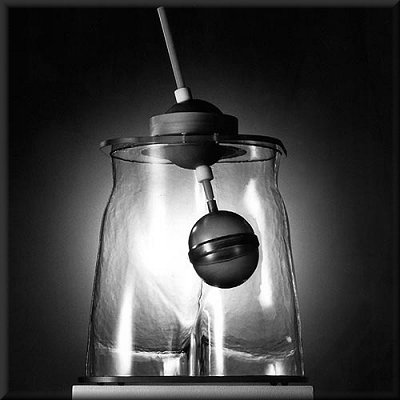

The RSVP Phantom™ Pelvis includes a liquid-fillable lifesize pelvis form. The form is filled with water to simulate the radiation absorption and scatter of human soft tissue. An internal container called a tumor vessel may be positioned anywhere within the form by manipulating an external position rod. This cylinder may be filled with either a radiation sensitive gel for alignment evaluations or with TLD dosimeters for quantitative dose measurements.

The Phantom Laboratory has developed an optional holder that allows positioning of TLD dosimeters in the tumor vessel. To measure dose, a TLD chip or dosimetry gel is placed inside the tumor vessel. As in the localization evaluation, standard protocols are used to locate the tumor and irradiate the target area. The dosimeter is then removed from the phantom and read. The phantom can also accommodate specially designed chambers.




Stock #
Description
Your Price
TLP260
RSVP Phantom Pelvis, includes pelvis form,
two 10cm ovoid tumor vessels and
permanent storage case
$7,579.31
TLP269
Optional Tumor Vessel Assembly 10cm - includes
10cm x 12cm threaded tumor vessel made from
Barex material and 1/2" diameter tumor
support rod
$261.85
