       Standard PIXY® Anthropomorphic Training/Teaching Phantom.




Radiology Support Devices!
  • An anatomically and radiologically correct female
  • Small size and low weight simplify positioning
  • Can be positioned for most views
  • Permits evaluation of student performance
  • Organs accept contrast media
  • Opaque or transparent

  • PIXY® was designed specifically for training radiologic technologists. PIXY® is 5 ft. 1 in. (156cm) tall and weighs 105 lbs. (48kg) She is repeatable, virtually indestructible and a convenient substitute for patients.

    PIXY® is made of tissue-equivalent materals and has life-like articulations. Students have no difficulty in maneuvering PIXY® into most desired positions.

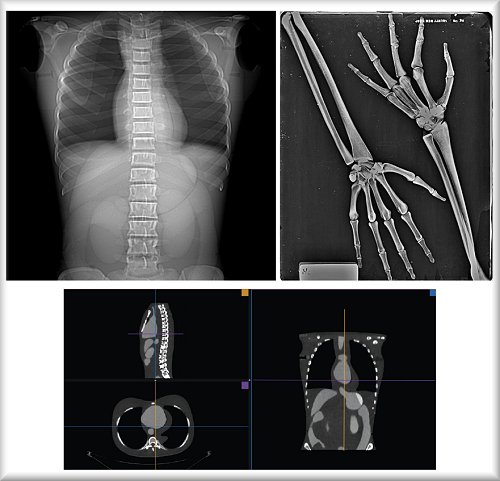

    PIXY® is used to demonstrate anatomy and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, OFD and TFD. Radiographs of PIXY® are optically equivalent in density and contrast to human patients.

    PIXY® permits unlimited exposures and tolerates trainee errors.

    PIXY® ANATOMY

    PIXY® shoulders have ball and socket joints; elbows and knees flex 90° to 100°. Hips flex 130° with 30° hyperextension.

    A "frog position" is made possible by lateral flexion at the hips. The right hand is molded with fingers positioned for an AP view, while the left hand is in an oblique-lateral position. The left foot is in full plantarflexion; the right foot is in a neutral position.

    C1, C2, C6 and C7 were converted to mechanical nylon joints because educators in the field prefer full positioning capabilities for the head. The design permits the remaining neck vertebrae to be fixed in a normal position, while assuring a full range of head motion.

    PIXY® contains abdominal and pelvic organs: stomach, gall bladder, urinary bladder, kidneys, rectum and sigmoid flexure. These are air-filled, but accept water or contrast media and can be easily flushed after use. Custom fractures and custom pathologies are optional.

    PIXY® MATERIALS

    Skeletons
    Skeletons are in continuous production, so prompt shipments are routine. Nevertheless, human skeletons are available for users who desire them. There is a surcharge to cover the high cost of scarce natural skeletons and for added labor


    needed to rework them to fit PIXY® molds.*

    The matching of skeletons and soft-tissues permits external and bony landmarks to coincide. The position of bones within the soft tissues is anatomically correct.

    The detail cast into RSD skeletons is considered a triumph of the sculptural moldmaker's craft. The skull, for example, has frontal and sphenoidal sinuses, ethmoidal and mastoid air cells and the auditory ossicles. Bone sutures are radiographically visible.

    * Highly detailed polymer skeletons which reproduce the shape, mass density and attenuation coefficients of the cortical bone and spongiosa, allow continuous production of phantoms instead of sporadic production due to limited availability, variable size and uncertain chemical composition of human skeletons.

    Soft Tissues

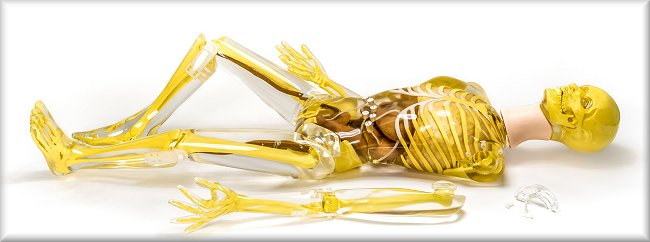

    PIXY® is available in opaque or transparent tissue-equivalent materials. The transparent PIXY® has visible organs and skeleton except at the hips, knees, and elbows, which are opaque because, as on the opaque PIXY®, latex coverings are needed to retain tissue-equivalent gels for soft-tissue continuity at these articulations. Two-ply coverings protect against gel leakage.

    Lungs
    Standard PIXY® lungs are molded of tissue-equivalent foam with the mass density of inflated human lungs (0.30g/cc). They are connected to the oro-nasal cavity by the stem bronchi and trachea. The oro-nasal pharynx is filled with a nearly air-equivalent foam.

    Optional animal lungs, which duplicate the intricate detail of the vascular trees, are available. These lungs are fixed in the inflated state and molded to conform to the pleural cavities of the phantom. The pulmonary arteries are injected with a blood-equivalent plastic. In addition, low, medium or high contrast material may be selected by the user.

    Arterial Tree
    The benefits of having the arterial tree are for the student to see where the main blood vessels go. They will also be able to fill the aorta with a blood equivalent fluid that can then be x-rayed.

    REFURBISHMENT

    RSD offers a PIXY® refurbishment service which, after wear and tear from usage over an extended period of time, restores PIXY to its original condition. This service includes repair of minor bone fractures of hands and feet. Quotes are furnished upon request for more extensive damage.

    Ships Motor Freight.
    Approximate shipping weights and dims: 265lbs (81" x 32" x 25") RS-102SP are included in the RS-102


    Stock #
    Description
    Your Price
    RS-102
    Opaque PIXY® Phantom with stomach, gall bladder, urinary bladder, kidneys, rectum and sigmoid flexure. Permanent shipping/storage case.
    Approximate total shipping weight: 265 lbs.
    $30,910.00
    RS-102T
    Same as RS-102 but transparent
    $35,230.00
    RS-157
    Animal Lungs (Must be ordered with phantom, cannot be retrofitted)
    $3,050.00
    RS-150
    Add Arterial Tree
    $1,770.00
    RS-102SP
    Choice of Custom Fractures and Pathologies. Pick one, any, or all. Pathologies based on user's requirements.
    (Must be ordered with Phantom, cannot be retrofitted). Price listed is per item.
    1. Depressed skull fracture at any desired location.
    2. Hairline fracture of the scaphoid bone of the wrist (with no fragment separation).
    3. Fracture of the superior pubic ramus.
    4. Rib fracture at the mid-axillary line.
    5. Unseparated fracture of the patella.
    6. Stress fracture of the 5th tarsal bone of the extended foot.
    $134.00
    RS-102R
    Standard Refurbishment of Your PIXY® (Major repairs quoted upon request)
    $6,590.00
    RS-102R8
    If having PIXY® refurbished/Crate to ship PIXY® if yours is no longer available.
    $429.00
    RS-103
    Opaque BREAK-APART PIXY®, with fill ports for
    Stomach, Gall Bladder, Urinary Bladder, R&L Kidneys, Rectum and Sigmoid flexor.(Scroll to bottom of page for graphics.)
    $32,060.00
    RS-103T
    Transparent BREAK-APART PIXY®, with fill ports for
    Stomach, Gall Bladder, Urinary Bladder, R&L Kidneys, Rectum and Sigmoid flexor.
    $36,640.00
    RS-104
    Opaque BREAK-APART PIXY®, NO fill ports. Contains the stomach, gall bladder, urinary bladder,
    right and left kidneys, rectum and sigmoid flexor.
    $30,910.00
    RS-104T
    Transparent BREAK-APART PIXY®, NO fill ports.Contains the stomach, gall bladder, urinary bladder,
    right and left kidneys, rectum and sigmoid flexor.
    $35,230.00
    RS-105
    Opaque Break-Apart PIXY®. NO ORGANS, NO FILL PORTS.
    $27,480.00
    RS-105T
    Transparent Break-Apart PIXY®. NO ORGANS, NO FILL PORTS.
    $29,770.00

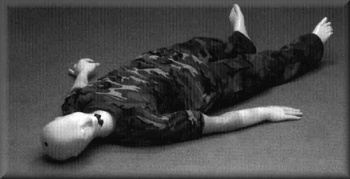

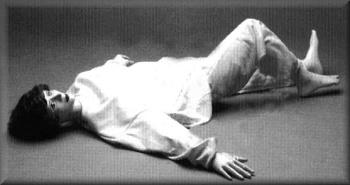

           Wounded Willy/Damaged Debbie Versions of RSD's PIXY® Phantom.




    Radiology Support Devices! ANTHROPOMORPHIC RADIOLOGICAL PHANTOMS

    DIMENSIONS: The size and weight of both Willy and Debbie is a small adult. Since technologists must learn to work with patients of all sizes and weights, a smaller phantom is as valid for training as a larger phantom, and positioning is facilitated. Each is 5 ft., 1" tall (156cm) and weighs 105 lbs. (48 kg).

    ANATOMY:
    Willy and Debbie are articulated at the neck, shoulders, elbows, hips and knees. Fractures of the left shoulder and left hip are located in Debbie. To minimize handling problems, all other traumas of the arms and legs are located in Willy and on the right side of Debbie. The articulations provide a broad range of positioning of capabilities, even the "frog position".

    LUNGS:
    Lungs are molded of durable materials with radiodensities matched to humans in a median respiratory state. Animal lungs matching the human in size and blood vessels are available, but they are oriented towards research rather than training.

    SOFT TISSUES:
    Willy and Debbie have solid "soft tissues" that are hard and rigid. They cannot be palpated to locate traumas. However, radiological technologists are generally informed by the physician as to the views to be taken.



    SKELETONS:

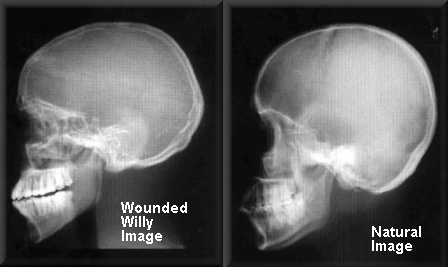

    RSD manufactured skeletons are used rather than natural human skeleton. The latter are generally unavailable and usually consist of an assortment of bones ranging from children to adults of ages for which osteoporosis becomes a factor. RSD skeletons are not to be confused with plastic skeletons for teaching anatomy. RSD skeletons are made to fit the soft-tissie molds precisely. They have spongiosa moldings within marrow cavitities and outer, cortical bone. Both constituents meet the internationally-accepted standards for radiodensity and specific gravity.

  • 30 traumas and pathologies specific to Willy, 25 specific to Debbie.
  • Human Technical Factors.
  • Unlimited repetition of views without human exposure.
  • Radiographs that permit evaluation of trainee performance.
  • Teaching/Training for hospital ERs.

  • Willy and Debbie Differences:
    The most obvious difference between them is in the complement of traumas and pathologies assigned to each. Another difference is that Debbie has female breasts, while Willy has natural male chest contours. Debbie is fitted with a wig, while Willy is bald. They are dressed in camo fatigues.


    Stock #
    Descripton
    Your Price
    RS-601
    Wounded Willy Male Phantom with anatomic & mechanical neck
    Including 30 traumas & pathologies specific to Willy
    $32,600.00
    RS-602
    Damaged Debbie Female Phantom with anatomic & mechanical neck
    Including 25 traumas & pathologies specific to Debbie
    $32,060.00
    RS-600
    Wounded Willy & Damaged Debbie Teaching/Training System
    $62,000.00

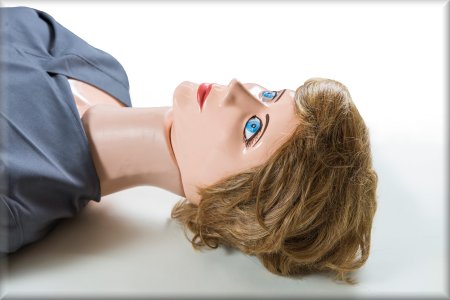

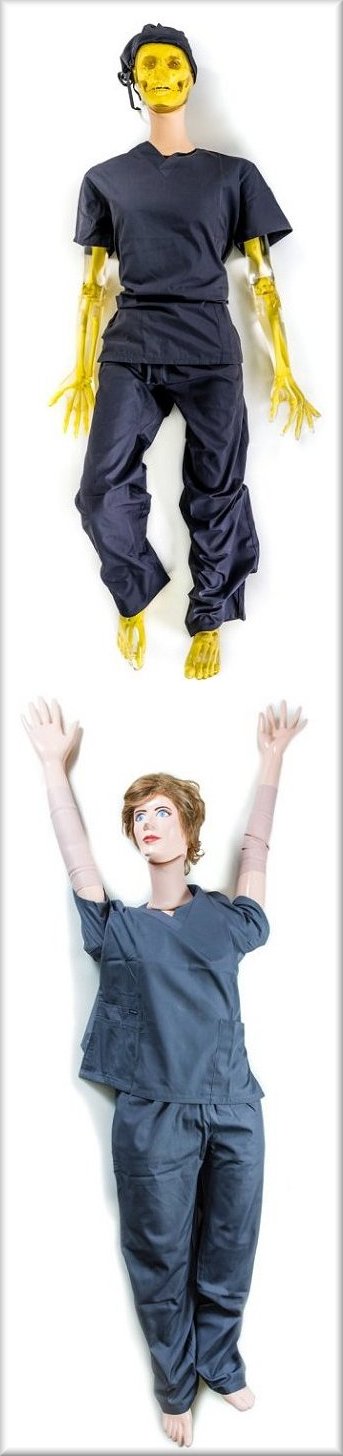

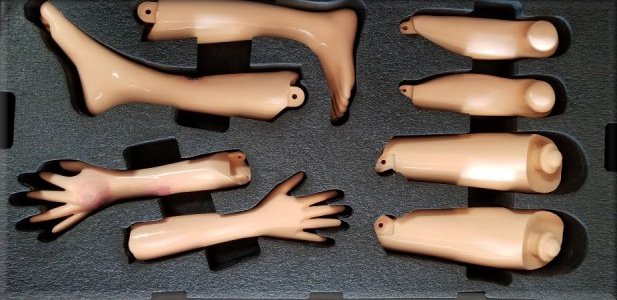

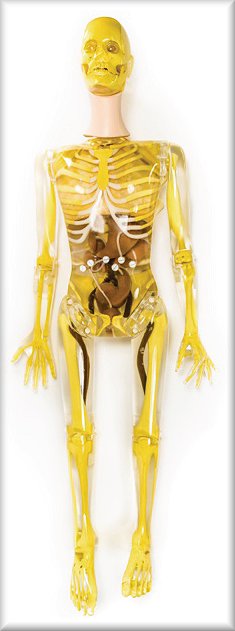

           New Break-Apart PIXY® Anthropomorphic Training/Teaching Phantom.


    Radiology Support Devices! NEW! 'Break-Apart PIXY'. Available in three options, both in opaque or transparent.

  • RS-103: Contains fill ports for the stomach, gall bladder, urinary bladder, right and left kidneys, rectum and sigmoid flexor.

  • RS-104: NO fill ports for the stomach, gall bladder, urinary bladder, right and left kidneys, rectum and sigmoid flexor.

  • RS-105: NO ORGANS, NO FILL PORTS

  • Comes with removable track suit for protection

  • All include Permanent Storage Case.






    Stock #
    Description
    Your Price
    RS-103
    Opaque BREAK-APART PIXY. Contains fill ports for the stomach,
    gall bladder, urinary bladder, right and left kidneys, rectum and sigmoid flexor.
    Includes Permanent Storage Case
    $32,060.00
    RS-103T
    Same as RS-103 but transparent.
    $36,640.00
    RS-102SP
    Choice of Custom Fractures and Pathologies for RS-103. Pick one, any, or all. Pathologies based on user's requirements.
    (Must be ordered with Phantom, cannot be retrofitted). Price listed is per item.
    1. Depressed skull fracture at any desired location.
    2. Hairline fracture of the scaphoid bone of the wrist (with no fragment separation).
    3. Fracture of the superior pubic ramus.
    4. Rib fracture at the mid-axillary line.
    5. Unseparated fracture of the patella.
    6. Stress fracture of the 5th tarsal bone of the extended foot.
    $134.00
    RS-104
    Opaque BREAK-APART-PIXY. NO fill ports. Contains the stomach,
    gall bladder, urinary bladder, right and left kidneys, rectum and sigmoid flexor.
    Includes Permanent Storage Case.
    $30,910.00
    RS-104T
    Same as RS-104 but transparent.
    $35,230.00
    RS-105
    Opaque BREAK-APART PIXY. NO ORGANS, NO FILL PORTS.
    Includes Permanent Storage Case.
    $27,480.00
    RS-105T
    Same as RS-105 but transparent.
    $29,770.00
