       Pro-Project's Pro-Digi - Digital Radiography Acceptance/Constancy Test Tool.


Pro-Project! PRO Digi

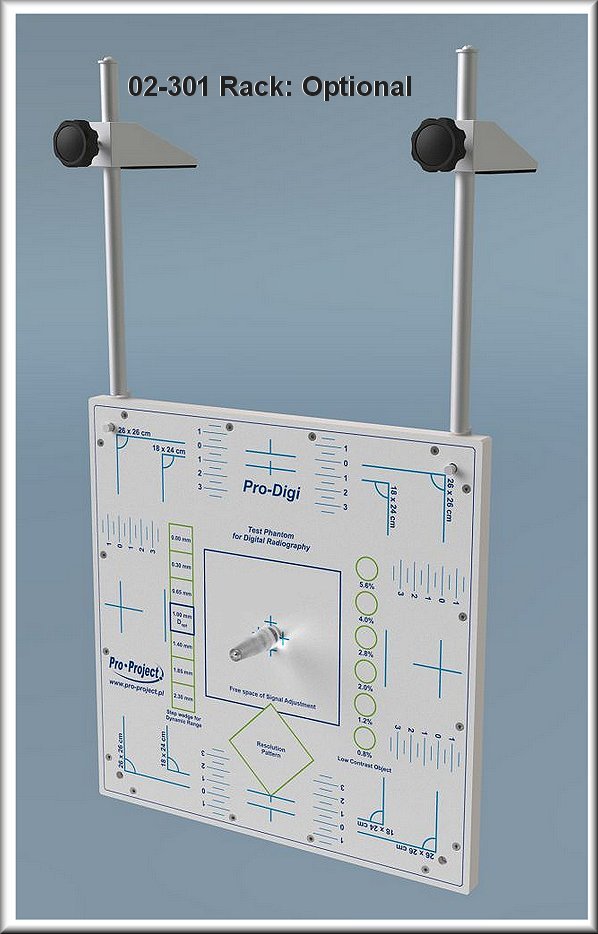

The Pro-Digi phantom is dedicated for acceptance and constancy tests of digital radiography equipment.



It can be used to measure...
  • Collimation / beam alignment.
  • Position and size of the effective radiation field.
  • Dynamic range.
  • Spatial resolution.
  • Contrast resolution.
  • Homogeneity.



  • TECHNICAL DATA:
    -Dimensions: 308mm x 308mm x 12mm. (12" x 12" x 4")
    -1mm thick copper plate embedded PMMA.
    -7-step copper wedge.
    -6 low contrast elements.
    -Free area for signal calibration
    -Markings to determine size & position of effective radiation field.
    -Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm).




    Complies with: – IEC 61223-3-1, – DIN 6868/58 and DIN 6868/13, CE certified. The Manual provides detailed guidelines for carrying out each test, results assessment and registration.


    Stock #
    Description
    Your Price
    02-102
    PRO Digi
    $998.00
    02-306
    Optional Cone
    For perpendicular X-Ray
    beam alignment
    in the range of 0º +/- 1.5º.
    $36.00
    02-301
    PRO-RF Rack
    For mounting on Bucky
    grid wall stands.
    $295.00
