       Pro-Fluo 150 Fluoroscopy Test Tool.

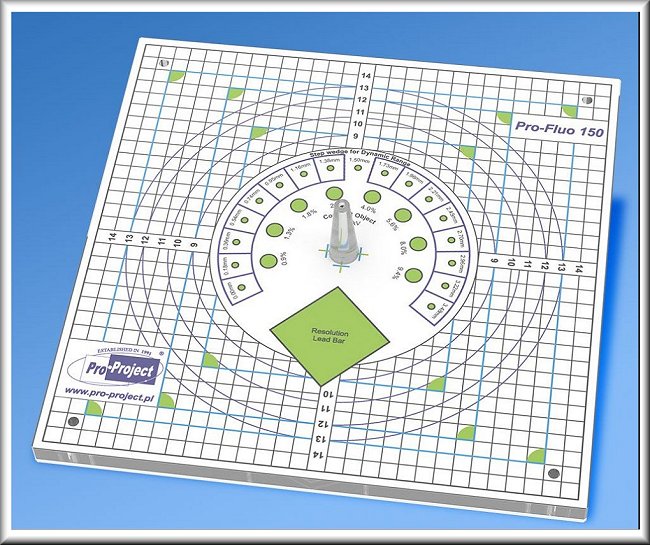

Pro-Project! The Pro-Fluo 150 Phantom is dedicated for acceptance and constancy tests of radiography and fluoroscopy equipment according to the new DIN 6868-150 standard.

It can be used to measure:
  • Collimation/Beam Alignment
  • Position & Size of the Effective Radiation Field
  • Dynamic Range
  • Spatial Resolution
  • Contrast Resolution
  • Homogeneity
  • Beam Quality


  • Technical data:(can be modified to customer specifications):
    -dimensions: 308 x 308 x 18,5mm
    -1.5mm thick copper plate with mesh pattern embedded in PMMA
    -Total PMMA Thickness: 17mm
    -17-step copper wedge (thickness 0.0mm to 3.48mm) with additional low contrast details (4mm diameter)
    -8 low contrast elements (10mm diameter)
    -Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
    -Markings to determine the size and position of the effective radiation field

    Included:
    Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5° - See 02-306.

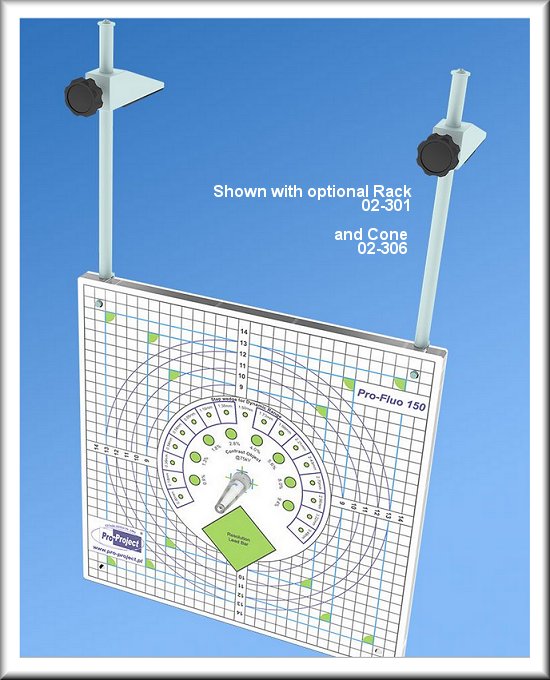

    Optional Rack for mounting on Bucky grid wall stands. It allows for precise and safe positioning - See 02-301.

    Product features:
    Complies with: – IEC 61223-3-1, – DIN 6868-150, CE certified, Manual provides detailed guidelines for carrying out each test, results assessment and registration.








    Stock #
    Description
    Your Price
    02-115
    Pro-Fluo 150 (Includes Cone.)
    $1,390.00
    02-301

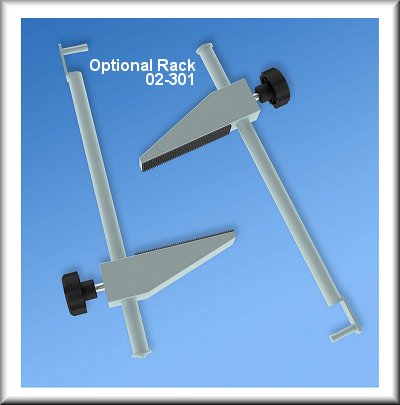

    Optional Rack for 02-115 Pro-Fluo 150
    Also use with:Pro-Alpha
    02-102 Pro-Digi and
    02-103 Pro-Fluo
    $295.00




           General R/F QC Phantom.


    Harry B. Rusk Company! Introduction

    The R/F QC Phantom is designed to provide the diagnostic radiologic technologist with an accurate, easy-to-use tool for evaluating the image quality and performance of standard diagnostic radiographic and fluoroscopic imaging systems.

    Applications

    For fine-tuning of radiographic and fluoroscopic imaging systems, it is recommended that the phantom be imaged at least monthly on all radiographic and fluoroscopic equipment. To attain the most accurate, up-to-date quality control information, a daily or weekly frequency is preferable. When used daily, the R/F QC Phantom will allow the technologist to quickly determine whether the equipment is functioning correctly. This easy-to-use phantom allows the user to complete the suggested protocol in approximately 5 minutes or less, when used on a standard R/F system. Once the phantom is imaged, simply graph the results to determine any trends that may indicate a degradation of imaging system performance, such as a steady but slow change in the fluoro kVp or in the radiographic mAs.

  • Designed specifically with the radiologic technologist in mind
  • Provides an accurate overall evaluation of image quality consistency
  • For QC of phototimer and automatic brightness control consistency
  • Ideal for use in determining subtle degradation in imaging performance
  • Average test time is less than 5 minutes per unit
  • For use with radiography, fluoroscopy, and spot films, too


  • Verifies fluoroscopic monitor contrast and brightness adjustment

  • Key Features

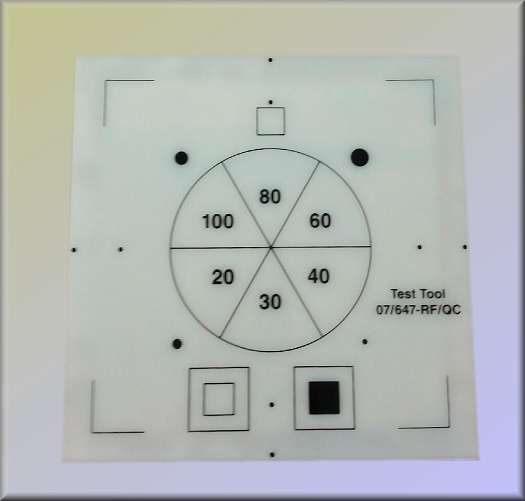

  • At the center of the phantom are pie shaped wedges of varying mesh sizes: 20#, 30#, 40#, 60#, 80#, and 100# L/in, for evaluating high-contrast performance
  • Surrounding the mesh are four low contrast "masses" of different diameters: 2, 4, 6, and 8 mm
  • At one edge of the phantom is a small "density difference" patch, for a measure of contrast on the films
  • At the opposite edge of the phantom are two monitor adjustment squares, each having a low contrast square insert
  • The phantom contains a 2 mm copper attenuator, which allows it to simulate the attenuation of an average adult
  • At the corners of the test tool are lines for aligning the light field
  • QC charts are provided for plotting both the radiographic and fluoroscopic results
  • Along the sides of the test tool are beads 1 cm inside and outside of the lines started in the corners

  • Specifications

    Dimensions: 7 x 7 x 0.56 in (t) (17.78 x 17.78 x 1.42 cm)
    Weight: 1.1 lb (0.5 kg)


    Stock #
    Description
    Your Price
    07-647
    R/F QC Phantom
    $376.00




           Pro-RF Fluo 18 Performance Phantom.

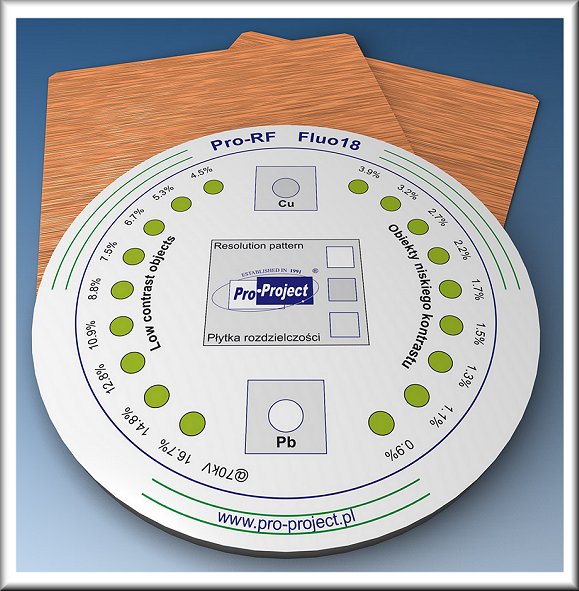

    Pro-Project! Pro-RF Fluo 18 Phantom for evaluation of imaging performance of fluoroscopic systems.

    This phantom allows for brightness and contrast adjustments, circular geometry check (scanning linearity) plus wide-range low-contrast and high-contrast resolution evaluation.

    Available in two standard layouts plus any custom configuration.

    Technical data (can be modified to customer specifications):
  • Diameter: 180mm
  • Thickness: 10mm
  • Two standard layouts available (others upon request)
  • 3 Circular rims on the outside of the phantom (Ø: 150, 160 and 170mm) for a geometry and collimation check
  • 18 low contrast objects, 8mm in diameter, producing contrast values from 0.9 to 16.7%
  • Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
  • Pb and Cu squares with circular bright and dark objects for contrast and brightness adjustment
  • 1.0 and 0.5mm high purity Cu attenuation filters (fit to the diaphragm housing)
  • Includes Compact Carrying Case

  • Product features:
    Complies with: – IEC 61223-3-1, – IPEM Report 91 (2005): Recommended Standards for the Routine Performance , Testing of Diagnostic X-Ray Imaging Systems published by the Institute of Physics and Engineering in Medicine. CE Certified, Manual provides detailed guidelines for carrying out each test, results assessment and registration.


    Stock #
    Description
    Your Price
    02-401
    Pro-RF Fluo18 - Phantom
    for High & Low Contrast
    $1,147.00






           Fluoro Resolution Mesh Performance Phantom.


    Pro-Project! Test phantom for evaluation of high contrast resolution of fluoroscopy system in one exposition.
    Two options, each consists of eight patterns of wire mesh in a pie shape.

    Technical data: (Can be modified to customer specifications)
  • Dimensions: 180 x 180 x 10 mm
  • Cover made of PMMA

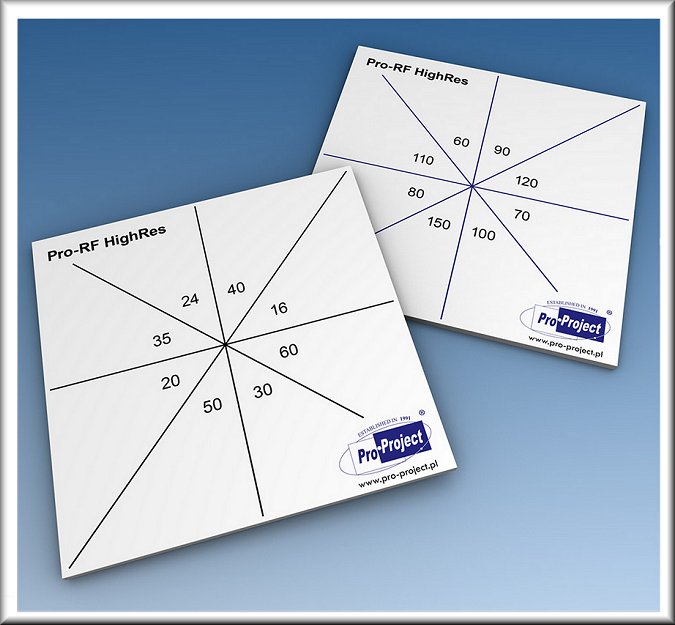

  • Two options; standard configurations or high contrast wire mesh patterns:
    – For Standard Systems: 16, 20, 24, 30, 35, 40, 50, 60
    – For Higher Resolution Systems: 60, 70, 80, 90, 100, 110, 120, 150

    Product features:
    Complies with: – IEC 61223-3-1, CE certified, Manual provides detailed guidelines for carrying out each test, results assessment and registration.


    Stock #
    Description
    Typical
    Application
    Configuration
    Your Price
    02-112
    Pro-RF High Res Test Phantom
    ~Wire Mesh Pattern
    Fluoroscopy
    Standard
    16 - 60
    $650.00
    02-111
    Pro-RF High Res Test Phantom
    ~Wire Mesh Pattern
    Fluoroscopy
    High-Res
    60 - 150
    $695.00




  •        Fluoroscopic Resolution Test Tool.

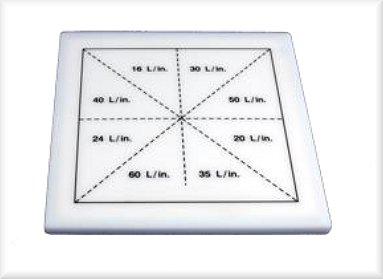

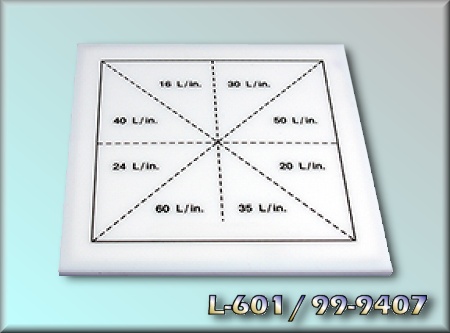

    Ludlum Measurements, Inc! The Fluoroscopic Resolution Test Tool is a plastic plate containing eight groups of copper and brass mesh screening. Three models are offered, each with a different resolution. They are arranged in an irregular and non-sequential rotation to permit better visualization of the different resolution patterns. These test tools provide a quick method to check an Image Intensifier or video system resolution. The tool provides a quick, easy-to-use method for testing radiographic and fluoroscopic equipment. Clearly marked sections of the tool identify the number of lines of wire mesh per inch in that segment. Four low-contrast "targets" of 2 mm, 4 mm, 6 mm, and 8 mm, a "contrast" square, two monitor adjustment squares, and a copper attenuator to simulate the attenuation of a small adult are also present.



    Stock #
    Model Number
    Line Pair Range
    Fluke Equivalent
    Stock Number
    Your Price
    99-9407
    L-601
    16-60 LPI
    07-601
    $492.31
    99-9408
    L-618
    30-100 LPI
    07-618
    $492.31
    99-9409
    L-619
    60-500 LPI
    07-619
    $492.31






           Rad/Fluoro Contrast Resolution Test Tools.


    Ludlum Measurements, Inc! Ludlum RD/FL Phantoms are easy-to-use tools to quickly assess general radiographic and fluoroscopic image quality and the performance of a standard imaging system. The ability to measure contrast and resolution in one exposure allows the tester to quickly determine whether or not the system is working correctly.

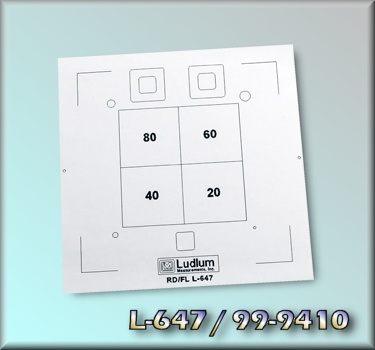

    The Model L-647 phantom has six mesh patterns ranging from 20 to 100 lines per inch. Surrounding the mesh pattern are four low-contrast targets of varying diameters (2 mm, 4 mm, 6 mm, and 8 mm.

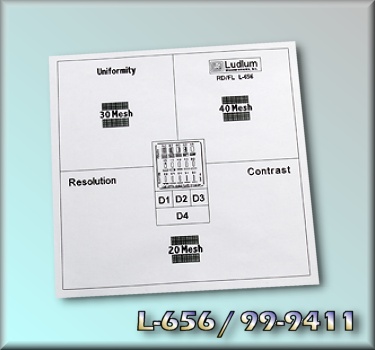

    The Model L-656's centered contrast scale and line pair resolution insert allows simultaneous evaluation of the resolution, contrast, and density uniformity.



    Stock #
    Model Number
    Description
    Your Price
    99-9410
    L-647
    Rad/Fluoro Contrast Resolution Test Tool, 6 patterns 200-100 lpi
    $613.85
    99-9411
    L-656
    Rad/Fluoro Digital Contrast Resolution Test Tool.
    $1,153.85
