Pacific Northwest X-Ray Inc.

       HVL Filter Testing Sets.
Harry B. Rusk Company! Because type-1100 aluminum is only 99.0% pure, the remaining 1% of impurities can give an HVL value which is up to 7.5% lower than those measured with pure aluminum.

When doing HVL measurements with a mammography unit, it is recommended that the highest purity aluminum be used. The "Ultra-High Purity" version satisfies this recommendation.

Typical Weight: 0.15 lbs (0.06 kg)
Quanity discounts available on orders of 10+ of the same model.






Stock #
Description
Kit Contains
Filter Dimensions
Material Type
Your Price

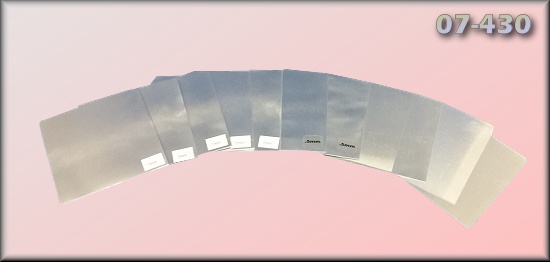

07-430
Standard Purity Aluminum HVL Filter Set
4 qty 0.1mm/2 qty 0.5mm/5 qty 1.0mm
10cm x 10cm
Type 1100 Aluminum
$144.00
07-434
High Purity Aluminum HVL Filter Set For Mammo
6 qty 0.1mm
10cm x 10cm
Type 1145 Aluminum
$204.00

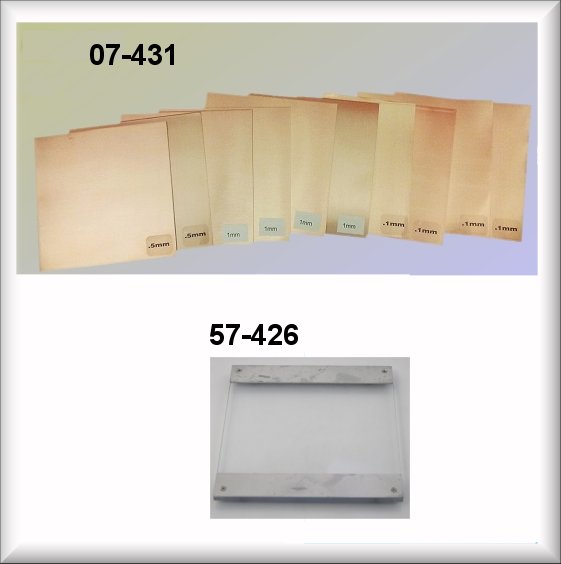

07-431
Copper HVL Attenuators
4 qty 0.1mm/2 qty 0.5mm/5 qty 1.0mm
10cm x 10cm
High Purity Copper
$204.00
07-431-7005
Copper HVL Attenuators
4 qty 0.1mm/2 qty 0.5mm/5 qty 1.0mm
7cm x 7cm
High Purity Copper
$62.00

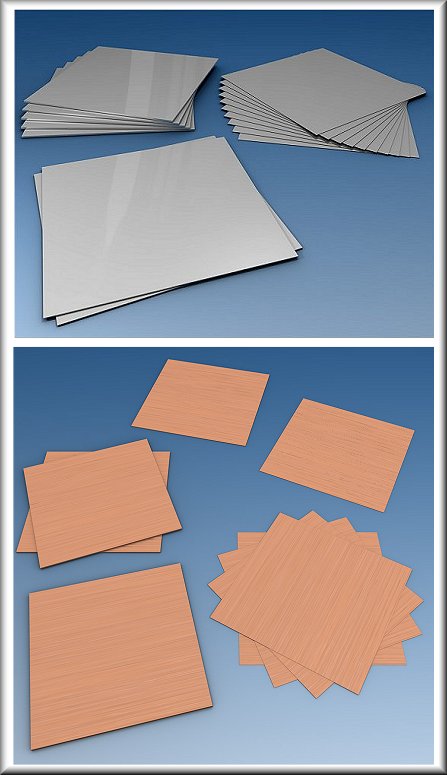

       HVL Filter Testing Set.


Pro-Project! Sets of high and standard purity aluminium and/or copper plates for testing Half Value Layer. (HVL)

TECHNICAL DATA:
  • Dimensions: 89 x 89mm or 100 x 100mm, as noted below.
  • Standard set: 5 x 1.0mm, 2 x 0.5mm, 4 x 0.1mm, aluminium purity 99.5%
  • Mammography Aluminum Set: 6 x 0.1mm, aluminium purity 99.9%
  • High Purity Copper Set: 1x 2.0mm, 2x 1.0mm, 1x 0.5mm, 1x 0.25mm, 4x0.1mm


    Stock #
    Description/Size
    Quantity
    Contains:
    Your Price
    05-201
    HVL Standard Aluminum Set
    89x89mm
    99.5%
    11
    Set of
    5x 1.0mm
    2x 0.5mm
    4x 0.1mm
    $292.00
    05-201-100
    HVL Standard Aluminum Set
    100x100mm
    99.5%
    11
    Set of
    5x 1.0mm
    2x 0.5mm
    4x 0.1mm
    $260.00
    05-201-1M
    HVL Standard Aluminum Set
    89mm or 100mm
    99.5%
    10
    Set of
    10x 1.0mm
    $695.00
    05-202
    HVL Mammography Set
    89x89mm
    99.9%
    6
    Set of
    6x 0.1mm
    $339.00
    05-203
    HVL High Purity Cu Filter Set
    100x100mm
    99.9% M1E copper
    9
    Set of
    1x 2.0mm
    2x 1.0mm
    1x 0.5mm
    1x 0.25mm
    4x 0.1mm
    $419.00




  •        HVL Filter Holder and Filter Sets.


    Ludlum Measurements, Inc! The new Ludlum L-435 HVL Filter Holder is designed to simplify the routine HVL measurement process. For years the method of attaching the HVL filters to the x-ray collimator involved using large quantities of medical/surgical tape. While tape does do the job, it also tends to destroy the thinner aluminum filters; particularly the high purity mammography filters.

    The Model L-435 HVL Filter Holder eliminates the need to use tape to attach the HVL filters to the collimator housing.

    The Filter Holder consists of a polycarbon base 9.5" x 9.5". Permanently bonded to the center of the base plate is an acrylic pocket, open on one side and designed to hold a standard or high purity Al Filter set. The polycarbon material is easily cut with a standard utility knife or sheers to accommodate the two most common collimator track sizes in a given department. The base may also be attached with the provided hook & loop type strips for odd sized collimators. In either case the filters themselves are protected from damage associated with the application and removal of heavy medical/surgical tape.

    99-9427: The CR/DR TG-116 Filter Holder Set is designed to simplify the filtration requirements needed to achieve the needed beam hardening conditions necessary to reach the desired Exposure DI for the various anatomical views being established.
    The copper filter is permanently bonded to the polycarbonate base material. The copper filter is covered with an acrylic pocket. The pocket, open on one side, will hold all the provided filters. The polycarbonate material is easily cut with a standard utility knife or sheers to accommodate the two most common collimator track sizes in a given department.

    Base Material: Polycarbonate 9.5" x 9.5"
    Filter Pocket: Acrylic, 10.2 mm x 10.2 mm x 9 mm H
    Plate Size: 10cm x 10cm


    Stock #
    Description
    Your Price
    99-9428
    HVL Filter Holder
    $165.00
    99-9400
    Standard Aluminum HVL Filter Set consists of 11 plates:
    5 are 1.0mm
    2 are 0.5mm
    4 are 0.1mm
    $175.39
    99-9401
    Ultra High Purity Aluminum HVL Filter Set
    6 plates: all are 0.1mm
    $276.92
    99-9402
    Copper HVL Filter Set of 10 plates:
    4 are 1.0mm
    2 are 0.5mm
    4 are 0.1mm
    $250.00
    99-9430
    Kit Includes:
    4 High Purity Aluminum Plates
    1 Laminated Lead Plate
    4 Copper Plates
    1 Resolution Plate
    2 Sets of Spacing Rods
    $1,376.92
    99-9435
    0.5mm Copper Filter 20 Pack
    $462.00
    99-9433
    0.5mm Copper Filter 30 Pack
    $648.00
    99-9432
    TG-51 Linac Filter
    $165.00
    99-9427
    CR/DR TG-116 Filter Holder Set
    4x 1mm Alum. Filters
    1x 0.5mm Alum. filter
    1 copper filter, perm. bonded.
    $224.00
