Pro-Project! Resolution Test Patterns
Pro-Project offers a wide range of test patterns for two and three dimensional resolution evaluation. Because they do not depend on other companies, and each pattern is developed and manufactured in-house, they offer all combination of shapes, layouts, templates and materials. Their cutting-edge technology allows them to obtain unmatched precision and resolution range in many types of materials and they can easily manufacture different sizes per your requirement. Call for pricing on your needs if not mentioned here.

Here we show the most standard patterns. However, Pro-Project can produce custom designs, so please contact us for pricing on custom needs!







Stock #
Description
Type
Range of
Line Pairs/mm
Number
Of Groups
Bars
per
Group
Lead
Thickness
Your Price
05-401
Pro-Res RF BarType 1
Physical Size: 50x50mm
Bar
0.6 - 5.0
20
3
0.05mm
$607.50

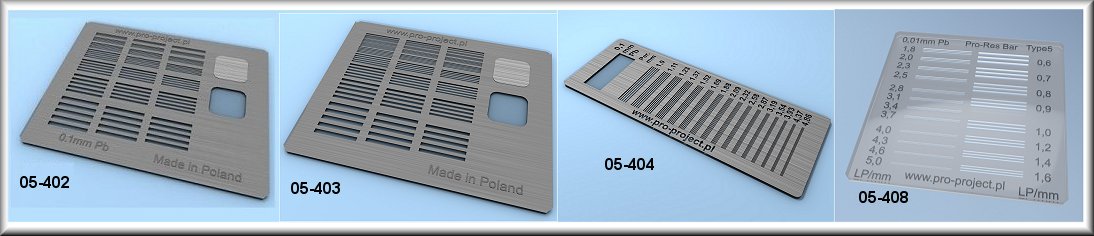

05-402
Pro-Res RF BarType 2
Physical Size: 57mmx47mm
Bar
0.5 - 5.0
21
5
0.1mm
$607.50
05-403
Pro-Res RF BarType 3
Physical Size: 57mmx47mm
Bar
0.5 - 14.3
30
5
0.05mm
$1,215.00
05-404
Pro-Res RF BarType 4
Physical Size: 110x40mm
Bar
1.0 - 4.86
16
5
0.1mm
$566.66
05-408
Pro-Res RF BarType 5
Physical Size: 50x50mm
Bar
0.6 - 5.00
20
3
0.1mm
$995.00

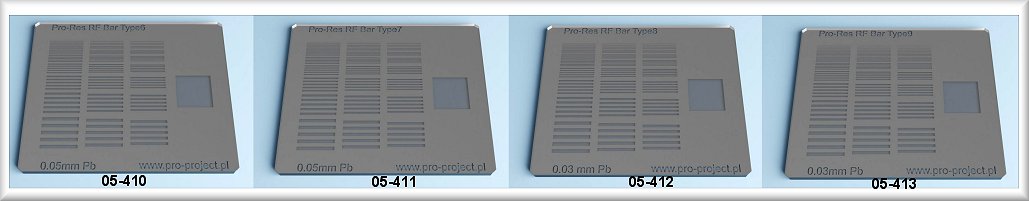

05-410
Pro-Res RF BarType 6
Physical Size: 57x47mm
Bar
0.5 - 5.00
21
3
0.5mm
$695.00
05-411
Pro-Res RF BarType 7
Physical Size: 57x47mm
Bar
0.5 - 10.00
27
5
0.05mm
$1,150.00
05-412
Pro-Res RF BarType 8
Physical Size: 57x47mm
Bar
0.5 - 14.3
30
5
0.03mm
$1,200.00
05-413
Pro-Res RF BarType 9
Physical Size: 57x47mm
Bar
0.5 - 20.00
33
5
0.03mm
$1,600.00

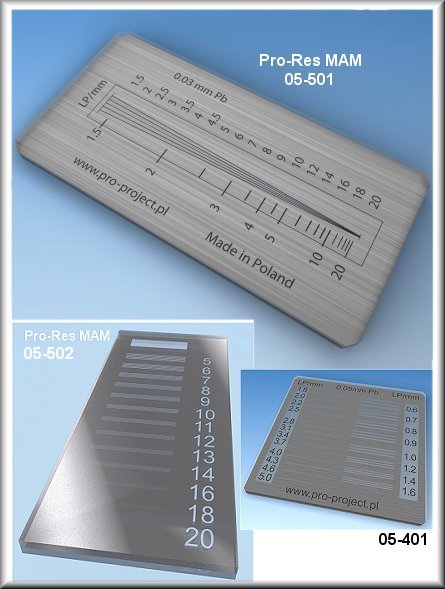

05-501
Pro-Res Mam
Physical Size: 26mmx60mm
Cone
1.5 - 20.0
N/A
N/A
0.03mm
$945.00
05-503
Pro-Res Mam
Physical Size 10mmx25mm
Bar
5.0 - 20.0
13
5
0.03mm
$1,690.00

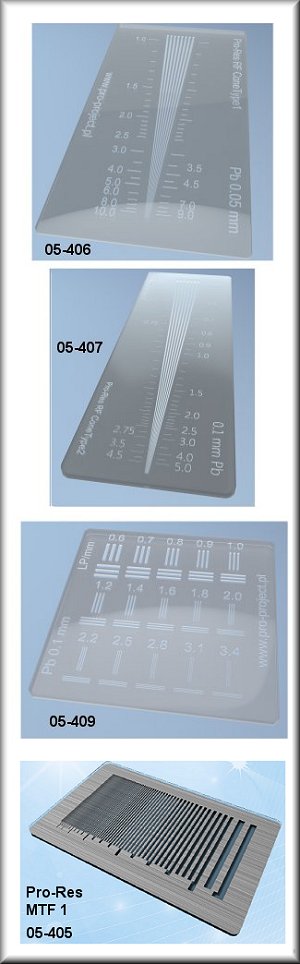

05-406
Pro-Res RF ConeType 1
Physical Size: 80x40mm
Cone
1.0 - 10.0
1
N/A
0.05mm
$940.00
05-407
Pro-Res RF ConeType 2
Physical Size: 150x40mm
Cone
0.5 - 5.0
1
N/A
0.1mm
$1,095.00








05-409
Pro-Res RF MultiBar Type 1
Physical Size: 50x50mm
Cone
0.6 - 3.4
2 x 15
NA
0.1mm
$1,200.00








05-502
Pro-Res MTF Calculation
Physical Size: 71x44mm
resolutions: 0.25, 0.5, 0.6, 0.7, 0.85, 1.0
1.2, 1.4, 1.7, 2.0, 2.4, 2.9, 3.5, 4.2, 5.0
6.0, 7.0, 8.5, 10.0, 8.5, 7.0, 6.0 LP/mm
Bar
0.25-10.00
22
N/A
0.05mm
$1,690.00








05-301
Pro-Res Dent Intra
Bar
4.0 - 8.0
7
3
0.05mm
$450.00
05-302
Pro-Res Dent OPG
Bar
1.6 - 3.0
7
3
0.05mm
$450.00
01-103
Pro-Dent Gamma
N/A
4.0 - 8.0
N/A
N/A
N/A
$385.00
01-104
Pro-Dent Gamma
N/A
1.6 - 3.0
N/A
N/A
N/A
$385.00
01-105
Pro-Dent Gamma
N/A
1.6 - 3.0
AND 4.0 - 8.0
N/A
N/A
N/A
$724.00








       Focal Spot Test Star Patterns.


Pro-Project! "Pro-Star" Test Patterns for Focal Spot Size can be determined by observing the regions of blurring which occur when the pattern is radiographed by an x-ray source of finite dimensions. Radiation from different areas of the focal spot will cause a periodic blurring of the pattern due to penumbra effects. Knowledge of the geometric factors, and the distance from the center of the pattern to the region where blurring occurs, will permit the calculation of the focal spot size with the same accuracy as measurements made with a pinhole camera.



Stock #
Description
Type
Range of
Line Pairs/mm
Number
Of Groups
Bars
per
Group
Lead
Thickness
Your Price
05-601
Pro-Star Version I
To determine
Focal Spot Size
55mm
Diameter
0.1 to 0.3
4x 15º sectors
0.5° angle
of a single line
N/A
0.03mm
$590.00
05-602
Pro-Star Version II
To determine
Focal Spot Size
55mm
Diameter
1.0 and up
4x 45º sectors
2° angle
of a single line
N/A
0.05mm
$590.00
05-603
Pro-Star Version III
To determine
Focal Spot Size
55mm
Diameter
0.3 to 0.6
4x 28º sectors
1° angle
of a single line
N/A
0.03mm
$590.00
05-604
Pro-Star Version IV
To determine
Focal Spot Size
55mm
Diameter
0.8 to 1.5
4x 35º sectors
1.5º angle
of a single line
N/A
0.03mm
$580.00
05-605
Pro-Star Version V
To determine
Focal Spot Size
55mm
Diameter
0.1 to 0.3
4x 45º sectors
0.5º angle
of a single line
N/A
0.03mm
$590.00
05-606
Pro-Star Version VI
To determine
Focal Spot Size
55mm
Diameter
0.1 to 0.3
4x 15º sectors
25º angle
of a single line
N/A
0.03mm
$465.00

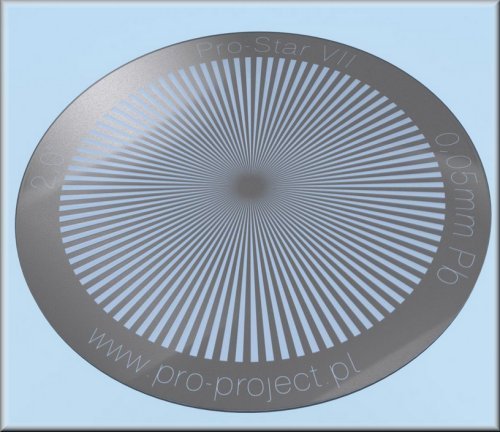

05-607
Pro-Star Version VII
To determine
Focal Spot Size
55mm
Diameter
1.0 and up
1x 360º
2ºangle
of a single line
N/A
0.05mm
$605.00
05-102-KIT
PRO-Stand, includes:
Stand, MAM Base
Alignment Verification
& Plastic Case
N/A
N/A
N/A
N/A
N/A
$1,850.00






       Line Pair / Resolution Test Phantoms.


Leeds Test Objects! Resolution Test Patterns by LEEDS.

Manufactured since 1955, these test patterns have become world renowned as a clinical standard for establishing the correct operating performance of X-ray machines following their adoption for clinical use by the U.K. Health Service (NHS) in 1973 and as a testing protocol by the U.K. Hospital Physicists' Association (I.P.E.M.) in 1979.
They are used worldwide to ensure the safety and image quality of X-ray, MRI, nuclear medicine and radiotherapy imaging systems.

These test patterns are designed for quick quantitative assessments of the limiting spatial resolution of an X-Ray system. The line pair patterns consist of a thin foil of Lead sandwiched between plastic plates. In the foil, linear slits are cut with a range of widths, these alternate with linear bars of the foil of equal width. One slit and one bar is referred to as a line pair, and the width of each group of lines is specified in terms of the number of line pairs per mm (LP/mm). The observer counts the number of groups in which he can resolve the slits from the bars and as such can determine the resolving capability of the x-ray system in terms of LP/mm. A wide range of pattern designs is available with varying ranges of LP/mm and foil thicknesses.


Stock #
Type
Lead Foil
Thickness
Range of
Line Pairs/mm
Your Price

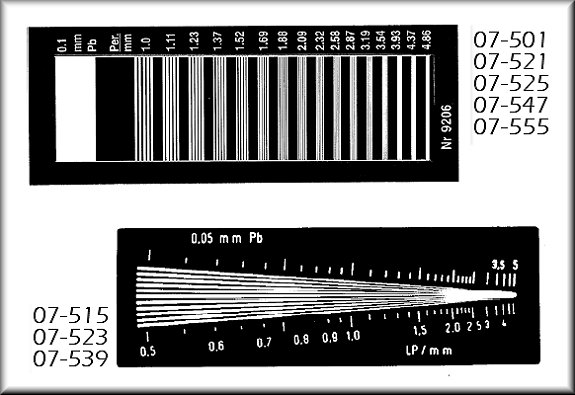

1-001
1
0.01
1.0 - 4.86
$925.00
1-005
1
0.05
1.0 - 4.86
$685.00
1-010
1
0.10
1.0 - 4.86
$685.00

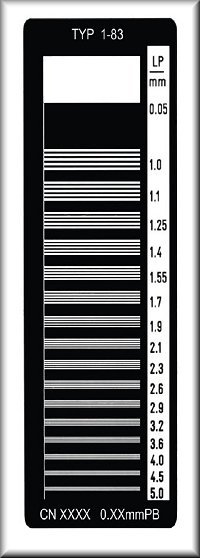

1-83-005
1-83
0.05
0.5 - 5.0
$685.00
1-83-010
1-83
0.10
0.5 - 5.0
$685.00

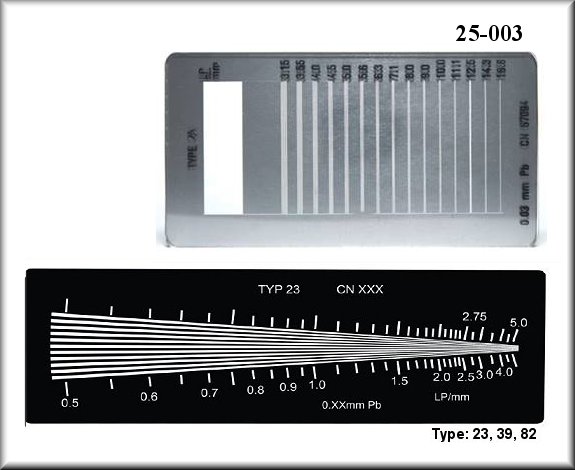

23-005
23
0.05
0.5 - 5.0
$547.00
23-010
23
0.1
0.5 - 5.0
$547.00

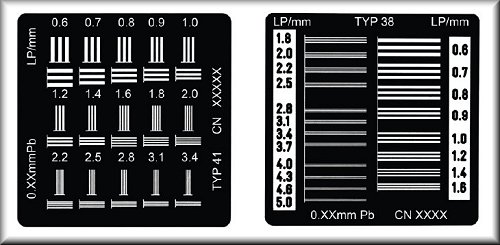

25-003
25
0.03
3.15 - 16.6
$1,215.50

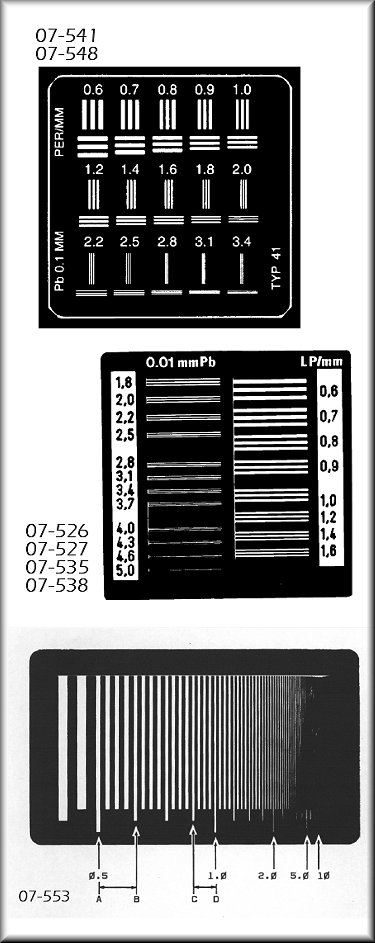

38-001
38
0.01
0.6 - 5.0
$621.27
39-002
39
0.02
1.5 - 20.0
$607.75
41-010
41
0.1
0.6 - 3.4
$900.00
42-008
42
0.08
2.0 - 6.0
$1,118.26
