| Industrial NDT Radiographic CR Test Phantom. |

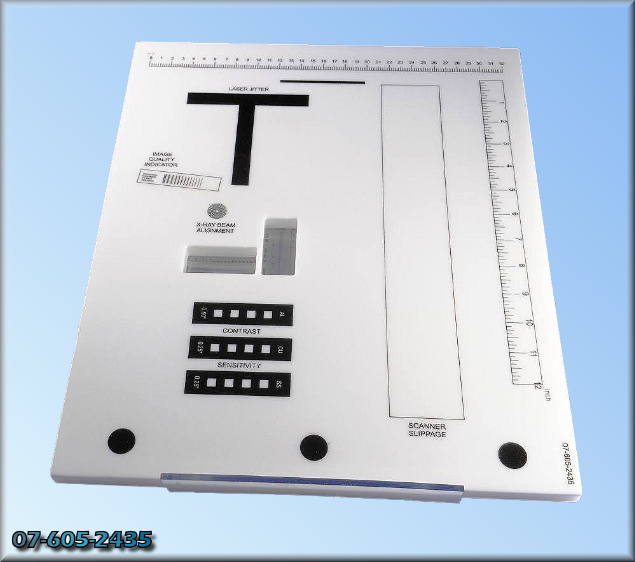

 | Model 07-605-2435 Non-Destructive Testing (NDT) Industrial Radiography CR Test Phantom is a timely and valuable addition
to the industrial computed radiography (CR) image quality-assurance program. Operators can easily perform quick and
reliable assessments of their CR systems. Today's new image acquisition chains are considerably more complex than conventional screen/film systems. CR systems involve special processing for each test image. This is controlled by computers, rather than chemical processors and soft copy displays, which are calibrated using light meters rather than visual inspection. CR systems also incorporate laser beams, photomultiplier tubes, network gateways and laser printers. Model 07-605-2435 is designed specifically for evaluating the entire CR image acquisition chain. Ideal for use as a preventive maintenance quality control test tool, Model 07-605-2435 can also be used to take regularly scheduled measured data points from the image, such as line pair resolution measurements, ROIs (regions of interest) and geometry symmetry. Measurements/angle can be used to evaluate monitor, as well as printed film image quality. By performing daily quality control checks, both before the first test image and at the end of the day, equipment problems can be accurately and easily pinpointed and corrected. Equipment downtime will also be significantly reduced, resulting in increased testing throughput. You'll soon realize a dramatic savings in film costs when making use of this phantom as part of your QC program. In addition, personnel will experience significantly less problems and frustrations associated with equipment maintenance. Key Features... Key Features...
Dimensions (L x W x H): 43.1 cm x 35.5 cm x 1.5 cm (17 in x 14 in x 0.5 in)
Weight: 2.2 kg (5 lb) |
 |
|
