       Pro-Project Pin-Hole Camera - Focal Spot Test Tool.


Pro-Project! The Pro-Pinhole Phantom is the so called pinhole camera for accurate measurement of the focal spot size according to IEC 60336:2005.

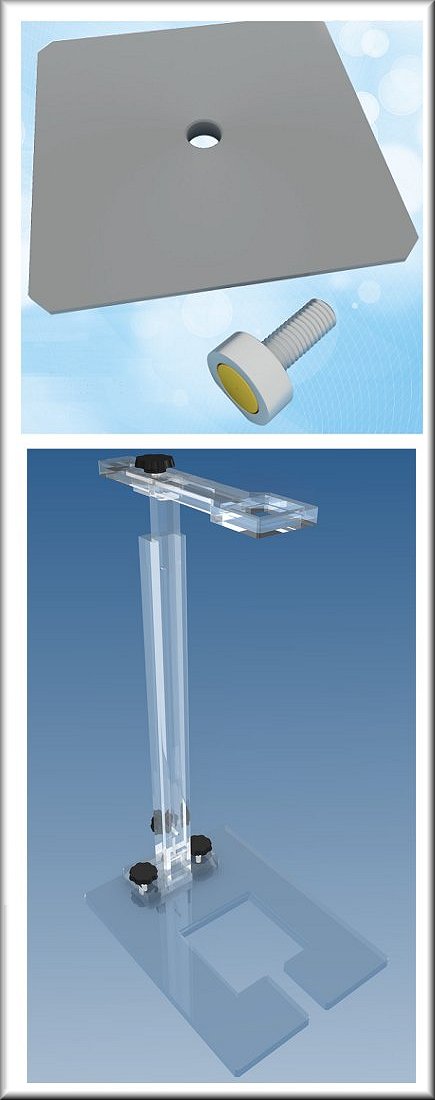

The Yellow Pinhole Phantom includes mounting screw and stainless steel mounting frame for Pro-Stand.

Its main advantages are:
* Repeatability
* Accuracy
* Options to measure the size of different focal spots.

Technical data (Can be modified to customer specifications):

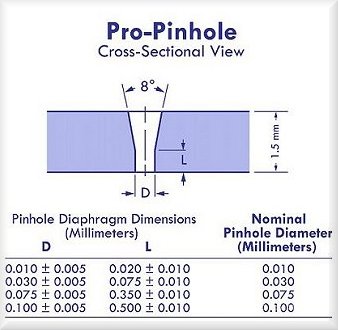

  • Diaphragm dimensions: Ø 5 x 1.5 mm
  • Diaphragm made from a 90:10 gold-platinum alloy
  • Four different pinhole diameters:
    – 0.010 mm for focal spot sizes from 0.5 to 0.10 mm
    – 0.030 mm for focal spot sizes below 1.0 mm
    – 0.075 mm for focal spots from 1.0 to 2.5 mm
    – 0.100 mm for focal spot sizes above 2.5 mm
  • Includes Mounting screw and stainless steel mounting frame for Pro-Stand


  • Product features: Complies with: – IEC 60336:2005, – IEC 61223-3-1, 2, 4, CE certified.
    Provided Manual includes detailed guidelines for carrying out each test, results assessment and registration.


    TECHNICAL Data for PRO-Stand:
    -Adjustable height from 350 mm to over 600 mm (wide range of magnification)
    -Adjustable horizontal position and vertical angle of the table top (optional - for testing mammography systems)
    -Place in the base for the Pro-Dent positioning stand for accurate positioning of dental RVG detectors
    -Optional add-ons for stand alignment verification – especially useful for measurements on mammography units
    -Optional wider arm for Pro-HVL filters
    -Optional heavy duty carrying case with two layer foam inlay


    Stock #
    Description
    Specify One Pinhole Size Below!
    Your Price
    05-701
    3 piece
    PRO-PinHole Camera

    Yellow PinHole is Exchangable
    0.010, 0.030, 0.075 or 0.100mm
    $1,385.00
    05-102
    PRO-Stand, Adjustable Stand
    NA
    $750.00
    05-105
    PRO-Stand Case
    With dedicated foam inlay for the Pro-Stand
    NA
    $450.00
    05-701-K
    KIT, all 3 above: 05-701, 05-102, 05-105
    NA
    $2,295.00
    05-103
    PRO-Stand MAM
    Additional Base for Slope Adjustment
    (ideal for mammo units)
    NA
    $325.00
    05-104
    PRO-Stand ALIGN, Alignment verification tools for PRO-Stand
    NA
    $125.00
    05-701-2K
    KIT, all 5 above: 05-701, 05-102, 05-105, 05-103, 05-104
    NA
    $2,600.00
