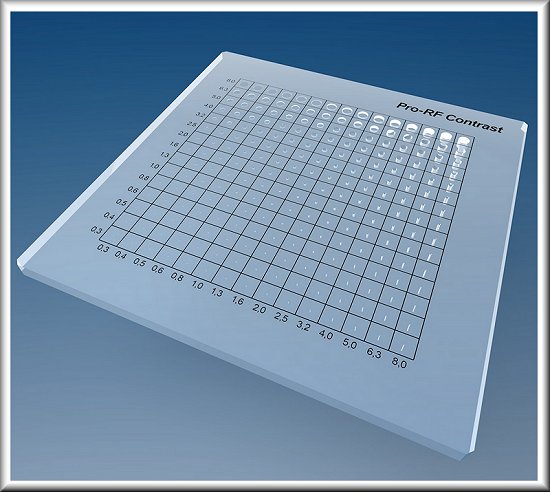

       Pro-Project's Pro-RF Contrast - Radiography Contrast Detail Phantom.

Pro-Project! The Contrast-Detail (CD) phantom makes it possible to quantify both detail and contrast as observed by the radiologist. It can be used within the entire range of radiography diagnostic imaging systems, such as fluoroscopy and angiography. It has 405 holes that generate subtle changes in contrast.

  • dimensions: 265 x 265 x 10mm ( 10.43" x 10.43" x .4" )
  • made of PMMA
  • 15 columns and 15 rows of holes
  • two cylindrical holes for each combination, except for the first 3 rows with the largest diameters
  • diameters of holes range from 0.3 to 8.0mm
  • depths of holes range from 0.3 to 8.0mm
  • tolerance of holes is at least 0.01mm
  • available in rectangular & circular shapes
  • all markings on the phantom are opaque for X-rays
  • additional Cu filters for different attenuation combinations

  • Optional Carry Case: order PN 02-110

    Complies with: – IEC 61223-3-1, CE certified, Manual provides detailed guidelines for carrying out each test, results assessment and registration.

    Stock #
    Your Price
    Rectangle or Round Choose one
    Optional Carrying Case
