       Pro-Slit Camera - Focal Spot Test Tool.

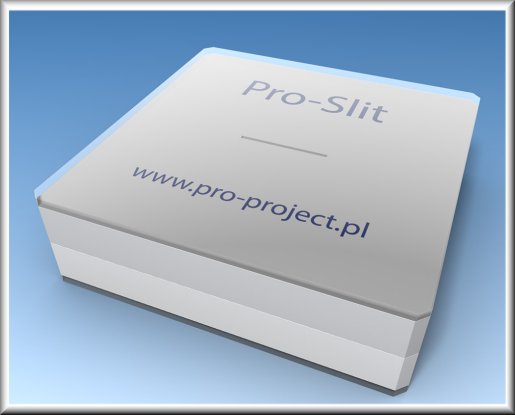

Pro-Project! PRO-Slit

The Pro-Slit phantom is the so called 'slit camera' for accurate measurement of the focal spot size according to IEC 60336:2005.

Its main advantages are:

  • Repeatability
  • Accuracy
  • Ability to measure the size of any focal spot

  • Because of the small attenuation of the outer cover this tool can also be used with dental digital detectors - detector receives enough radiation to be triggered.

    Technical data: (can be modified to customer specifications):
    Dimensions: 40 x 40 x 11.5 mm
    Dimensions: 0.01 mm wide and 10 mm long slit with 8° spread
    Material: Diaphragm made of tungsten

    Phantom is embedded in PMMA.

    Product features:
    Complies with: – IEC 60336:2005, – IEC 61223-3-1, 2, 4, CE certified.

    Included manual provides detailed guidelines for carrying out each test, results assessment and registration.
    Weight: 1.1#
