Pacific Northwest X-Ray Inc.

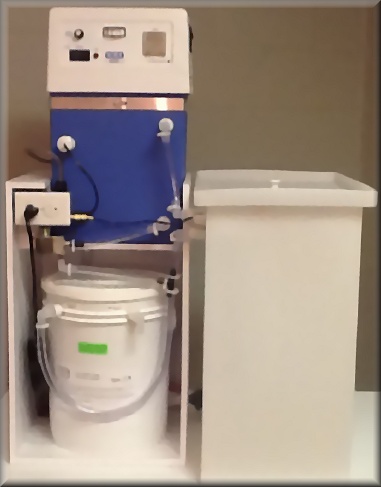

       Rotex Auto/Batch Silver Recovery Systems.


  • Combines Batch Electrolytic Desilvering with built-in steel wool "Tailings" canister for maximum silver removal.
  • Side Tank may be filled from catch bottles or connected directly to a number of film processors and/or transfer stations.
  • Optional 20 and 27 gallon side tanks will receive all the fixer from a processor fixing tank when drained for service.
  • Can be used inter-connected to provide a large central system (see illustration below)

  • How It Works...
    When enough fixer is in the side tank a pump automatically fills the recovery tank with a batch. A digital timer controls the batch cycle. When the timer reaches zero time left the desilvered fixer is drained into the "tailings" canister where it is contained until a following batch pushes it out. After 77 batches have been processed a lamp is lit on the control panel indicating that the plated silver should be removed from the cathode.

    NOTE: Available in 230/50hz




    SPECIFICATIONS
    Model Number
    Ultra-4
    Ultra-12
    Plating AMPS (DC)
    4
    12
    Max Recovery Rate
    0.5 T,O./Hr.7"
    1.5 T.O./Hr.
    Cathode
    7" dia x 4-1/2"L
    7" dia x 9"L
    AMPS (115V)
    2
    3


    Stock #
    Model #
    Electrolytic Cell
    Batch Size
    Side Tank Size
    Batch Time
    Tailing Canisters
    Height
    Width
    Depth
    Volts/Hz
    Your Price
    05511175
    AB4-7
    Ultra 4
    2-1/2 gal.
    7 Gallon
    2:30
    3-1/2 gal.
    30-1/8"
    20-1/4"
    18"
    115/60
    $2,900.00
    05511171
    AB4-20
    Ultra 4
    2-1/2 gal.
    20 Gallon
    2:30
    3-1/2 gal.
    30-1/8"
    27-1/4"
    18"
    115/60
    $3,162.00
    05511188
    AB12-7
    Ultra 12
    5 gal.
    7 Gallon
    2:30
    6 gal.
    39-3/4"
    20-1/4"
    18"
    115/60
    $3,575.00
    05511174
    AB12-20
    Ultra 12
    5 gal.
    20 Gallon
    2:30
    6 gal.
    39-3/4"
    27-1/4"
    18"
    115/60
    $3,837.00
