       Rotex Ultra Combo Models - For Film Processors.


 Rotex Ultra Combo Models

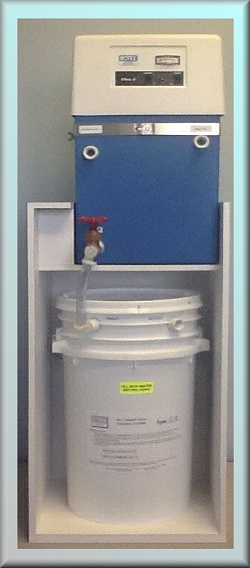

(For Film Processors) Rotex Ultra Combo Models combine the famous Rotex Ultra electrolytic silver recovery unit and the Rotex ReLoadable steel wool trailing canister into a single, handsome, space-saving package.

  • Reclaim up to 99% of available silver as clean electrolytic chip for maximum return and minimal refinery costs.
  • Remove silver tailings to satisfy environmental mandates. Mixtures of desilvered fixer, developer and wash water will usually contain less than 1 PPM total silver.


    • Models AUC44 and AUC128 have the Rotex automatic current control circuit board for use with processors that may be idle

    for periods of 3 hour or longer. The controller allows the plating current to be higher when high silver concentrations are present. Combo System AUC128 can be connected to two processors. Processors that are not idle for extended periods will maintain high silver concentrations and the standard Ultra may be used with good results.

  • Stand is covered with a hard plastic laminate.
    • ~ Hospital white
    ~ Easily wiped clean

  • Canisters may be refilled.
    • ~ Dry out the silver-bearing sludge to minimize freight and smelting costs.
    ~ Steel wool refills cost less than complete canisters.




    Stock #
    Model
    Description
    Connection
    Voltage/Amps
    Plating
    Amps (Max)
    ReLoadable
    Canister Gal./Wt.
    Height
    Width
    Depth
    Wt.(dry)
    Film per Hr.
    Your Price
    05511004
    AUC44
    2.5 Gal Ultra A-4 and ReLoadable M4
    115 / 1
    4
    3.5 / 4#
    30-1/8"
    15"
    14"
    46
    14
    $1,929.00
    05511005
    AUC44-5
    5 Gal Ultra A-4 and ReLoadable M4
    115 / 1
    4
    3.5 / 4#
    30-1/8"
    15"
    14"
    46
    14
    $2,003.00
    05512537
    AUC78
    5 Gal








    $2,175.00
    05511006
    AUC128
    5.0 Gal Ultra A-12 and ReLoadable M8
    115 / 1
    12
    5.0 / 8#
    36-5/8
    15"
    14"
    62
    40
    $2,377.00
