Pacific Northwest X-Ray Inc.

       Rotex Micro Mix Mini Lab Combo.
  • Economical - Pays for itself in less than a year!
  • Low Cost.
  • Easy to Operate.

    • Desilvers C-41 fixer and stabilizer; RA-4 bleach-fix and stabilizer; EP-2 bleach-fix and low-flow wash; E-6 fixer; black and white fixers.

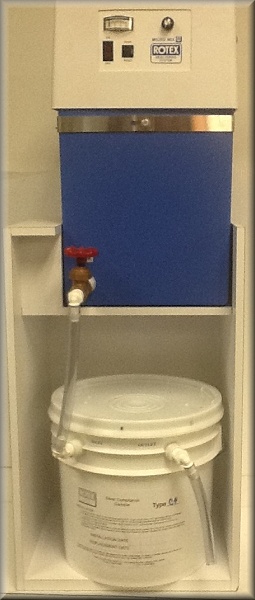

    Rotex Micro Mix Combo models combine the famous Rotex Micro Mix electrolytic silver recovery units with Rotex ReLoadable steel wool tailing canisters positioned on Formica stand to save floor space.
    1. Removes up to 99% of silver from solutions as a 92-98% pure silver chip for lowest smelting and freight costs to maximize silver income.
    2. Can remove silver tailing down to 1 PPM as required for environmental protection.
    Estimates based on current recommended replenishment rates indicate that a 2 1/2 gallon mixture of C-41 fixer and stabilizer will contain 1 Troy Ounce of silver. 2 1/2 gallon mixture of C-41 fixer and stabilizer and EP-2 bleach fix and low flow wash will contain 1.27 Troy Ounces. 2 1/2 gallons of E-6 fix sill contain 3/8 of a Troy Ounce when replenished at the recommended 100 ml/square foot. If replenishment is reduced, the silver concentration will be proportionately higher.



    Calculating Silver Returns...
    In 1987 the average independent mini lab processed an average of 61 rolls per day, or 427 rolls per week and 22,204 rolls per year. This average mini lab using RA-4 paper, would desilver 270 batches (2 1/2 gallons) (22,204 divided by 82) to recover 262 Troy Ounces (270 x 97%) electrolytically. The balance, 8 Troy Ounces, would be trapped in the steel wool canister or lost. 262 Troy Ounces may be sold for 85 to 92% of the "spot price" quoted by Handy & Harmon in most daily newspapers. At a $5.00 "spot price" the 262 Troy Ounces will return $1,113.50 to 1,205.20. A similar volume using EP-2 paper will return up to 27% more.

    Process RA-4 Color Print Paper...
    Note that RA-4 bleach fix has a pH value of approximately 6.5 so that it functions as a stop bath. To remove silver efficiently from RA-4 bleach fix the pH must be raised to at least 7.5 or "until ammonia fumes are released". This is most easily accomplished by adding sodium hydroxide or ammonium hydroxide. Process EP-2 typically has a pH of 8 and usually does not require adjustment unless an unusual amount of C-41 or E-6 is present in the mixture.

    Black and White...
    Black and white fixers may also be desilvered in Micro Mix Combos at reduced plating currents. MMC 10 and MMC 10-5 will recover 1/2 Troy OPunce per hour when set at 4 amperes plating current. MMC 25 will recover 1 1/2 Troy Ounces per hour when set at 12 amperes plating current. Rotex also offers lower cost Ultra Combos for labs that do not require color capability.

    Plating current shown is the maximum recovery rate for typical mixtures of C-41 and RA-4 pr EP-2 with a pH value of 7.5 or higher. Plating capacity is sharply reduced as silver concentrations are depleted.


    Stock #
    Rotex Model #
    Series Name
    Configuration
    Included Items.
    Tank Cap.
    Batch Size
    Batch Time (H:MM)
    Max Plating
    Current
    Max Recovery
    Rate
    Height
    Width
    Depth
    Weight
    Your Price
    05511169
    MMC 15-7
    Mini-Mix Combo
    Automatic Batch
    Collection tank, Stand, Fill pump,
    Auto drain valve, and C4 Tailing canister.
    7 Gallons
    2½ Gallons
    2:30 @ 3gr/L(3000 PPM) Ag
    5:00 @ 6g/L (6000 PPM) Ag
    15 Amps
    0.5 Troy
    oz/Hr
    30-1/8"
    20¼"
    18"

    $2,744.00
    05511857
    MMC 15-20
    Mini-Mix Combo
    Automatic Batch
    Collection tank, Stand, Fill pump,
    Auto drain valve, and C4 Tailing canister.
    20 Gallons
    2½ Gallons
    2:30 @ 3gr/L(3000 PPM) Ag
    5:00 @ 6g/L (6000 PPM) Ag
    15 Amps
    0.5 Troy
    oz/Hr
    30-1/8"
    27¼"
    18"

    $2,856.00
    05511859
    MMC 30-7
    Mini-Mix Combo
    Automatic Batch
    Collection tank, Stand, Fill pump,
    Auto drain valve, and C4 Tailing canister.
    7 Gallons
    5 Gallons
    2:30 @ 3gr/L(3000 PPM) Ag
    5:00 @ 6g/L (6000 PPM) Ag
    30 Amps
    1.5 Troy
    oz/Hr
    30-1/8"
    20¼"
    18"

    $3,259.00
    05511860
    MMC 30-20
    Mini-Mix Combo
    Automatic Batch
    Collection tank, Stand, Fill pump,
    Auto drain valve, and C4 Tailing canister.
    20 Gallons
    5 Gallons
    2:30 @ 3gr/L(3000 PPM) Ag
    5:00 @ 6g/L (6000 PPM) Ag
    30 Amps
    1.5 Troy
    oz/Hr
    30-1/8"
    27¼"
    18"

    $3,394.00
    05511008
    MMC 10
    Micro-Mix Combo
    Manual Batch
    Stand, Manual drain valve,
    and Tailing canister.
    2½ Gallons
    2½ Gallons
    2½ Hrs for 82 rolls(5x7/24print) in RA4/C41 Fix
    3.0 Hrs for 82 rolls(5x7/24print) in EP2/C41 Fix
    1½ Hrs for 95 rolls(5x7/24print) in E6 Fix
    15 Amps
    0.5 Troy
    oz/Hr
    30 1/8"
    15"
    14"
    46 lbs.
    $1,593.00
    05511010
    MMC10-5
    Micro-Mix Combo
    Manual Batch
    Stand, Manual drain valve,
    and Tailing canister.
    5 Gallons
    5 Gallons
    5.0 Hrs for 163 rolls(5x7/24print) in RA4/C41 Fix
    6.0 Hrs for 163 rolls(5x7/24print) in EP2/C41 Fix
    3.0 Hrs for 190 rolls(5x7/24print) in E6 Fix
    15 Amps
    0.5 Troy
    oz/Hr
    36 5/8"
    15"
    14"
    52 lbs.
    $1,667.00
    05511012
    MMC25
    Micro-Mix Combo
    Manual Batch
    Stand, Manual drain valve,
    and Tailing canister.
    5 Gallons
    5 Gallons
    2½ Hrs for 163 rolls(5x7/24print) in RA4/C41 Fix
    3.0 Hrs for 163 rolls(5x7/24print) in EP2/C41 Fix
    1½ Hrs for 190 rolls(5x7/24print) in E6 Fix
    30 Amps
    1.0 Troy
    oz/Hr
    36 5/8"
    15"
    14"
    62 lbs.
    $2,171.00
    05510119
    MM 10
    Micro-Mix
    Manual batch
    No stand or Tailing canister.
    2½ Gallons
    2½ Gallons
    2½ Hrs for 82 rolls(5x7/24print) in RA4/C41 Fix
    3.0 Hrs for 82 rolls(5x7/24print) in EP2/C41 Fix
    1½ Hrs for 95 rolls(5x7/24print) in E6 Fix
    15 Amps
    0.5 Troy
    oz/Hr
    15.2"
    (38.6cm)
    13.0"
    (33.0cm)
    13.5"
    (34.3cm)
    30lbs
    (66kg)
    $1,288.00
    05510701
    MM 10-5
    Micro-Mix
    Manual batch
    No stand or Tailing canister.
    5 Gallons
    5 Gallons
    5.0 Hrs for 163 rolls(5x7/24print) in RA4/C41 Fix
    6.0 Hrs for 163 rolls(5x7/24print) in EP2/C41 Fix
    3.0 Hrs for 190 rolls(5x7/24print) in E6 Fix
    15 Amps
    0.5 Troy
    oz/Hr
    20.2"
    (51.3cm)
    13.0"
    (33.0cm)
    13.5"((34.3cm)
    35lbs
    (77kg)
    $1,362.00
    05510703
    MM 25
    Micro-Mix
    Manual batch
    No stand or Tailing canister.
    5 Gallons
    5 Gallons
    2½ Hrs for 163 rolls(5x7/24print) in RA4/C41 Fix
    3.0 Hrs for 163 rolls(5x7/24print) in EP2/C41 Fix
    1½ Hrs for 190 rolls(5x7/24print) in E6 Fix
    30 Amps
    1.0 Troy
    oz/Hr
    20.2"
    (51.3cm)
    13.0"
    (33.0cm)
    13.5"
    (34.3cm)
    48lbs
    (101kg)
    $1,866.00
