Pacific Northwest X-Ray Inc.

       Rotex Ultra Jr., Compact Silver Recovery Units.


  • Low Cost
  • Efficient
  • Long Life
  • Fully Adjustable Recovery Rate*

  • * Ultra Jr+ Only!

    Features
  • Use in conjunction with ReLoadable Model M-4 steel wool tailing canister for best economics and silver removal.
  • Collects high purity Electrolytic recovery of silver from X-ray, graphic arts, typesetting, microfilm fixers and C-41 fix and stabilizer.
  • One gallon tank for small batches - ideal for smaller producers. Larger tanks available.
  • Optional inlet and outlet fittings for direct connection to small processors.
  • Ultra Jr.+ features Adjustable plating current. This allows connection to processors which use as little as 1.0 gallons of fixer per 8 hour shift!

  • Batch Configuration...

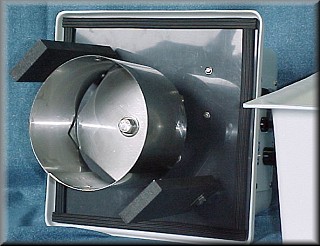

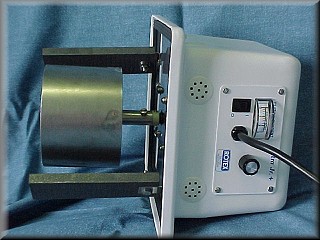

    To fill the Ultra Jr., the power head is lifted off the Recovery Tank. A one gallon batch may contain 3/8 to 1/2 Troy ounce of silver and will require 3 to 4 hours to remove up to 99% of the silver. The drain valve is then opened and the fixer is drained into a Rotex steel wool canister. Model M4 Steel Wool Canister will hold 2 batches and no overflow will occur until the 3rd batch is processed.


    Flow-Through Configuration...
    The Ultra Jr. inlet is connected to the processor overflow and the Ultra Jr. outlet is connected to a Rotex Model M8 Canister. Typical flow rates are 1-1/2 gallons per day on "Low" and 2 gallons per day on "Hi". Lower flow rates are better suited for batch desilvering. Larger Ultra units are available for higher flow rates.

    Specifications:
    Tank Capacity: 1 gallon (3.8 Litres)
    Height: 13-1/2 inches (34.3cm)
    Width: 9-1/4 inches (23.5cm)
    Depth: 9-1/4 inches (23.5cm)
    Weight (Dry): 8.75 lbs. (4 Kg)
    Plating Current: 2.8 Amperes max. 0.2 to 2.8 Amps Adjustable (Ultra Jr+ model only!)
    Recovery Rate: 10.9 grams per hour (.35 T.O.)
    Line Volts: 115VAC/60Hz-Default (Optionally available 230VAC/50Hz - Must specify when ordering!!)
    Line Current: 1.5 Amperes

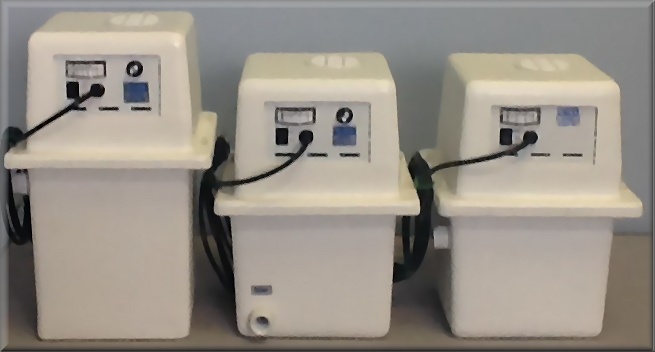

    Stock #
    Model
    Description
    Configuration
    ..and..
    Features
    Adjustable
    plating
    current?
    Power Requirements
    Your Price
    05510719B
    Ultra Jr.
    Batch
    No
    115VAC/60Hz or...
    Special Order 230VAC/50Hz.
    $1,140.00
    04310256
    Optional drain valve,
    installed



    $64.00
    05510717F
    Ultra Jr.
    Flow-Through
    with Inlet/Outlet Fittings.
    No
    115VAC/60Hz or...
    Special Order 230VAC/50Hz.
    $1,192.00
    05510676
    Ultra Jr.+
    Power Dial Control
    Includes Fittings.
    Yes
    115VAC/60Hz or...
    Special Order 230VAC/50Hz.
    $1,308.00
    05512457
    Ultra 4C
    Power Dial Control
    Includes Fittings.
    Yes
    115VAC/60Hz or...
    Special Order 230VAC/50Hz.
    $1,464.00
