Pacific Northwest X-Ray Inc.

       Phantom High Frequency Portable X-Ray Unit.


In designing the Phantom High Frequency X-Ray System, DynaRad addressed your professional demands and...... portability.



  • SUPERIOR IMAGE QUALITY.
  • HIGH FREQUENCY OUTPUT.
  • MICROPROCESSOR CONTROL.
  • ELECTRONIC REGULATION OF kVp AND mAs.
  • EXTREMELY LIGHTWEIGHT
  • IDEAL FOR HOME HEALTHCARE

    • The DynaRad Concept in Portable Radiography

    When portability, performance and cost are important, DynaRad has the answer. DynaRad portables are the first choice for incomparable image quality at a price that meets cost containment goals.

    DynaRad portables are designed for years of reliable, low maintenance operation and are ideally suited for radiographic applications, ranging from home healthcare to hospital-quality imaging performed anytime...anywhere.




    Specifications
    Description
    Features
    Benefits
    Applications
    Ergonomically designed for superior operation during portable X-ray applications
    Used in hospitals, medical centers, clinics, sports complexes, nursing homes, home healthcare, correctional facilities & military applications.
    Generator Type
    High Frequency Inverter Microprocessor Controlled
    1.25 kW Regulated for both mA & kV
    kVp Range
    50-100
    Adjustable in 1 kVp steps for optimum resolution
    mA
    12.5
    Constant independent of kVp or time settings
    mAs Range
    0.125-50
    Optimum mAs range
    Exposure Time
    0.01-4.0 seconds
    96 steps for accurate technique programming
    X-Ray Tube
    15 degree Target Stationary Anode 25,000 Heat Unit Storage
    Full 360 degree horizontal rotation, 270 degree tube axis rotation
    Focal Spot Target
    1.0 mm (NEMA)
    Maximum resolution for superior image quality
    Collimator
    D-180HS-G
    360 degree rotation with high output halogen lamp
    Exposure Switch
    2 Position (Prep-Exp)
    12 ft. long cable
    Cassette Storage
    Included
    Stores up to 7 @ 14 x 17's
    Tube/Column Locks
    Heavy Duty/Manual
    Friction type for fast & easy operation
    Braking System
    Heavy Duty/Lever Type Manual
    Assures proper position is maintained

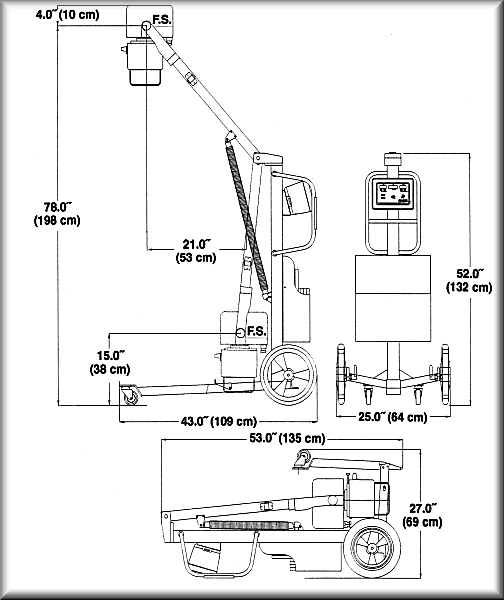

    System Dimensions

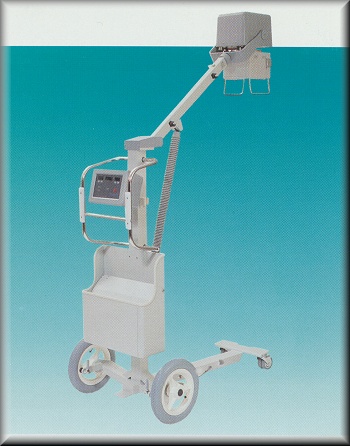

    Operational Mode:25"W x 43"L x 52"H
    Easily maneuvered, stored & transported

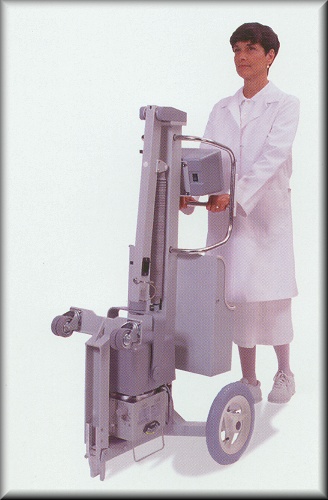

    Storage Mode:23"W x 53"L x 27"H
    2-step folding procedure

    SID
    15" - 78" from floor
    Optimum SID range
    Wheels
    12" inflatable
    Soft for easy transportation
    Weight
    95 lbs.
    Lightweight-User friendly
    Electrical Specifications
    103-126 VAC, 50/60 HZ
    Broad operational range
    207-253 VAC, 50/60 HZ
    Plugs into regular wall outlet
    Product Compliance
    FDA 510(k), UL, CUL, CE, TUV, IEC601-1 & 1-2-7
    Certified to 21 CFR subchapter 21 Electromagnetic compatible




    Stock #
    Description
    Your Price
    PHANTOM
    Portable X-Ray System.
    $11,753.00
