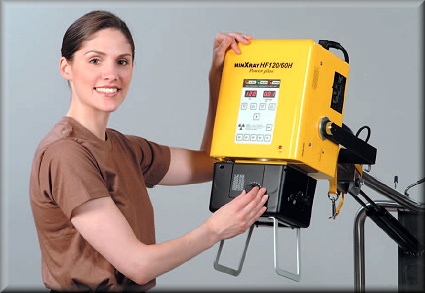

       MinXray HF120/60HPPWV Power Plus Portable X-Ray System.


MinXray!
The break-through electronic design of MinXray's new PowerPlus makes it the most powerful portable high-frequency x-ray unit pound-for-pound available today.

Important features include:

  • High Frequency (80kHz) Output
  • Unique HighBurst™ electronic design.
  • Up to 120 kVDC and Over 200 mAs.
  • Operation on input of 100-260 V, 50/60 Hz (auto sense & switch).
  • CPU control of x-ray tube.
  • 5 Memory stations for storing x-ray exposure techniques.
  • mAs and time readouts (switchable by toggle).
  • Low voltage warning light.
  • Compatible with all digital imaging modalities
  • Seamless integration with existing MinXray stands


  • Consistent with today's high tech electronic environment, the PowerPlus™ features a CPU to control all functions. The result is more power, less weight, superior performance and less maintenance.

    Specifications

    Construction: Monobloc High Frequency generator, full bridge inverter
    Output (kVDC): 60/42 mA @ 40-50 kVDC; 50/35 mA @ 52/60 kVDC; 45/31.5 mA @ 62-70 kVDC; 38/26.6 mA @ 72-80 kVDC; 33/23.1 mA @ 82-90 kVDC; 30/21 mA @ 92-100 kVDC; 20/14 mA @ 102-120 kVDC
    kVDC steps: 41 steps; 2 kVDC increments
    mAs: 0.6 - 212 mAs
    Timer: 0.01 - 0.2 sec: 0.01 sec steps; 0.2 - 0.4 sec: 0.02 sec steps; 0.04 - 1.0 sec: 0.05 sec steps; 1.0 -5.0 sec: 0.1 sec steps
    X-ray Tube: Superior SXR-130-15-1.2
    Focal Spot: 1.2 mm
    Anode Heat Storage: 65 kHU






    Total Filtration incl. Collimator: 3.2 mm Al equivalent
    Frequency: 80 kHz
    Line Voltage: 100-260 VAC; 50/60 Hz
    Fuse Rating: 30 A
    Electrical Consumption: 19 A @ 120 V; 9 A @ 230 V
    Maximum Consumption: 3.5 kVA +/- 10%
    System Net Weight: 96.5 lb (43.8 kg)
    Tubehead Dimensions: 16"L x 8.8"W x 9.5"H (40.6 cm x 22.4 cm x 23.9 cm)
    Tubehead Weight: 38.6 lb (17.5 kg)
    Collimator: Advantech R-72 Continuously adjustable light beam type with central beam x-ray indicator
    Power Cord: 20 feet (6.1 m)
    Exposure Cord: 8 feet (2.8 m)

    Warranty:
    3 years on everything except the collimator lamp. Lamp has no warranty.


    Stock #
    Description
    Your Price
    HF120/60HPPWV
    MinXray High Frequency Power Plus Portable X-Ray System
    $19,305.29
    HF120/60HCC
    Optional Carrying Case for HF120/60HPPWV Portable
    $711.00
    XGSMKIVLW

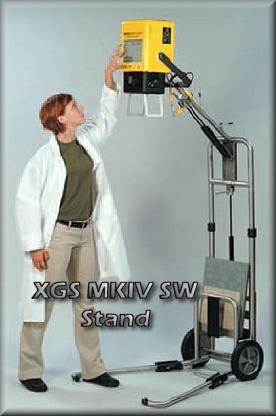

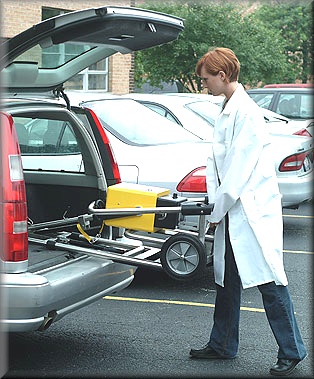

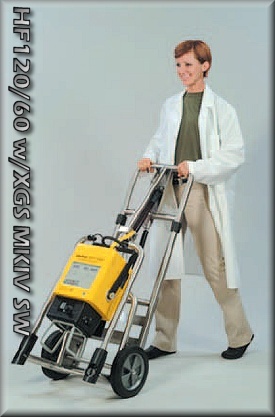

    Optional Gas Spring Portable Mobile Stand w/16" Wheels
    $4,259.00
