Pacific Northwest X-Ray Inc.

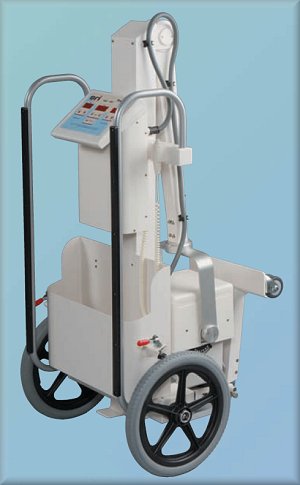

       Source-Ray PowerMax 1260 High Frequency Portable X-Ray System.

Source-Ray! Features...
  • Maximum Power Output
  • 3.0 kW Across Full Range
  • 120 kV, 15 - 60 mA
  • High Frequency - Power Factor Correction
  • Universal Input Voltage
  • Microprocessor Control
  • CR/DR Compatible
  • Light Weight
  • Designed for Reliability
  • Durable Powder Coat Finish
  • Limited 3 year warranty

  • PowerMax 1260 provides maximum power,state of the art technology, system reliability andlow maintenance, all in a small footprint, lightweight package.

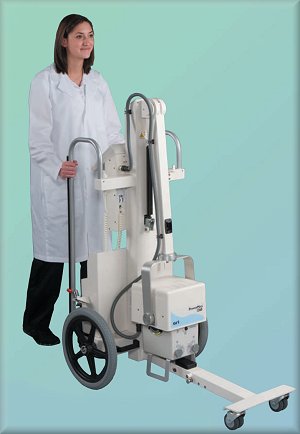

    The PowerMax 1260 was designed with agility in mind. Its compact, lightweight construction makes it easy for the operator to move the system effortlessly. Delivering maximum mR/mAs, the PowerMax 1260 produces 3kW of power across the entire kV range.With its constant 3kW output, the PowerMax 1260 provides hospital quality imaging and offers an easy upgrade path for clinical sites transitioning to Digital Imaging.

    The PowerMax 1260 provides the power required to compensate for the slower operating speeds of CR Systems, and is the ideal High Power portable x-ray system for organizations considering the purchase of CR Systems.

    The PowerMax 1260 is suitable for use in Hospitals, Urgent Care Facilities, Medical Examiner Offices, Nursing Homes, Home Healthcare, Orthopedic Practices, Sports Medicine, Correctional Facilities, and Military Field Deployable Applications. See why Source-Ray continues to set the Standard for Quality Portable Imaging Solutions.


    Generator: High frequency resonant inverter
    Power: 3.0 kW across full range
    Input Voltage: 110 - 230 VAC 50/60 Hz
    kVp Range: 40 - 120 kVp, adjustable in 1 kV increments - Closed loop regulation Power Factor Correction
    mA Range: Adjustable, 15 mA - 60 mA - closed loop regulation
    mAs Range: 0.125 - 200
    Exposure Time: 0.01 - 3.33 seconds

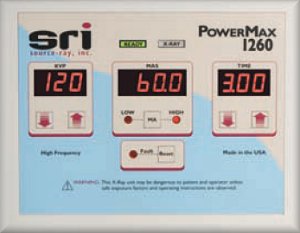

    Indicators: Digital display of kVp, mAs and Exposure Time X-Ray, Ready, mA Station and Fault indicators.
    Filtration: 3.6 mm al minimum @ 100kVp, 4.3 mm al minimum @ 120kVp
    Exposure Switch: Detachable two-position

    X-Ray Tube Stationary Anode 130 kVp
    Target Material: Tungsten
    Anode Capacity: 30,000 HU Storage
    Focal Spot: 1.2 mm
    Target Angle: 15°

    Collimator: Collimare CP-100-24-C
    Laser Crosshairs: Center Locator
    Tape Measure: SID Measurement
    Inclinometer: Angle Measurement

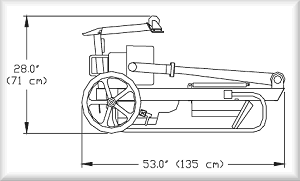

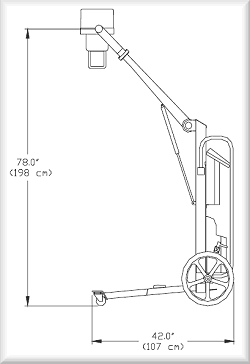

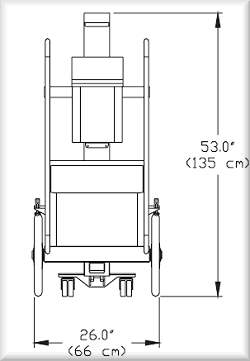

    Model SR-1260 Travel Stand
    Min. F/S to Floor: 13" / 33 cm
    Max. F/S to Floor: 78" / 198 cm
    Hor. Ext. of F/S: 21" / 53 cm
    Hor. Rotation: 200°
    Tube Rotation: 270°

    System Weight: 110 lbs. / 45 kG

    Stock #
    Your Price
    PowerMax 1260 Portable X-Ray System
    Digital Ready Version SR-1260 with provisions for
    adding onboard panel storage, computer/etc.
    Loading Ramps, Folding Set (6")
    Bar, Ramp Stabilizer
