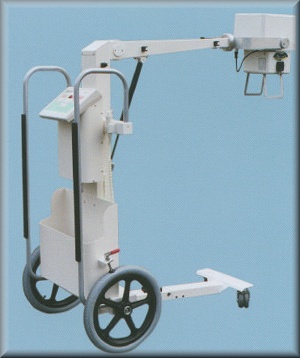

       Source-Ray SR-130 High Frequency, Film/CR Based Portable X-Ray System.


Source-Ray!
  • High Frequency
  • Microprocessor Control
  • High Power Output (3.0 kW)
  • Light Weight
  • Maximum mR/mAs
  • Designed for Reliability
  • Durable Powder Coat Finish


  • The Model SR-130 provides high power, state of the art technology, system reliability and low maintenance all in a small footprint, lightweight package.

    The SR-130 is designed with agility in mind, it's compact, lightweight construction makes it easy for the operator to move the system effortlessly.

    The SR-130 is a user friendly system designed for high reliability and the durability required for the Diagnostic Outreach market.

    Delivering maximum mR/mAs, the SR-130 produces 3 kW of power that provides hospital quality imaging performed anywhere, anytime a portable X-Ray System is transported to a patient.

    Since the SR-130 weighs significantly less than other systems that produce less output, it offers invaluable maneuverability around beds and other essential equipment in tight areas where space is at a premium.

    Utilizing a small foot print, the SR-130 is an ideal system to transport in small vehicles that are economically viable


    for Diagnostic Outreach Services.

    The SR-130 can be used in hospitals, clinics, nursing homes, private homes, orthopedic practices, sports medicine, correction facilities and military field deployable applications.

    Electrical Requirements/Specification
    115 VAC, 50/60 Hz
    230 VAC, 50/60 Hz
    Unit is supplied with 15' Line Cord w/Hospital Grade NEMA 5-15P Plug!

    Mechanical Specifications
    Minimum F/S to Floor: 13" / 33cm
    Maximum F/S to Floor: 79: / 198cm
    Horizontal Extension of F/S: 21" / 53cm
    Rotation - Horizontal Axis: 200°
    Rotation - Tube Axis: 270°
    Exposure Cord: 12' Coiled Cord

    System Dimensions
    Operating Mode: 26"W x 42"L x 53"H

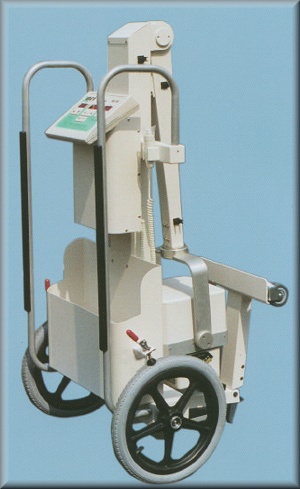

    Storage Mode: 26"W x 53"L x 28"H
    System Weight: 105 lbs. / 48kg

    Warranty: Limited Three Year

    Complies with DHHS Radiation Standard 21 CFR Subchapter J
    PLEASE NOTE: We are currently unable to sell this unit outside of the United States - no exceptions.






    Stock #
    Description
    Your Price
    900003
    SR-130 Portable X-Ray System
    $17,005.00
    SR-130-DR
    Digital Ready Version SR-130 with provisions for
    adding onboard panel storage, computer/etc.
    $22,250.00
    420059
    Loading Ramps, Folding Set (6")
    $613.00
    420060
    Bar, Ramp Stabilizer
    $119.00


    Electical Specifications
    Generator
    High frequency resonant inverter - 3.0 kW
    kVp Range
    40-100 kVp, adjustable in 1 kV increments - closed loop regulation
    mA Range
    Fixed, 15 mA and 30 mA - closed loop regulation
    mAs Range
    0.15 - 120
    Exposure Time
    0.01 - 4.00 seconds
    Indicators
    Digital display of kVp, mAs and Time. X-Ray, Ready, mA station and Fault indicators.
    Exposure Switch
    Detachable two position (prep/x-ray) hand switch
    X-Ray Tube
    Stationary Anode 110kVp
    Filtration
    2.7mm al minimum
    Target Material
    Tungsten
    Anode Capacity
    30,000 HU Storage
    Focal Spot
    1.0 mm
    Target Angle
    15 degrees
    Collimator
    Advantech R72/32-ET
    Tape Measure
    SID Measurement
    Inclinometer
    Angle Measurement
