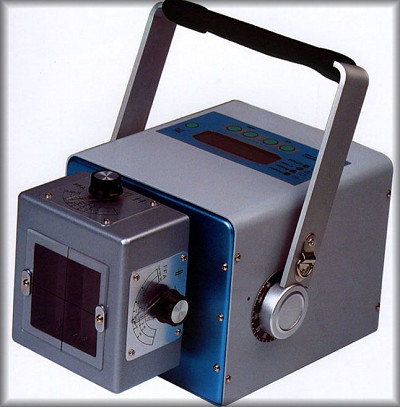

       Soyee High Frequency Portable X-Ray Unit.


Soyee Products! The SY-HF-110 is a new model High Frequency portable X-Ray unit from Soyee. The SY-HF-110 is a compact, high-powered X-Ray system for improved image quality. The high frequency output provides shorter exposure times - reducing the potential for motion bluring and a re-take. The operator selects kVp and mAs needed, and the internal microprocessor selects the optimized time/mA combination.

Generator...
Constant Potential Output: 2.5kW
Maximum Tube Voltage: 110kV
Maximum Tube Current: 40mA
mAs Range: 0.3-50
Inverter Frequency: 50kHz
Dimensions (W x D x H): 340mm X 261mm X 200mm.

Output Combinations...
mA
kVp range
(2kV Steps)
mAs Range
40
40 - 48
0.3 - 50
40
50 - 58
0.3 - 40
35
60 - 68
0.3 - 32
35
70 - 78
0.3 - 32
30
80 - 88
0.3 - 32
30
90 - 98
0.3 - 25
25
100 - 104
0.3 - 20
25
106 - 110
0.3 - 20



Collimator...
Collimator Lamp: 24V, 100W
Max X-Ray Field Size: 35cm X 35cm @ 60cm SID.
Min X-Ray Field Size: 5cm X 5cm @ 100cm SID.
Average Field Illumination: 100Lux.
Inherent HVL Filtration: 0.7mm Al.
Field Lamp On Time: 30 Seconds.
Dimensions (W x D x H): 150mm X 82mm X 132mm.

X-Ray Tube...
Insert Type: Toshiba D125.
Min/Max Rated Voltage: 40kVp/125kVp.
Max Filament Current: 3.1amps
Max Tube Current: 40ma DC
Target Angle: 16°
Inherent HVL Filtration: 0.8mm Al.
Anode Heat Storage Capacity: 50kHU (35 kJ).
General System Specifications...
Power Input: 50/60Hz,100-130V or 208-250V (Standard Wall Power)
Weight: 30Lbs(13.6kgs)
Temperature Range (Operation/Storage): 5°C-40°C / -20°C-70°C

Includes: Generator, collimator, power cable (5 meters long), Hand Switch with 2 meter cord, and hard sided carrying case which measures 12 1/4" x 12 1/4" x 15 3/8" (31x31x39cm) and weighs 9lbs (4.1kg).

Please Note: This unit is NOT FDA approved for human use in the USA!


Stock #
Your Price
SY-HF-110
$9,857.15

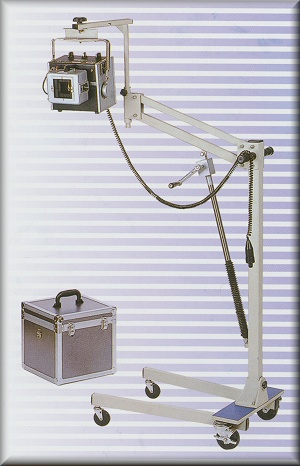

       Mobile Stand For Soyee Portable X-Ray Units.
Soyee Products!
  • With two swivel wheels for convenience of movement and two locking wheels for stationary positioning and location.
  • Top=20lbs., Base=38lbs., Total=58lbs.

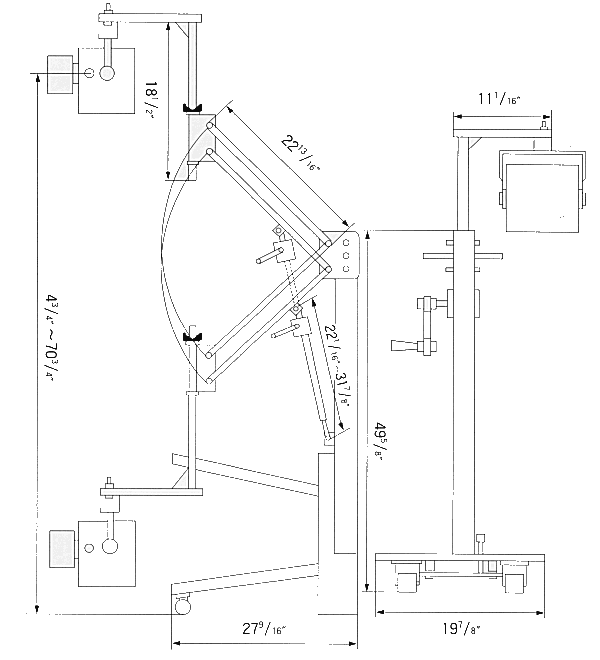

  • Click here to see the dimensions of this Mobile Stand.


  • Stock #
    Your Price
    Soyee-Mobile
    $1,354.40
