       X-Ray Dose & Exposure Time Meter.

Electronic Control Concepts! X-Ray Dose and Exposure Time Meter.

  • Measures x-ray dose.
  • Measures dose rate.
  • Measures exposure time.
  • Selectable English and metric units.
  • Easy to use.
  • Works with AC or DC x-rays.
  • No need to set for AC/DC.
  • High accuracy.
  • Battery operated.
  • Two year warranty.
  • Custom carrying case option.
  • Solid state digital design.
  • Durable ABS plastic case.

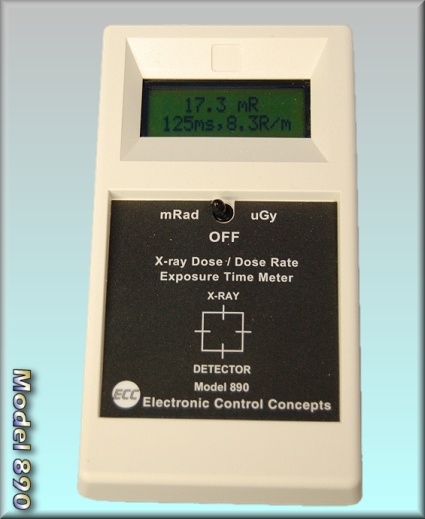

  • The ECC Model 890 Dose Meter / Exposure Time Meter is specifically designed to measure x-ray dose. The instrument is used to measure the effective dose produced by diagnostic x-ray generators. The ECC Model 890 is a solid-state, digital instrument designed specifically for service personnel in assessing the performance of radiation generators and the effective dose delivered by the x-ray generator under specific test conditions. This instrument measures the amount of x-ray radiation delivered to a specific area and measures the length of an exposure. The Model 890 can be used for dental x-ray units, radiographic and fluoroscopic x-rays.

    The Model 890 automatically resets at the beginning of each exposure, holding the reading until the next exposure. There is no need to reset the meter before each measurement.

    The Model 890 is a small hand held battery operated unit. Each x-ray exposure is displayed on a 2x12 digit liquid crystal display (LCD). The operator can select between English (mR) and SI (uGy) units.

    Radiation is detected by a solid state detector and electronic circuit. The instrument works for half-wave, full-wave, multiphase or DC (constant potential) x-ray generators. When a measurement is being made, the Model 890 has the capability of automatically determining the type of x-ray that is being measured. It is not necessary for the user to program correction factors for different types of x-ray waveforms.

    Typical Applications
  • Measure effective dose.
  • Test mA and mAs linearity.
  • Verify mAs reproducibility.
  • Measure patient equivalent dose.
  • Calibration of x-ray generators.
  • Quality assurance.
  • Measurement of exposure time.
  • Radiation safety measurement.
  • Troubleshooting and repair of x-ray generators.
  • Maintain quality of x-ray.
  • Measure Half Value Layer.

  • Specifications
  • 1 mR to 2000 mR
  • 0.01mGy to 20 mGy
  • 10uGy to 20000uGy
  • DOSE ACCURACY: 5% +/- 1 mR
    EXPOSURE TIME ACCURACY: 1% +/- 1 millisecond - 20 to 5000 mS

  • 0.21" (5.5mm) Liquid Crystal
  • 2 line, 12 Character Alphanumeric
  • CONTROLS: On/Off - UNITS Switch
  • 9 Volt battery accessible from bottom of case
  • Low battery indicator
  • BATTERY LIFE: 120 hours continuous. Typically 1 year of "normal" use.
    WARRANTY: 2 years from ship date
    PHYSICAL SIZE: 3.15" x 5.8" x 1.6" (80 X 147 X 40 mm)
    WEIGHT: 0.81 lb (350 g)
    RECALIBRATION: Recommended Annually
  • +10° to 40° C
  • 50° to 104° F
  • Up to 75% relative humidity
  • Storage 0° to 50° C

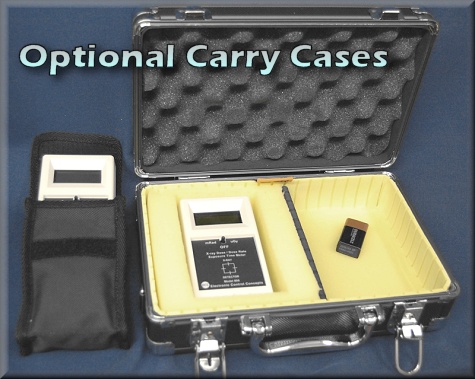

  • Carrying Case

    Two custom carrying cases are available, that will keep your instrument safe. A soft case which is a custom made protective case made of Cordura material, and a closable hard case with handle which has room for accessories and extra batteries inside.

    Stock #
    Your Price
    X-Ray Dose Meter and Exposure Time Meter.

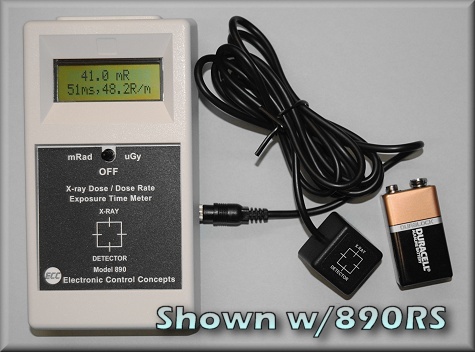

    Remote Sensor.
    Cost to Re-Calibrate the 890 instrument.
    Dental Kit Consisting of...
    One 815L (kVp & Time Meter) and One 890 mAs Meter.
