       X-Ray Output Detector.

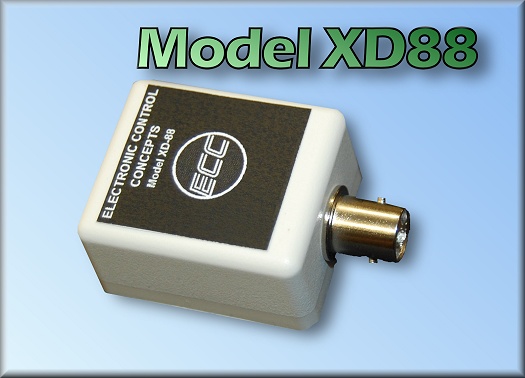

Electronic Control Concepts! The X-Ray Output Detector provides a means of calibrating and trouble shooting x-ray generators. The Detector output is designed to be connected directly to an oscilloscope. The x-ray waveform can be observed to find a wide variety of problems inherent in x-rays. X-ray waveforms can be documented by using a digital scope, a storage scope or an oscilloscope camera.

The detector is simply placed in the x-ray beam, then a cable is used to connect the detector to a standard oscilloscope. The resulting oscilloscope display represents the intensity-time relationship of the x-ray beam.

The detector is weighted to make it easy to place under the x-ray.

Features
  • Two Year Warranty
  • Optional BNC to BNC cable is available
  • Weighted enclosure
  • Compact Design

  • Applications
  • Measurement of Exposure Time
  • Quality Assurance
  • Verification of X-ray Operation
  • X-ray Calibration
  • Documentation
  • Troubleshooting and Repair of x-ray
  • - Exposure Time Calibration
    - Rectifier Problems
    - Contactor Problems
    - Loading Characteristics
    - Cable or Connector Arching
    - Shutter Calibration



    Specifications
    OUTPUT
  • 200 mV peak minimum
  • X-ray at 80 kVp, 100 mA, head 15 cm (6") above detector

  • MINIMUM OSCILLOSCOPE INPUT IMPEDANCE
  • 100k Ohms
  • Oscilloscope Impedance is typically 1 or 10 MOhm

  • PHYSICAL SIZE
  • 51 x 32 x 20 mm (2.0 x 1.25 x .8")

  • WEIGHT
  • 85g (3 oz)

  • OSCILLOSCOPE CONNECTION
  • via BNC to BNC cable

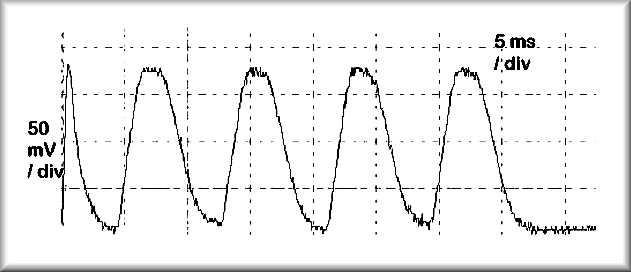

  • Sample Oscilloscope Trace
  • Full Wave X-ray
  • - 60 kV at 50 mA
    - 33 ms exposure

  • Trace was taken on Link Instruments MSO-19
  • Vertical - 50 mV per division
  • Horizontal - 5 ms per division





  • Stock #
    Description
    Your Price
    XD88
    X-Ray Detector
    $190.91
    XD88CABLE
    2.2 meter (7.5 foot)
    BNC to BNC cable.
    $60.00
