Pacific Northwest X-Ray Inc.

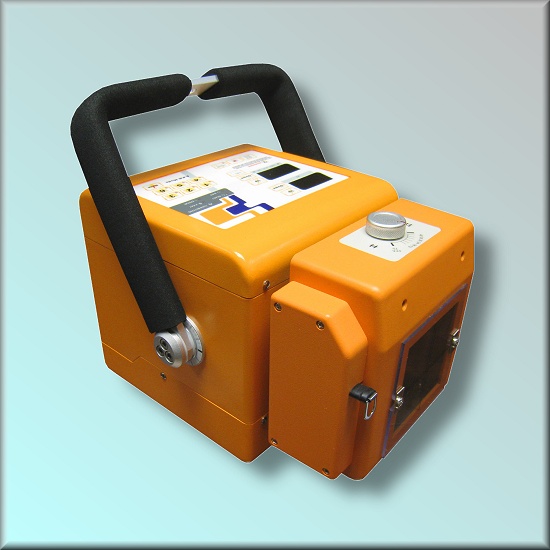

       The all NEW Ultra 10040HF Portable X-Ray Unit.


World's most powerful and light-weight 100kV unit, weighing in at only 25 lbs.
The Ultra 10040HF is the flagship of our lineup of new "Ultra-Light" portable X-ray units. With power ranging from 40-100 kV and up to a whopping 35 mA all powered from a standard 120v line, this barn-burner of a machine has enough power to shoot through stiffles, necks, shoulders and even large canines. Only 25 lbs., this unit weights 50% less than some older units with less power. It is the most compact sized, lightest, highest powered, 100kV Ultra Light on the market. Its highly efficient and portable design meets the most demanding needs of the small animal and equine veterinary practitioner. Features a reversible display, built in dual lasers, an exposure button on the control panel, automatic line compensation, 8 memory settings and much more!

FEATURES:
  • ULTRA-LITE: 25 lbs.
  • ULTRA-FAST: Stifles in .05 seconds
  • ULTRA-POWERFUL: 100kV / 40 mA
  • ULTRA-DETAIL: 1kV steps, 100mAs/40-100kV
  • ULTRA-ACCURATE: automatic line compensation
  • ULTRA-HIGH FREQUENCY: Twice as powerful as other units
  • ULTRA-PROGRAMMABLE: 16 Technique memory setting
  • ULTRA-EASY: Soft touch controls with digital displays
  • ULTRA-COLLIMATOR: Callibrated cassette size indicaotor dials
  • ULTRA-SMALL: 13.5"L X 7.5"W x 7"H


    • Complete with light beam collimator, carrying case, manual, and technique charts. Warranty is One Year, Parts and Labor. Customer must pay shipment to return the unit to the repair depot only.








    Features and Specs:
    Weight:25lbs (11.3kg)
    Cabinet Design-One piece with external collimator
    Output Power in KW-2.4kW
    X-ray Generator-High Frequency, 70kHz inverter type
    Digital Displays & Technique Selection-kV and mAs
    KvP minimum to maximum with step selection-40-100 kV, 1 kV step
    mAs min. to max. with 26 step selection-.3 to 100mAs
    Time minimum to maximum-.02 to 3 seconds in 23 steps
    mA Maximum-40 mA based on kVp selected
    Collimator-Cassette size indicator dials, lamp timer on during prep.,
    off upon exposure


    Features and Specs:
    Laser Pointer-Dual Integrated Laser Pointers
    Line Power Supply Compensation-Dynamic 2-Stage Automatic line voltage and current
    Line Power Supply Requirement-120 volts
    X-Ray Tube Manufacturer-Toshiba Model D-125 (Newest & Heaviest Available)
    Focal Spot-1.2mm
    Heating Unit:-50,000HU
    Cooling Speed-350HU/sec.
    Target Angle-16º
    X-Ray Beam Aluminum Filtration in mm-1mm Al equivalent @ 90kV
    Exposure Switch Two Stage Prep. Exposure-Hand Switch (Optional Foot Switch)
    Exposure Cord length-12 ft.
    Power Cord length-20 ft.
    Tape Measure-Heavy Duty
    Carry Case Size-10"H x 12"W x 18.5"L


    Stock #
    Description
    Your Price
    10040HF
    Portable X-Ray System
    $8,995.00
    VV-US
    Ultra Stand
    (See Below for more info)
    $795.00

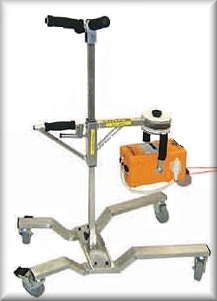

           Mobile Stand for Ultra Series HF Portables..
    The New Ultra-Stand mono-pod positioning aid. Versatile, convenient, and compact design, provides quick and easy mobilization in the field or at your facility. With the new Ultra Stand there is no need to hand hold your x-ray unit. This reduces scatter radiation to you and your staff no hand holding. Prevents motion which increases film detail.
  • Ultra-Light: weighs only 16 lbs with four locking casters
  • Ultra-Compact 38”L X 6”H X 12” taken apart
  • Ultra-Accurate Trigger release of vertical 1” movements
  • Ultra-Fast: Set-up and placement in minutes
  • Ultra-Range: X-ray beam positioned from ground level to 54” above based on 4 ft. post. (Other sizes available)
  • Ultra-Versatile, Supports most x-ray units from 14 -50 lbs.






    • Stock #
    Description
    Your Price
    VV-US
    Ultra Mobile Stand
    $795.00

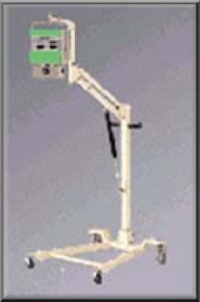

           Super Duty Mobile Stand for Ultra Series HF Portables..
    Two Swivel wheels for convenience of movement and two locking wheels for stationary positioning and location.

    Features:
  • Holds all sizes of portable x-ray units.
  • Max. travel range from floor: 72"
  • Horizontal arm extension: 22.8" to 31.9"
  • Horizontal rotation: 360'
  • Vertical rotation at tube axis:270'
  • Top = 22 Lbs.
  • Base = 39 Lbs.
  • Total Weight: 61 Lbs.
  • Stable up to 6 ft. high




    • Stock #
    Description
    Your Price
    VV-MS
    Super Duty Mobile Stand.
    $1,275.00
