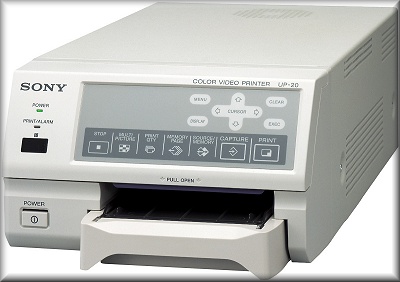

       Sony Model UP-20 Color Video Printer.


Sony Medical Systems Description

The UP-20 color printer successfully combines high quality with affordable pricing. The UP-20 prints near A6 sized color images in approximately 16 seconds (using UPC-21S media, in High Speed mode). The printer's new compact design allows for easy integration with other video equipment. The UP-20 is an ideal choice for the dental market, as well as, office or scientific lab applications.

Highlights

  • Superb print quality and color reproduction at approximately 400 dpi resolution
  • Compact Size


  • High-Speed Printing, near A6 Size
  • Four Frame Memory
  • Versatile Analog Video Inputs and Outputs
  • Convenient remote control capability
  • RS-232C Interface
  • 2 or 4 Split Image Print Mode
  • Monitor Loop-Through for System Power Saving
  • World Wide Power and Video Capability

    • Specifications

  • Printing Method: Dye Sublimation Printing




  • Thermal Head: 403 dpi

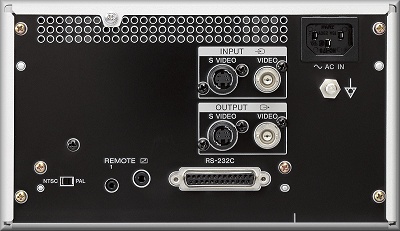

  • Inputs/Outputs: Video, S-Video
  • Power Consumption: 100-120V, 1.8A; 220-240V, 1.0A
  • Gradations: YMC Image process using 8 bits/256 gradations per color, approx. 16.7 M colors per pixel
  • Printing Paper Size: NTSC: S-Size, Full 3-3/4" x 2-7/8"; L-Size, Full 5" x 3-5/8"
  • Effective Print Pixels: NTSC: S-Size, 1524 x 976 dots; L-Size 2032 x 1452 dots
  • Picture Memory: 4 Frame Memory
  • Printing Time (High Speed Mode): NTSC: UPC-21S, 16 Seconds; UPC-21L, 25 Seconds
  • Dimensions: 8-3/8" x 5" x 15-5/8" (WHD)
  • Weight: Approx. 14 lbs., 5 oz.
  • Safety Standards: UL2601-1, CSA C22-2, No. 601.1, EN6061-1


    • Stock #
    Descripton
    Your Price
    UP-20
    Medical A6 Color Printer.
    $1,664.29
    UPC-21S
    "S" Sized Sony Print Media Package. (240 prints/pack)
    $143.00
    UPC-21L
    "L" Sized Sony Print Media Package. (200 prints/pack)
    $155.00
