| Sony's Medical Grade, ANALOG Color Printer. |
 |

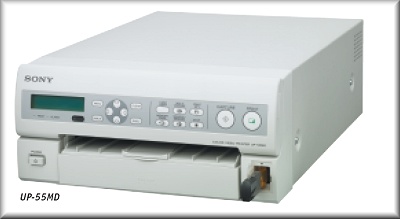

The Sony UP-55MD medical grade color video printer with it's slim design, offers a powerful new set of features never
seen before on a medical printer. This device is packed with performance, speed, durability and convenience. Identifying
with the changing needs of the medical marketplace, the UP-55MD printer adds a USB interface that allows the user to
capture still printed images and store them on a small, portable USB storage device, like the Sony MicroVault™* device.
Images can later be imported into a laptop or PC for medical reporting, PowerPoint® presentations, referrals, or
educational purposes. High resolution, near A5 size prints are created in approximately 20 seconds, and the new enhanced
memory helps to prevent prints from being lost in case of an error. The UP-55MD printer is an ideal choice for printing
in ultrasound or endoscopy modalities, as well as other medical and scientific applications. |
UP-55MD Specifications Printing Method: Dye Sublimation Resolution: 379 DPI Total Gradation: 256 gradations for yellow, magenta, cyan; over 167 million colors per dot Print Area: 2528 x 1920 dots (169.4 x 128.6mm) (1 up) Printing Time: High Speed: 20 seconds (approximate) Print Area: 6-3/4" x 5-1/8" (169.4 x 128.6mm) Paper Size: UPC-55, 7-1/8" x 6" (178 x 152mm) Media Capacity: 100 Sheets Power Requirements: 100-120V AC, 50/60Hz, 220-240V AC, 50/60Hz Max. Power Consumption: 100-120V: 2.8A, 220-240V: 1.2A I/O Interface: RGB + Sync, YCbCr Composite Video, S-Video Control Connectors: RS-232C (D-Sub 25 Pin Connector) Infrared remote-control command |  |
 | Remote 1: SARCS, RM5500 Remote 2: RM91/FS20 USB Host Port: USB Flash Memory* File Format: JPEG only Image File Size: approx. 1440 x 1080 dots (square pixel) approx. 300 KB (varies) Memory: 8 Frame Memory Dimensions: 280 x 125 x 398mm (w/h/d) 11-1/8 x 5 x 15-3/4 inches (w/h/d) (excluding projection parts) Weight: 9 kg (19 lb., 13 oz.) Compliance: UL-60601-1 Listed Supplied Accessories: UPC-55 Color Media (100 sheet starter pack and 1 ribbon) USB MicroVault storage media with 128MB capacity, Paper Tray, Ribbon Holder, AC Power Cord, Owner's Manual Optional Accessories: UPC-55 Media Print Pack 200 sheets (2 x 100 sheets and 2 x ribbons) USB Flash Memory storage devices** * Not all USB flash memory cards are compatible and image can only be loaded on PC or laptop. USB is uni-directional meaning images cannot be printed on printer from USB device. ** Sony Media Solutions Company offers many other USB MicroVault choices. |
 |
|
