       Sony's Medical Grade, DIGITAL Color Printer.

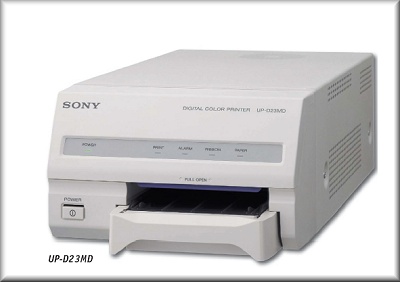

Sony Medical! The Sony UP-D23MD Digital Color Printer is the ideal choice for the endoscopy and ultrasound markets. At just 8-3/8" wide, the UP-D23MD will help to free up space on medical carts and will allow for easy integration. Although small in size, the UP-D23MD printer offers a wide variety of features including a USB 2.0 High Speed Interface for fast and efficient digital connectivity for many modalities, as well as convenient connection to a laptop or office PC. Using Sony's Dye Sublimation printing technology, the UP-D23MD produces near A6 size prints with approximately 400 dpi in less than 20 seconds.*

  • USB 2.0 High Speed Interface

  • Slim Compact Design - Ideal for Medical Carts; Easily Integrated

  • Excellent Print Quality with Sony's Dye Sublimation Printing Technology

  • Gray Balance Adjustment capability

  • High Speed Printing - 19 seconds using Sony Color Print Media - UPC-21S (High speed mode)

  • Resize-To-Fit feature allows user to enlarge image



  • World wide power capability

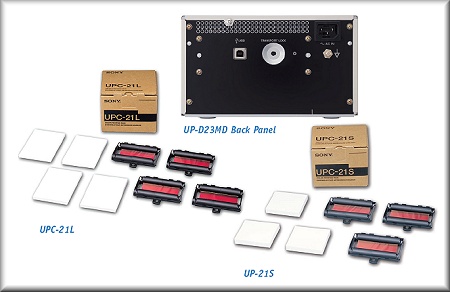

  • Convenient sizes of media - UPC-21S (3-3/4" x 2-7/8"); UPC-21L (5" x 3-5/8")


    • * With UPC-21S Media

    SPECIFICATIONS

    Print Method - Dye Sublimation
    Thermal Head - 403 DPI
    Gradations - YMC images process using 8 bits/256, gradations per color, approx. 16.77 million colors per pixel.
    Resolution - 403 DPI
    Printed Picture Size - NTSC: S Size: Full 3-3/4" x 2-7/8"; L Size: Full 5" x 3-5/8"
    Print Speed - NTSC: UPC-21S approx. 19 sec. (high speed mode); UPC-21L approx. 29 sec.
    Paper Capacity - S Size Tray: Max. 80 sheets; L Size Tray: Max. 50 sheets






    		Power Consumption - 100-120 Volts 1.8 A; 220-240 Volts 1.0 A
    Dimensions - 8-3/8" x 5" x 15-5/8" (WHD)
    Weight - 14.5 lbs
    Control Terminal - USB 2.0 High Speed Interface
    Media - UPC-21L (L size standard color print pack) (4 x 50 packs); UPC-21S (S size standard color print pack) (3 x 80 packs)
    Safety Standards - UL 1950 and UL 2601-1 Listed, CSA C22.2 No. 601.1, No. 950, EN60950, EN60601-1
    Supplied Accessories - AC Power Cable, Instruction Manual, Warranty Card, Paper Tray (L Size), Printing Media (UPC-21L, 50 sheets and 1 ribbon), CD-Rom (Printer Driver, ICC Profile), USB Cable
    Optional Accessories - Printing Media (UPC-21L, UPC-21S), Slide Adapter: (UPA-21SA)

    NOTE: Call for SPECIAL SALE PRICE on this item effective 3/10/09 through 5/10/09


    Stock #
    Description
    Your Price
    UP-D23MD
    Digital Color Printer
    $2,368.57
    UPC-21S
    "S" Sized Sony Print Media Package. (240 prints/pack)
    $143.00
    UPC-21L
    "L" Sized Sony Print Media Package. (200 prints/pack)
    $155.00
