Pacific Northwest X-Ray Inc.

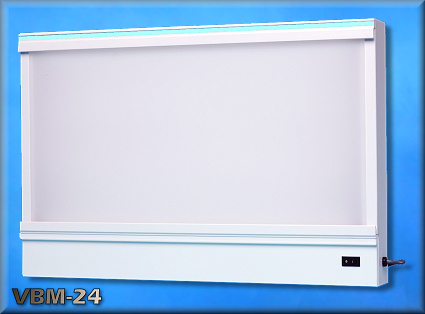

       Techno-Aide Mammography Illuminator.

Stock #
Viewing Panel Size.
Your Price
24cm X 30cm



  • Light source specifically designed to meet Mammography Viewing requirements.
  • Viewing capability two (2) side-by-side 24x30 films.
  • Note: NO shutter option on this unit.
  • Upper and Lower Film Grips.
  • Stand alone or use the keyhole slots for wall mounting.
  • Light intensity: 4,200 nits.
  • White powder coat finish.
  • ACR Approved!
  • UL listed.

  • 24 x 30mm Illuminator

  • For 24 x 30cm (10" x 12") Mammo film.
  • Includes four (4) 15-watt fluorescent lamps.
  • Overall size: 20-1/2"w x 3-1/2"d x 16-3/4"h.
  • Shipping weight: 17 lbs. (7.7kg).
