       Wolf Liberator Series Illuminators.
Wolf! X-Ray Corporation
What Makes Wolf's Liberator So Special?

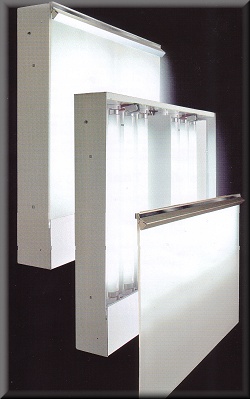

Unlike other illuminators that slide a piece of plexiglass underneath the film grip, Wolf's Liberator features a patented new process that actually attaches the grip to the plexiglass.

No more films slipping. No more grip adjustment. The tension between the plexiglass and the grip is factory pre-set and remains set even when the plexiglass is taken off the view-box!

What's more the entire plexiglass panel and grip assembly come off quickly and effortlessly with a simple pull. Wolf's Magna-Lock assembly holds the panels in place until you want to get inside. Now changing a light bulb is simple and painless. Want to dust the inside of the panel? No sweat. There's no screws to wrestle with. You don't even need a screwdriver!

It's Just That Easy!

Need to adjust your film activated auto switch? Not a problem! You're there in seconds. Whether it's installation, service or operation, the Liberator is at the top of the class.

The Liberator is available in two styles.

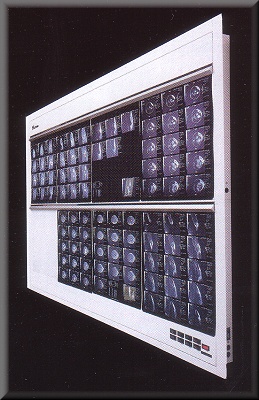

The Standard Liberator is a 4 bulb illuminator, available from a single 14" x 17" viewing area up to 2 tiers or 84" x 17" each. Wolf's Hi Lo version, available in the same sizes as the standard, features 6 bulbs per 14" x 17"







viewing area. Each 14" x 17" area of the Hi Lo can be dimmed to 4 bulbs at the press of a button.

Any model can be wall mounted in minutes with Wolf's E-Z Bar™ or beautifully recessed in a wall with Wolf's recessing kit.

A View Box that takes the hassles out of installation, service, maintenance, and comes with a film grip that won't ever let you down. Now that's Liberating!

Liberator Illuminator Series Specifications

Standard Features....
  • Plexiglass viewing area and film retainer lift off for easy interior access.
  • 4 bulbs per 14" x 17" viewing area.
  • Film activated auto switches.
  • Cluster switches and a master switch on 2 over 2 units and up.
  • Gravity roller grip film retainer.
  • Wolf's E-"Z" Bar™ for easy surface wall mounting.

  • Liberator Hi Lo Illuminator Series Specifications

    Standard Features....
  • Plexiglass viewing area and film retainer lift off for easy interior access.



  • Variable light intensities: (6 bulbs to 4 bulbs) per each 14" x 17" viewing area.
  • Film activated auto switches.
  • Cluster switches and a master switch on 2 over 2 units and up.
  • Gravity roller grip film retainer.
  • Wolf's E-"Z" Bar™ for easy surface wall mounting.

  • NOTE: Due to increased amperage necessary to operate 4 and 6 bulb illuminators, the Liberator series should have dedicated electric power lines.

    Optional Features for either Liberator Illuminator....
  • Hospital grade plug.
  • A frame for recessed mounting.

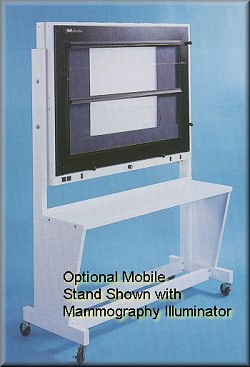

  • A mobile stand with wheels for portable uses.
  • Custom room installations.

  • Ordering Information
  • Use stock numbers to place your order.
  • If you want a recessed illuminator click here to order the appropriate Recessing Kit.

  • NOTE: Due to increased amperage necessary to operate 4 bulb illuminators, the LIBERATOR Hi-Lo and LIBERATOR series should have dedicated power circuit.





    Viewbox
    Configuration
    Liberator Plus
    4 Bulbs Per panel
    Automatic Switching.


    (Stock # / Your Price)
    Liberator Plus - Hi-Lo
    6 Bulbs Per panel
    Automatic Switching &
    Hi-Lo Switching.


    (Stock # / Your Price)
    Optional Recessed Mounting Kits
    Allow for "in-the-wall" mounting
    of Liberator Viewboxes.


    (Stock # / Your Price)
    Optional Mobile Stand

    (Stock # / Your Price)
    Single Unit
    22801 / $382.15
    22901 / $399.77
    21701 / $49.85
    N/A
    2 Bank Unit
    22802 / $763.08
    22902 / $799.15
    21702 / $71.85
    21504MS-2 / $909.38
    3 Bank Unit
    22803 / $1,144.77
    22903 / $1,198.54
    21703 / $93.38
    21504MS-3 / $959.62
    4 Bank Unit
    22804 / $1,525.69
    22904 / $1,597.92
    21704 / $115.00
    21504MS-4 / $994.15
    5 Bank Unit
    22805 / $1,907.46
    22905 / $1,997.69
    21705 / $136.92
    21504MS-5 / $1,058.08
    6 Bank Unit
    22806 / $2,288.00
    22906 / $2,397.00
    21706 / $158.54
    21504MS-6 / $1,097.31
    1 Over 1
    22811 / $763.08
    22911 / $799.15
    21711 / $71.85
    N/A
    2 Over 2
    22822 / $1,525.69
    22922 / $1,598.31
    21722 / $108.31
    21504MS-22 / $914.08
    3 Over 3
    22833 / $2,288.00
    22933 / $2,397.00
    21733 / $140.85
    21504MS-33 / $968.23
    4 Over 4
    22844 / $3,050.62
    22944 / $3,195.77
    21744 / $173.46
    21504MS-44 / $1,002.77
    5 Over 5
    22855 / $3,813.23
    22955 / $3,989.38
    21755 / $206.38
    21504MS-55 / $1,066.31
    6 Over 6
    22866 / $4,575.54
    22966 / $4,793.23
    21766 / $238.92
    21504MS-66 / $1,105.92

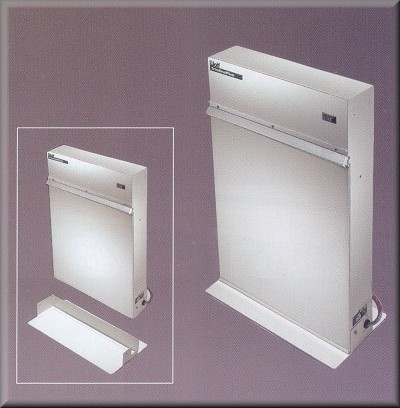

           Liberator Desk Stand.


    Wolf! X-Ray Corporation
    If you're using your Trimline Viewbox on a desk, then you need Wolf's new Trimline Desk Stand! The Trimline Desk Stand provides great stability and prevents rocking during film loading. And, it attaches in seconds, all you need is a screwdriver.

    The New Trimline Desk Stand works with all Trimline and Liberator models. Each Desk Stand holds a single 14" x 17" Trimline. Note, the Trimline Desk Stand is made for Wolf Viewboxes only and is not intended for use with any other type or brand of Viewbox.


    Stock #
    Your Price
    21507
    $37.31
