Pacific Northwest X-Ray Inc.

       Wolf Trimline 51, 14"x51" Full Spine Illuminator.
Wolf! X-Ray Corporation

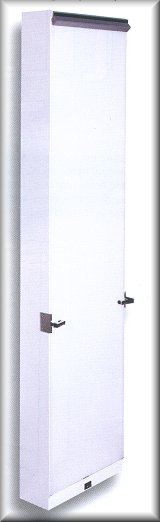

Trimline 51

Designed for the 14 x 51" x-ray format, the Trimline 51 provides 3 bulb (30 watts each) illumination, roller grip film retainer, an 8' line cord with 3 prong plug and rocker switch. The 51 is constructed from welded steel finished in white baked enamel with a plexiglass screen. Wolf's E-"Z" Barô is provided for easy wall mounting.

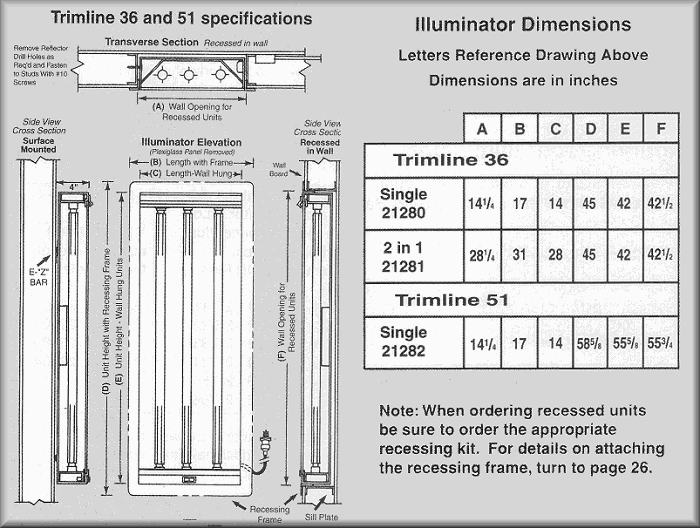

Specifications: Follow dimensions in the drawing and table shown here.
Note: For recessed units, order the "Recessing Kit", use dimensions shown in the drawing for wall opening.
Approx. Shipping Weight: 70 lbs.

Trimline 51 Plus

Features all the above but includes 4 bulbs per viewing area and film activated switching.


Stock #
Description
Bulbs
Your Price
29282
14" x 51" Trimline 51 Spinal Illuminator
3
$541.00
28282
14" x 51" Trimline 51 Spinal Plus Illuminator
4
$560.23
29782
Recessing Kit (Frame)
N/A
$81.23
