Pacific Northwest X-Ray Inc.

       Wolf's inSight Thin Viewbox.


Wolf! X-Ray Corporation
The new InSight Illuminator utilizes LCD TV technology to bring you an x-ray viewbox with a uniquely even light surface in a super-thin cabinet. Projecting two inches from the wall, it is so thin that there is no 'recessed' version manufactured.

Available as a single unit, two in one and four in one each panel accomodates up to one 14x17" x-ray. A rocker switch on the right side of the unit turns the viewing surface on and off, and an auto switch is incorporated in the film grip that automatically turns the unit on when a film is inserted.


All InSight viewboxes come with a one year warranty covering defects in materials and workmanship.



Specifications:
  • Average Brightness: Approx. 5,000 Cd/m2±10%
  • Light Source: E.E.F.L. (External Electrode Fluorescent Lamp)
  • Lamp Life Time: Approx. 20,000 hours
  • Film Clip: Rolling Bar
  • Input Power: 120 Vac (50Hz)
  • Power Supply: Built In
  • Use Place: Indoor
  • Operating Temp.: 10șC - 40șC
  • Storage Temp.: -15șC - 60șC
  • Mounting Type: Wall Mount only
  • Safety Agency: UL/CE/FCC





  • Stock #
    Viewbox
    Configuration
    Frame
    Film Capacity
    Viewing Area
    Power
    Consump.
    Light Source
    Shipping
    Weight
    Your Price

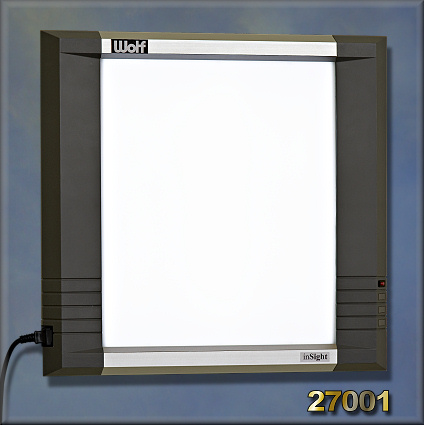

    27001
    Single Unit
    21"x19-5/8"x1-5/8"
    525x515x40mm
    14"x17"
    1 pc.
    14-1/8"x17"
    360x427mm
    70W max.
    EEFL16 lamps
    can change without Notice
    11 Lbs.
    $472.77

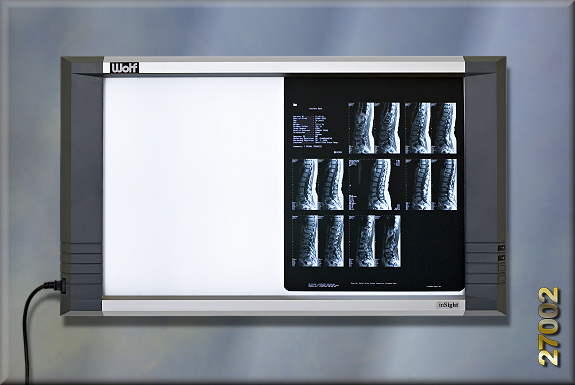

    27002
    2 Bank Unit
    35"x19-5/8"x1-5/8"
    888x515x40mm
    14"x17"
    2 pc.
    28"x17"
    712x427mm
    140W max.
    EEFL32 lamps
    can change without notice
    16 Lbs.
    $881.92

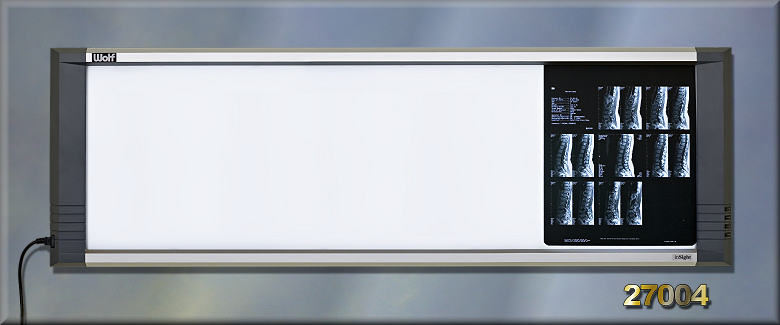

    27004
    4 Bank Unit
    63"x19-5/8"x1-5/8"
    1591x515x40mm
    14"x17"
    4 pc.
    56"x17"
    1416x427mm
    280W max.
    EEFL64 lamps
    can change without notice
    28 Lbs.
    $1,706.15
