Pacific Northwest X-Ray Inc.

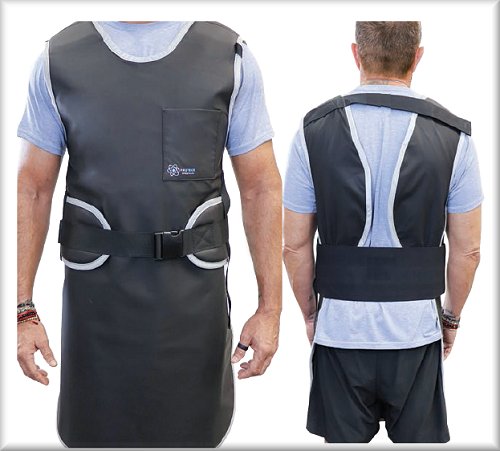

       PNWX ProLite Elite Back Relief Apron.


PNWX Elite Products! Designed to transfer the weight from the shoulders to the hips. The apron features a unique padded belt system constructed with a bonded elasticized panel. This 6 inch belt is permanently attached to the apron on one side.

The stretch proof panel will not lose its shape while providing increased comfort and back support through the life of the apron. Extra thick shoulder pads, chest pocket and shoulder strap are standard.


  • Protection: 0.50mm front
  • Closures: Velcro/Quick Release Buckle
  • Available in Lightweight/Lead Free Protection only.

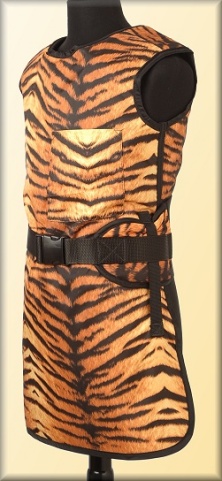

    • Shown in "Tiger" Fabric (Discontinued, No Longer Available)

    Weight of a medium is appoximately 8 lbs.

    Need a Thyroid Collar, Carry Bag, or Rack to go with this apron?





    Stock #
    Gender
    Size
    Chest
    Length
    Dress
    Size
    Width
    Your Price
    APBRF-XS
    FEMALE
    X-Small
    33"
    33"
    2-4
    19"
    $248.57
    APBRF-S
    FEMALE
    Small
    35"
    34"
    6-8
    20"
    $248.57
    APBRF-M
    FEMALE
    Medium
    37"
    36"
    8-10
    21"
    $248.57
    APBRF-L
    FEMALE
    Large
    40"
    38.5"
    12-14
    22
    $248.57
    APBRF-XL
    FEMALE
    X-Large
    43"
    40.5"
    16-18
    23
    $248.57
    APBRF-XXL
    FEMALE
    XX-Large
    46"
    N/A
    18-20
    24
    $248.57
    APBRM-S
    MALE
    Small
    39"
    34"
    N/A
    21
    $248.57
    APBRM-M
    MALE
    Medium
    42"
    37"
    N/A
    22
    $248.57
    APBRM-L
    MALE
    Large
    46"
    40.5"
    N/A
    24
    $248.57
    APBRM-XL
    MALE
    X-Large
    50"
    42.5"
    N/A
    26
    $248.57




    General Information about our ProLite Elite Non-Lead Shielding Products.

  • A lightweight 0.5mm lead free shielding material.
  • Environmentally safe.
  • Equivalent in shielding/protection to 0.50mm Pb (pure lead) at 100 kVp - which is the normal protection level of medical lead aprons. See below for actual tests on this material.

    • Warranty: ProLite Elite Aprons are made with the highest quality materials available, and we proudly stand behind them with a full guarantee on defects on workmanship and materials for two years following the date of purchase. This warranty does not cover damage caused by abuse, neglect or use in non-medical/intended uses.

    Fabric and Color Selections.

    Monogramming Samples.
    Optional Apron Accessories.
    Stock #
    Option Description
    Your Price
    APEMB
    Embroidery (Up to two lines),
    BLOCK or Script
    $25.00
    APSLV
    Apron Sleeve, Attachable
    $68.58
    DRSH
    Drop Shoulder-can be added to any of our
    apron designs for easy removal
    $25.00
    APLOGO
    Embroidered Custom Logo
    $Call
    APEPK
    Extra (second) Pocket
    $25.00


    Comparsion of X-Ray Protection between our
    Pro-Lite Elite Protection and Standard Lead Vinyl
    Measured Percentage of
    Direct Beam Attenuation
    Sample
    Designation
    Production
    Lot Number
    Number of Lead Vinyl
    Plys to obtain 0.5mm Pb
    60 kVp
    80 kVp
    100kVp
    120kVp
    Prolite Elite
    No-Lead Protection
    06825
    3
    99.70 %
    98.42 %
    96.14 %
    92.85 %
    Standard
    Lead Vinyl
    06714
    2
    99.82 %
    98.49 %
    96.55 %
    95.70 %
    Measured Half Value Layer (HVL)
    3.0
    mmAl
    4.0
    mmAl
    5.2
    mmAl
    6.3
    mmAl
