       PNWX ProLite Maternity Apron.

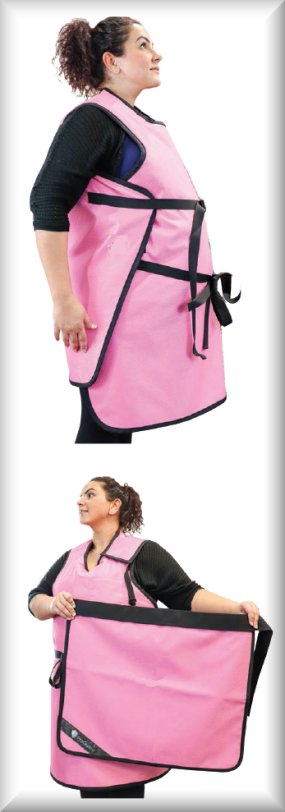

PNWX Elite Products! The Wraparound Flexback Maternity apron combines the best qualities of our flexback apron with the full protection and back support of our wraparound flexback apron. The elastic stretch-back shifts weight from your shoulders to your hips while the tri-tab velcro closure system provides convenient, easy-on easy-off wearability. In addition, the 6” wide frontal velcro allows the wearer to adjust the crossties up or down to account for mom’s growing belly. The Wrap Around Flexback eliminates excess overlapping lead and is up to 15% lighter than traditional wrap styles.

Protection: 0.50mm front
Closure: Hook-N-Loop

Do You Need a Thyroid Collar, Carry Bag, Cleaner/Sanitizer Sprays, or Storage Rack to go with this apron?

Please note: When determining your size, choose according to your Pre-Pregnancy size!

For PRINT nylon fabric color options:

 Solid Nylons, Ripstop and Vinyl fabric color options:



Stock #
Size at
Pre-Pregnancy
Description
Dress
Size
Your Price





AP-MAWAPR-SM
Pre-Pregnancy: Small
PREMIERE LeadFree Lightest Weight
6-8
$922.00
AP-MAWAPR-MD
Pre-Pregnancy: Medium
PREMIERE LeadFree Lightest Weight
8-10
$990.00
AP-MAWAPR-LG
Pre-Pregnancy: Large
PREMIERE LeadFree Lightest Weight
12-14
$1,106.00
AP-MAWAPR-XL
Pre-Pregnancy: X-Large
PREMIERE LeadFree Lightest Weight
16-18
$1,165.00





AP-MAWALF-SM
Pre-Pregnancy: Small
ProLite LeadFree
6-8
$797.00
AP-MAWALF-MD
Pre-Pregnancy: Medium
ProLite LeadFree
8-10
$855.00
AP-MAWALF-LG
Pre-Pregnancy: Large
ProLite LeadFree
12-14
$936.00
AP-MAWALF-XL
Pre-Pregnancy: X-Large
ProLite LeadFree
16-18
$991.00




General Information about our ProLite Elite Non-Lead Shielding Products.

  • A lightweight 0.5mm lead free shielding material.
  • Environmentally safe.
  • Equivalent in shielding/protection to 0.50mm Pb (pure lead) at 100 kVp - which is the normal protection level of medical lead aprons. See below for actual tests on this material.

    • Warranty: ProLite Elite Aprons are made with the highest quality materials available, and we proudly stand behind them with a full guarantee on defects on workmanship and materials for one year following the date of purchase. This warranty does not cover damage caused by abuse, neglect or use in non-medical/intended uses.

    New in 2023: NANO !
  • Weight: 33% lighter than lead, 2300 gsm @ 0.25mm
  • Composition: Cerium, Antimony, Rare earths, Plasticizers
  • Certifications: ASTM Certified
    • Weighing in at 32% lighter than lead, Nano is takes the stage as our lightest core material. Made from Tungsten and/or trade secret rare earths, Nano is highly flexible and is a fantastic option for those needing a ultra lightweight option. It is certified to ASTM testing standards.

    Monogramming Samples.

    How to Measure for your New Apron.
    Optional Apron Accessories.
    Stock #
    Option Description
    Your Price
    AP-EMB0
    Embroidery 1 Line
    Specify: Above pocket
    22 Spaces Max.
    $25.00
    AP-EMB3
    Embroidery 1 Line
    On Thyroid Collar
    8 Spaces Max.
    $16.00
    AP-POLYS
    "POLY" Fabric Upgrade, Frontal Apron
    $50.00
    APSLV
    Apron Sleeve, Attachable
    specify snap or permanently sewn on
    $150.00
    APDRSH
    Drop Shoulder (for both shoulders)
    Can be added to any of our
    aprons for easy removal
    $35.00
    APDIGI
    Digitize Your Company/Team Logo
    If highly detailed or more than 2 colors, call for pricing
    Call to see if already templated.
    If so, just need "APLOGO" fee per location.
    $125.00
    APLOGO
    Embroidered Custom Logo
    Per Placement
    $Call
    AP-BSTRP
    Add "Back-Strap"
    $15.00
    AP-LUXFRONT
    Fabric Upgrade Frontal Aprons
    $35.00
    AP-LUXFULL
    Fabric Upgrade Wraps and Vest/Skirt Sets
    $60.00

    Comparsion of X-Ray Protection between our
    Pro-Lite Elite Protection and Standard Lead Vinyl
    Measured Percentage of
    Direct Beam Attenuation
    Sample
    Designation
    Production
    Lot Number
    Number of Lead Vinyl
    Plys to obtain 0.5mm Pb
    60 kVp
    80 kVp
    100kVp
    120kVp
    Prolite Elite
    No-Lead Protection
    06825
    3
    99.70 %
    98.42 %
    96.14 %
    92.85 %
    Standard
    Lead Vinyl
    06714
    2
    99.82 %
    98.49 %
    96.55 %
    95.70 %
    Measured Half Value Layer (HVL)
    3.0
    mmAl
    4.0
    mmAl
    5.2
    mmAl
    6.3
    mmAl
