PNWX ProLite Elite Standard Vest-Skirt Apron.

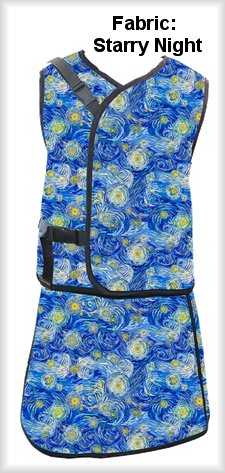

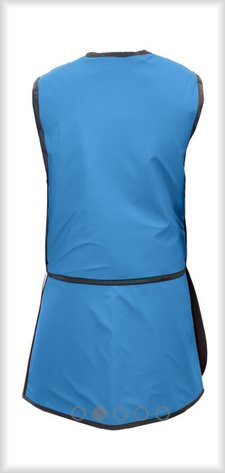

The "Balance" Vest and Skirt are the preferred choice for complete protection and weight distribution. The two piece design shifts 70% of the weight directly to the hips reducing back fatigue. Double padded shoulders for maximum comfort. Chest pocket standard. Please note: Where there is overlap on the front, your protection increases to .50mm. Available in TWO Lightweight/Lead Free Protection Options. ProLite Medium is approximately 7.16# vs a NANO Medium @ approximately 5.87# Protection: 0.25mm front panels w/.50mm at overlap / 0.25mm back Closures: Hook & loop fastener and Buckles. Front (left) shown here in "Starry Night". Back (right) in #135 Marine Blue. Do You Need a Thyroid Collar, Carry Bag, Cleaner/Sanitizer Sprays, or Storage Rack to go with this apron? For PRINT nylon fabric color options: Solid Nylons, Ripstop and Vinyl fabric color options: For sizing details click here to enlarge:

VEST ONLY Gender & Size LeadFree Prolite (Stock # / Your Price) LeadFree Ultra Lightweight/Flexible NANO (Stock # / Your Price) FEMALE X-Small AP-VLF-FXS / $305.00 AP-VNA-FXS / $369.00 FEMALE Small AP-VLF-FSM / $324.00 AP-VNA-FSM / $394.00 FEMALE Medium AP-VLF-FMD / $344.00 AP-VNA-FMD / $422.00 FEMALE Large AP-VLF-FLG / $368.00 AP-VNA-FLG / $461.00 FEMALE XL AP-VLF-FXL / $408.00 AP-VNA-FXL / $498.00 FEMALE 2XL AP-VLF-F2X / $435.00 AP-VNA-F2X / $540.00 FEMALE 3XL AP-VLF-F3X / $515.00 AP-VNA-F3X / $639.00     Male X-Small AP-VLF-MXS / $315.00 AP-VNA-MXS / $382.00 Male Small AP-VLF-MSM / $333.00 AP-VNA-MSM / $399.00 Male Medium AP-VLF-MMD / $352.00 AP-VNA-MMD / $429.00 Male Large AP-VLF-MLG / $383.00 AP-VNA-MLG / $469.00 Male XL AP-VLF-MXL / $419.00 AP-VNA-MXL / $519.00 Male 2XL AP-VLF-M2X / $450.00 AP-VNA-M2X / $555.00 Male 3XL AP-VLF-M3X / $530.00 AP-VNA-M3X / $655.00     22 digits/One Line Embroidery-on Apron APEMB0 / $25.00   8 digits Embroidery-on Collar APEMB3 / $15.00

SKIRT ONLY Gender & Size LeadFree Prolite (Stock # / Your Price) LeadFree Lightweight/Flexible NANO (Stock # / Your Price) MALE X-Small AP-SKIRTLF-MXS / $350.00 AP-SKIRTNA-MXS / $415.00 MALE Small AP-SKIRTLF-MSM / $360.00 AP-SKIRTNA-MSM / $425.00 MALE Medium AP-SKIRTLF-MMD / $365.00 AP-SKIRTNA-MMD / $430.00 MALE Large AP-SKIRTLF-MLG / $392.00 AP-SKIRTNA-MLG / $495.00 MALE XLarge AP-SKIRTLF-MXL / $440.00 AP-SKIRTNA-MXL / $525.00 MALE 2XL AP-SKIRTLF-M2X / $425.00 AP-SKIRTNA-M2X / $550.00 MALE 3XL AP-SKIRTLF-M3X / $495.00 AP-SKIRTNA-M3X / $593.00         FEMALE X-Small AP-SKIRTLF-FXS / $340.00 AP-SKIRTNA-FXS / $399.00 FEMALE Small AP-SKIRTLF-FSM / $345.00 AP-SKIRTNA-FSM / $415.00 FEMALE Medium AP-SKIRTLF-MMD / $365.00 AP-SKIRTNA-FMD / $455.00 FEMALE Large AP-SKIRTLF-FLG / $380.00 AP-SKIRTNA-FLG / $460.00 FEMALE XLarge AP-SKIRTLF-FXL / $425.00 AP-SKIRTNA-FXL / $505.00 FEMALE 2XL AP-SKIRTLF-F2X / $445.00 AP-SKIRTNA-F2X / $530.00 FEMALE 3XL AP-SKIRTLF-F3X / $485.00 AP-SKIRTNA-F3X / $575.00     22 digits/One Line Embroidery-on Apron APEMB0 / $25.00   8 digits Embroidery-on Collar APEMB3 / $15.00

General Information about our ProLite Elite Non-Lead Shielding Products.

A lightweight 0.5mm lead free shielding material.

Environmentally safe.

Equivalent in shielding/protection to 0.50mm Pb (pure lead) at 100 kVp - which is the normal protection level of medical lead aprons. See below for actual tests on this material.

Warranty: ProLite Elite Aprons are made with the highest quality materials available, and we proudly stand behind them with a full guarantee on defects on workmanship and materials for one year following the date of purchase. This warranty does not cover damage caused by abuse, neglect or use in non-medical/intended uses.

New in 2023: NANO !

Weight: 33% lighter than lead, 2300 gsm @ 0.25mm

Composition: Cerium, Antimony, Rare earths, Plasticizers

Certifications: ASTM Certified

Weighing in at 32% lighter than lead, Nano is takes the stage as our lightest core material. Made from Tungsten and/or trade secret rare earths, Nano is highly flexible and is a fantastic option for those needing a ultra lightweight option. It is certified to ASTM testing standards.

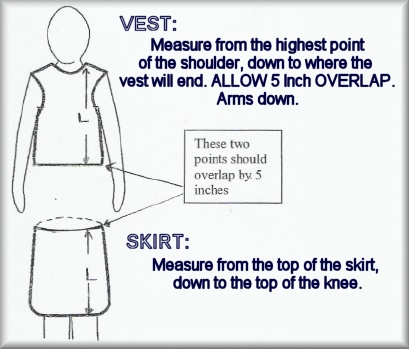

Monogramming Samples. How to Measure for your New Apron.

Optional Apron Accessories.

Stock # Option Description Your Price AP-EMB0 Embroidery 1 Line Specify: Above pocket 22 Spaces Max. $25.00 AP-EMB3 Embroidery 1 Line On Thyroid Collar 8 Spaces Max. $16.00 AP-POLYS "POLY" Fabric Upgrade, Frontal Apron $50.00 APSLV Apron Sleeve, Attachable specify snap or permanently sewn on $150.00 APDRSH Drop Shoulder (for both shoulders) Can be added to any of our aprons for easy removal $35.00 APDIGI Digitize Your Company/Team Logo If highly detailed or more than 2 colors, call for pricing Call to see if already templated. If so, just need "APLOGO" fee per location. $125.00 APLOGO Embroidered Custom Logo Per Placement $Call AP-BSTRP Add "Back-Strap" $15.00 AP-LUXFRONT Fabric Upgrade Frontal Aprons $35.00 AP-LUXFULL Fabric Upgrade Wraps and Vest/Skirt Sets $60.00

Comparsion of X-Ray Protection between our
Pro-Lite Elite Protection and Standard Lead Vinyl

			Measured Percentage of Direct Beam Attenuation
Sample Designation	Production Lot Number	Number of Lead Vinyl Plys to obtain 0.5mm Pb	60 kVp	80 kVp	100kVp	120kVp
Prolite Elite No-Lead Protection	06825	3	99.70 %	98.42 %	96.14 %	92.85 %
Standard Lead Vinyl	06714	2	99.82 %	98.49 %	96.55 %	95.70 %
Measured Half Value Layer (HVL)			3.0 mmAl	4.0 mmAl	5.2 mmAl	6.3 mmAl

---
